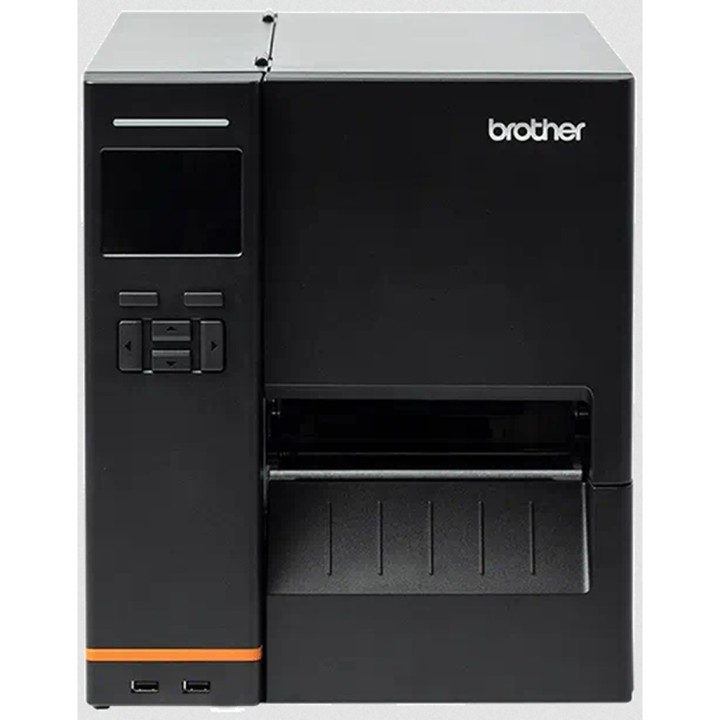

BROTHER Industrial thermal transfer label printer TJ-4420TN 203PPP-USB-ETHERNET MGS0000001570

Features of the professional label printer with thermal transfer and colour LCD screen
This professional label printer is designed for work environments that require high performance, high consumables capacity and flexible integration with different systems. Thanks to its thermal transfer and direct thermal technology, speeds of up to 356 mm per second and compatibility with several printing languages, it is an ideal solution for logistics, warehousing, industry, retail and high-volume professional labelling applications.
High-performance printing for demanding environments
One of this printer’s key strengths is its ability to maintain a very high work rate without compromising stable, precise printing. Its speed of up to 356 mm per second, equivalent to 14 ips, makes it an excellent choice for businesses that need to print labels continuously and efficiently.

Standard print speed of 356 mm per second
203 dpi resolution
Maximum print width of 104 mm
Maximum print length of 25,400 mm

Thermal transfer and direct thermal technology
The combination of thermal transfer and direct thermal printing offers great versatility. It allows you to work with both thermal labels and ribbon, which is especially useful when more durable labels or better adaptability to different types of professional applications are required.

Thermal transfer and direct thermal printing technology
Suitable for durable labelling using ribbon
Designed for different professional environments

Wide format for large labels
This printer is designed to handle large-format labels, which is especially practical for shipping, product identification, traceability or logistics labelling. Its ability to print on wide media makes it easier to display more information and improve content visibility.

Maximum label width of 114 mm
Print width of up to 104 mm
Integrated label detection sensor

High ribbon capacity and side-loading consumables
Its compatibility with high-capacity 600-metre ribbon helps reduce the frequency of consumable replacement, which is highly valuable in high-volume printing environments. In addition, side-loading consumables simplifies daily maintenance and contributes to more convenient and efficient use.

Compatible with 600 m high-capacity ribbon
Side loading of consumables
Designed to reduce interruptions during intensive tasks

Professional connectivity for flexible integration
The printer offers multiple connectivity options, which is particularly important for businesses that need to integrate it into different workstations or management systems. USB, dual USB host, serial port and wired network connectivity make it easy to deploy with both individual devices and shared infrastructures. In addition, wireless connectivity can be added using an optional accessory.

USB Ver.2.0 Hi Speed interface
Dual USB host
RS232C Serial port with DB9 female connector
Wired network interface 10/100BASE-TX
WiFi and Bluetooth available via optional accessory

Color LCD screen for easier operation
The color LCD screen improves the user experience and makes it easier to check the device status and configure the main functions. This feature is particularly useful in professional environments where more visual and direct operation is required.

Integrated color LCD screen
Power and feed buttons
LED indicators for power, status and errors

Compatibility with multiple print languages
Compatibility with FBPL-EZD and widely used languages in the industry makes it easy to integrate this printer into existing environments. This allows it to be adapted to different business applications without having to completely change the printing infrastructure.

Supported commands: FBPL-EZD
COMPATIBLE WITH EPL2
COMPATIBLE WITH ZPL2
Compatible with DPL

BarTender software and development kit for professional environments
The device includes BarTender Ultra Lite Edition software, available for download, a very practical tool for designing labels and adapting their content to different business needs. It also features an SDK, expanding its integration possibilities in custom developments and solutions.

BarTender Ultra Lite Edition label design software included via download
SDK or software development kit available
Ready for integration into professional solutions

Wide compatibility with 1D barcodes and 2D
This printer supports a very wide range of barcode symbologies, making it an excellent choice for traceability, inventory, shipping, commercial identification or technical labelling applications. Its compatibility allows it to be adapted to different needs without relying on a single symbology.

Supported one-dimensional symbologies: Code128UCC, Code128 subsets ABC, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Standard 2 of 5, Industrial 2 of 5, Code39, Code39 with check digit, Code93, EAN13, EAN8, UPCA, UPCE, EAN and UPC add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, EAN14, Code11, TELEPEN, TELEPENN number, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode and LOGMARS
Supported two-dimensional symbologies: CODABLOCK F mode, GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417 and TLC 39
Ready for professional identification and traceability applications

Resident fonts and internal capacity for intensive use
Its internal configuration combines 512 MB of Flash RAM and 256 MB of RAM, providing a suitable foundation for working with complex designs and demanding workloads. It also includes resident fonts to facilitate label design and printing from different environments.

Flash RAM of 512 MB
RAM 256 MB
8 FBPL bitmap alphanumeric fonts
Monotype Image True font engine with scalable CG Triumvirate Bold Condensed font
Available resident fonts

Compatibility with multiple operating systems and devices
The printer can be integrated into working environments with different platforms, making it easy to use in companies with varied infrastructure. This compatibility makes it especially versatile for technical teams, workstations and solutions connected to different devices.

Compatible with Linux
Compatible with Mac OS X 10.11.x or later
Compatible with Windows Server 2012, Server 2012R2, Server 2016, Server 2019, Windows 7, Windows 8.1 and Windows 10
Compatible with Android v5 or later
Compatible with iOS 9 or later

Robust design for professional environments
Its design is intended to provide a solid presence at the workstation and good stability during continuous use. This configuration is suitable for packing tables, logistics environments, warehouses or production areas where robust equipment that is always available is required.

Dimensions without packaging: 276 mm wide x 326 mm high x 502 mm deep
Weight: 15,35 kg

Ready to install and use straight away
The device includes the items needed for setup, making installation quick and allowing it to be put into operation without complications. This is especially useful for companies that need to integrate the device into their operations immediately.

Power cable included
USB cable included
Quick setup guide included
BarTender Ultra Lite Edition label design software available for download

Optional accessories to expand functionality
This printer can be better adapted to different usage scenarios thanks to a range of optional accessories designed to improve automation and label handling. This makes it possible to tailor it to more specific needs in a professional environment.

PALP006 peeler with liner rewinder
Cutter PACU005
WiFi and Bluetooth module PAWB001
Accessories marked require installation by a specialist technical service provider

Compatible consumables for different applications
The printer supports a wide range of ribbons and thermal transfer labels, allowing the final result to be tailored to different requirements for durability, finish and workload. This versatility is especially valuable in professional applications with specific requirements.

Standard wax ribbon BWS1D600110, 110 mm x 600 m
Premium wax ribbon BWP1D600110, 110 mm x 600 m
Standard wax/resin ribbon BSS1D600110, 110 mm x 600 m
Premium wax/resin ribbon BSP1D600110, 110 mm x 600 m
Standard resin ribbon BRS1D600110, 110 mm x 600 m
Premium resin ribbon BRP1D600110, 110 mm x 600 m
Standard wax ribbon BWS1D450110, 110 mm x 450 m
Premium wax ribbon BWP1D450110, 110 mm x 450 m
Standard wax/resin ribbon BSS1D450110, 110 mm x 450 m
Premium wax/resin ribbon BSP1D450110, 110 mm x 450 m
Standard resin ribbon BRS1D450110, 110 mm x 450 m
Premium resin ribbon BRP1D450110, 110 mm x 450 m
Matte-finish thermal transfer labels BUS1J074102203, 102 x 74 mm, with 2,940 labels
Matte-finish thermal transfer labels BUS1J150102203, 102 x 150 mm, with 1,500 labels
Semi-gloss-finish thermal transfer labels BCS1J074102203, 102 x 74 mm, with 2,900 labels
Semi-gloss-finish thermal transfer labels BCS1J150102203, 102 x 150 mm, with 1,440 labels

Warranty and other specifications
The offering is rounded out with a standard 3-year warranty, an important added value for businesses and professionals seeking continuity and peace of mind in their investment.

Standard 3-year warranty
Compatible with BarTender software
Expandable connectivity with WiFi and Bluetooth via optional accessory
Designed for high-volume professional labelling
Volume (m ³): 0.0452
