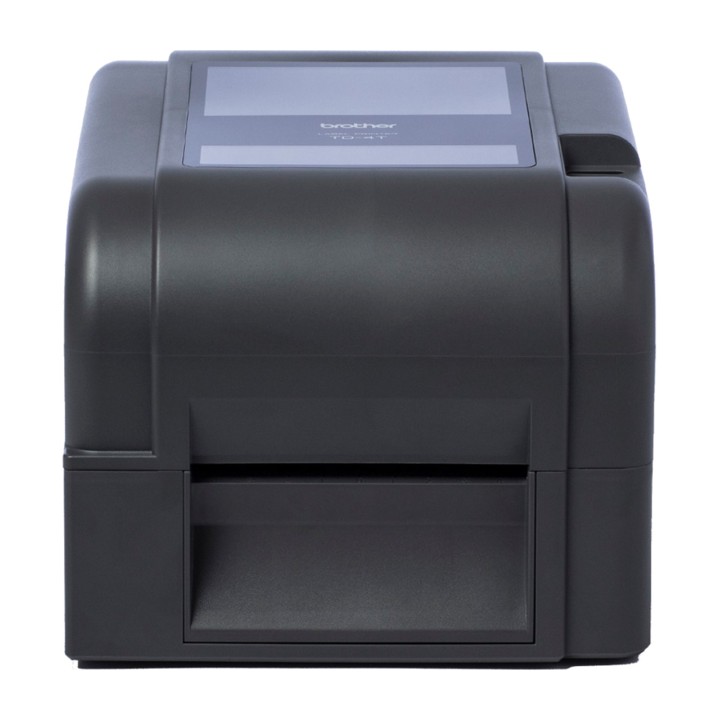

BROTHER Thermal transfer label printer TD-4520TN 300PPP-USB-ETHERNET MGS0000001256

MAIN FEATURES

Thermal transfer and direct thermal technology, resolution 300
dpi, USB connection, wired network, Serial and USB host
Includes Bartender label/barcode editing software
UltraLite Edition
The Serial port allows system integrators to print labels
with barcodes and images
Supported languages: EPL, ZPL, ZPL2 and DPL
Supports thermal paper and self-adhesive labels for different
FITS
Durable labelling with ribbon printing

Functions and specifications
General - Label Printers
Maximum label width (mm) 112
Feed buttons
Database upload from PC: Yes
flash RAM 128 MB
Case colour: Black
Image upload from PC: Yes
Languages: Danish, German, English, Spanish, French, Italian, Dutch,
Norwegian, Portuguese, Finnish, Slovenian
LEDs: Power, Data, Error
RAM 64 MB
Technology: Thermal transfer / Direct thermal
Connectivity
Serial RS232C (DB9 female)
USB interface: USB Ver.2.0 High Speed (Type B)
Wired network interface 10/100BASE-TX
Dimensions and weights
Dimensions without box: 204mm (W) x 177.5mm (H) x 280mm (D)
Weight: 2,50 kg
Includes
CA Adapter Yes
Bartender Ultra Lite Edition label design software
(free download)
USB Cable Yes
Quick Setup Guide Yes
Operating systems and software
Linux Linux
Macintosh Mac OS X 10.7.x, 10.8.x or later
Windows Server 2008, Server 2008R2, Server 2012, Server
2012R2, Server 2016, Windows 10, Windows 7, Windows 8, Windows 8.1
Label printers
One-dimensional barcode symbologies Code 128UCC,
Code128 subsets ABC, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with
check digit, Code39, Code39 with check digit, Code 93, EAN13, EAN8, UPCA,
UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with
check digit, PLESSEY, China post, ITF14, Code 11, TELEPEN, TELEPENN,
PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode,
LOGMARS
Two-dimensional barcode symbologies GS1 DataBar,
GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417
Label detection sensor Yes
Maximum label width 112 mm
Maximum print length 11430 mm
Maximum print width 105.7 mm
Resident and downloadable fonts
Resolution (dpi) 300 x 300
Standard print speed 127 mm per second
Supported commands FBPL-EZD (EPL, ZPL, ZPL2, DPL)
Consumables and accessories
Optional accessories: PALP003 peeler, cutter PACU002,
External label roll holder PARH001
Rolls: matte-finish thermal transfer labels: BUS-1J074102
-121, BUS-1J150102-121. Thermal transfer labels, finish
semi-gloss: BCS-1J074102-121, BCS-1J150102-121. Ribbon rolls:
BWS-1D300-110, BWP-1D300-110, BSS-1D300-110, BSP-1D300-110, BRS-
1D300-110, BRP-1D300-110
warranty
Warranty This product includes a 3-year standard warranty.
Volume (m ³): 0.0102
