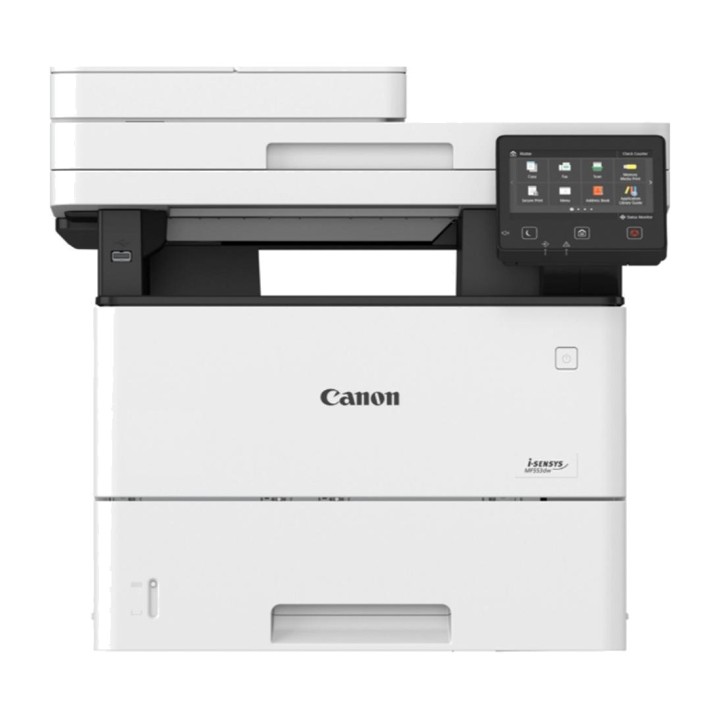

CANON Monochrome laser multifunction printer with fax and duplex I-SENSYS MF563DW A4 43PPM MGS0000034399

Features of the Canon black-and-white multifunction laser printer
The Canon black-and-white multifunction laser printer is designed for professional environments that need a complete, reliable device ready for a high workload. It combines printing, copying, scanning and faxing in a single device, with speeds of up to 43 ppm on A4, automatic double-sided printing and advanced connectivity features for working from a computer, network, mobile devices, USB memory or cloud services.
Fast, high-resolution laser printing
This device delivers efficient monochrome laser printing, ideal for office documents, reports, contracts, delivery notes and administrative materials. Its resolution of up to 1200 x 1200 dpi produces sharp text and professional results, while its first printout in approximately 5.7 seconds helps reduce waiting times in everyday work.

Device type: black-and-white multifunction laser printer
Available functions: printing, copying, scanning and faxing
Single-sided print speed: up to 43 ppm on A4
Print speed on A5 landscape: up to 65.2 ppm
Double-sided print speed: up to 36.0 ipm on A4
Print resolution: up to 1200 x 1200 dpi
Warm-up time: approximately 14 seconds or less from power-on
First printout time: approximately 5.7 seconds or less

Professional compatibility with print languages
Thanks to compatibility with UFRII, PCL 5e, PCL6 and Adobe PostScript 3, this printer adapts to different work environments and document workflows. It also includes PCL and PostScript fonts for greater accuracy in corporate documents, forms and files with demanding formatting requirements.

Print languages: UFRII, PCL 5e, PCL6 and Adobe PostScript 3
Fonts included: 93 PCL fonts
PostScript fonts: 136 fonts
Print margins: 5 mm at the top, bottom, left and right
Print margins for envelopes: 10 mm at the top, bottom, left and right
Toner save mode: yes

Advanced printing and mobility features
The printer offers flexible operation with secure printing, printing from USB and compatibility with cloud services. It is also suitable for businesses that need to print from mobile devices, thanks to AirPrint, Mopria and the Canon PRINT Business app.

Integrated secure printing
Printing from USB memory in JPEG, TIFF and PDF formats
Cloud printing with Dropbox, Google Drive and OneDrive
Supported formats from the cloud: PDF and JPEG
Barcode printing support
iOS compatibility: AirPrint and Canon PRINT Business app
Android compatibility: Mopria certification, Canon PRINT Business app and Canon Print Service plug-in

Automatic double-sided copying and productivity features
For copying tasks, this model maintains high performance with speeds of up to 43 ppm single-sided and automatic double-sided copying. Its copy modes let you adapt the output to the document type, while features such as 2 on 1, 4 on 1, collating and ID card copying make everyday administrative work easier.

Single-sided copy speed on A4: up to 43 ppm
Double-sided copy speed on A4: up to 36 ipm
First copy out time from ADF: approximately 6.4 seconds or less
First copy out time from platen glass: approximately 6.3 seconds or less
Copy resolution: up to 600 x 600 dpi
Copy modes: text, text/photo, text/photo (high quality) and photo
Double-sided copying: automatic double-sided to double-sided
Multiple copies: up to 999 copies
Enlargement and reduction range: 25 to 400% in increments of 1 %
Additional features: erase borders, collating, 2 on 1, 4 on 1 and ID card copying

Color scanning with single-pass ADF
The scanning system offers color digitization and compatibility with TWAIN, WIA and ICA standards. Its single-pass, duplex ADF scans both sides of documents more quickly, reaching up to 70 ipm in black and white duplex.

Scan type: color
Optical scanning resolution: up to 600 x 600 dpi
Enhanced scan resolution: up to 9600 x 9600 dpi
Single-sided black-and-white scan speed: 38 ipm at 300 x 600 dpi
Single-sided color scan speed: 13 ipm at 300 x 600 dpi
Duplex black-and-white scan speed: 70 ipm at 300 x 600 dpi
Duplex color scan speed: 26 ipm at 300 x 600 dpi
Color depth: 24-bit input and 24-bit output
Grayscale: 256 levels
Compatibility: TWAIN, WIA and ICA
Maximum scan width: 216 mm

Scan to email, cloud and professional formats
Digitisation is completed with scan-to-email, cloud and iFAX options, a key advantage for offices that need to archive, share or send documents quickly. It supports advanced formats such as Compact PDF, Searchable PDF, Encrypted PDF, Digitally Signed PDF and PDF A-1b.

Scan to email: TIFF, JPEG, PDF, Compact PDF, Searchable PDF, Encrypted PDF, Digitally Signed PDF and PDF A-1b
Scan to cloud: TIFF, JPEG, PDF and PNG
iFAX: ITU-T.37
Scanner: flatbed glass and single-pass duplex ADF
ADF capacity: 50 sheets

Integrated fax for office environments
The built-in fax retains full functionality for businesses that still send and receive documents over a fax line. It offers various resolutions, memory for up to 512 pages and features such as sequential broadcasting, transmission reports and permanent backup in Flash memory.

Modem speed: 33,6 Kbps
Fax speed: up to 3 seconds per page
Reception modes: fax only, automatic FAX/TEL switch, answering machine mode and manual
Standard resolution: 200 x 100 ppp
Fine resolution: 200 x 200 ppp
Superfine resolution: 200 x 400 ppp
Ultrafine resolution: 400 x 400 ppp
Fax memory: up to 512 pages
Speed dials: up to 281 numbers
Group destinations and dials: maximum 299 numbers and maximum 299 destinations
Sequential broadcasting: maximum 310 destinations
Permanent fax memory backup with Flash memory
Duplex faxing: yes, for sending and receiving
Additional features: sender name, direct sending, TX report and sequential broadcasting

High paper capacity and flexible media handling
Paper handling is designed for offices with a constant document workload. It includes a 550-sheet cassette, a 100-sheet multipurpose tray and the option to expand input capacity with additional cassettes, reaching a maximum capacity of 2300 sheets.

Standard paper input: 550-sheet cassette
Multipurpose tray: 100 sheets
Optional paper input: up to 3 550-sheet cassettes
Maximum paper input capacity: 2300 sheets
Paper output: 150 sheets
Compatible paper types: plain, recycled, thick, thin and label paper, postcards and envelopes
Weights in standard and optional cassette: 60 to 120 g/m²
Weights in multipurpose tray: 60 to 199 g/m²
Weights in ADF: 50 to 105 g/m²

Compatibility with multiple paper sizes
This model supports a wide variety of formats, from A4, A5, A6, B5, Legal or Letter to custom sizes and envelopes in the multipurpose tray. This allows the device to adapt to different business documentation, invoicing, filing and communication needs.

Sizes in standard and optional cassette: A4, A5, A5 landscape, A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, folio size and 16K
Custom sizes in cassette: minimum 105 x 148 mm and maximum 216 x 355,6 mm
Sizes in multipurpose tray: A4, A5, A5 landscape, A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, folio size, 16K, postcard, index card and envelopes
Compatible envelopes: COM10, Monarch, C5 and DL
Custom sizes in multipurpose tray: minimum 76,2 x 127 mm and maximum 216,0 x 355,6 mm
Sizes in ADF: A4, A5, A6, B5, Legal, Letter, Statement and custom sizes
Custom sizes in ADF: minimum 105 x 128 mm and maximum 215,9 x 355,6 mm

Comprehensive connectivity for office and network use
The printer features USB 2.0 Hi-Speed, Gigabit Ethernet, WiFi and Wireless Direct, making it easy to integrate into offices, workgroups and shared environments. It also supports Windows, macOS and Linux systems, along with network protocols for printing, scanning, management and security.

USB interface: USB 2.0 Hi-Speed
Wired network: 10BASE-T, 100BASE-TX and 1000Base-T
Wireless connection: 802.11b/g/n
Integrated Wireless Direct connection
Compatible systems: Windows 11, Windows 10, Windows 8.1, Server 2022, Server 2019, Server 2016, Server 2012R2, Server 2012, Server 2008R2 and Server 2008
Mac compatibility: Mac OS X version 10.11 or later
Linux compatibility

Advanced network and security protocols
For secure business use, this device features TLS 1.3, IPSec, IP and Mac address filtering, IEEE802.1X, SNMPv3, HTTPS and IPPS. It also supports management via SNMP and offers dedicated protocols for printing, scanning, email and Internet fax.

Printing protocols: TCP/IP, LPD, Port9100, IPP, IPPS and WSD
Push Scan to file: FTP and SMB 3.0 over TCP/IP
Email and Internet fax: SMTP for sending and POP3 for receiving
Pull Scan: TCP/IP
Management: SNMPv1 and SNMPv3 over IPv4 and IPv6
Security: TLS 1.3, IPSec, IP/Mac address filtering, IEEE802.1X, SNMPv3 and SSL
SSL security: HTTPS and IPPS
Wireless security in infrastructure mode: 64/128-bit WEP, WPA-PSK TKIP/AES and WPA2-PSK TKIP/AES
Wireless security in access point mode : WPA2-PSK AES

Device management and control software
The printer includes tools that make it easier to use, administer and maintain in professional environments. The Remote User Interface, Department ID Management and solutions such as iW Management Console or eMaintenance help control the device, monitor consumables and centralise management.

MF Scan Utility
Remote User Interface (RUI)
Department ID management
Toner Status Tool
iW Management Console for centralised device management
eMaintenance with integrated RDS for meter readings, automatic consumables management and remote diagnostics
Application Library

Designed for high workloads
With a recommended volume of 2,000 to 7,500 pages per month and a maximum duty cycle of up to 150,000 pages per month, this multifunction printer is ready for offices with heavy document workloads. Its dual-core processor, 1 GB of memory and colour touchscreen provide a smooth user experience.

Recommended monthly print volume: 2,000 to 7,500 pages per month
Duty cycle: maximum 150,000 pages per month
Processor: 800 MHz x 2
MEMORY : 1 GB
Control panel: 12.7 cm colour touchscreen LCD
Dimensions with trays: 494 x 464 x 452 mm
Installation dimensions: 741 x 1105 x 1214 mm
Weight: approximately 19.8 kg

Energy efficiency and controlled operation
The equipment is designed for use in office environments, with low power consumption in standby and sleep modes. Its typical electricity consumption is 0.41 kWh/week, while sleep mode reduces consumption to approximately 0.9 W.

Operating environment: from 10 to 30 °C
Operating humidity: 20 to 80% relative humidity, non-condensing
Power supply: 220-240 V, 50/60 Hz
Active printing consumption: approximately 590 W
Maximum consumption: approximately 1430 W
Standby power consumption: approximately 13,6 W
Consumption in sleep mode: approximately 0,9 W
Typical electricity consumption (TEC): 0.41 kWh/week at 230 V
Operating sound pressure: 54 dB
Standby sound pressure: 24 dB
Operating sound power: 72.9 dB
Standby sound power: inaudible

Consumables and expansion options
The printer is compatible with cartridges of different capacities, allowing you to choose between standard or high-yield options depending on print volume. It can also be expanded with additional feeders, a pedestal, a barcode kit and a PDF security kit.

056L Cartridge: up to 5100 pages
056 Cartridge: up to 10 000 pages
056H Cartridge: up to 21 000 pages
PF-C1 paper feeder with 550-sheet cassette
Long cable for TEL 6 kit with telephone terminal
Barcode printing kit E1E
Send security feature set PDF E1
Simple pedestal V2
Simple pedestal AB1

Other specifications

Duplex printing compatible with A4, Legal, Letter, OFFICIO, B-OFFICIO, M-OFFICIO and Ministro
Custom sizes for duplex printing: from 210 x 279.4 mm to 216 x 355.6 mm
Paper weight for duplex printing: 60 to 120 g/m²
Print formats from USB: JPEG, TIFF and PDF
Print formats from the cloud: PDF and JPEG
Single-pass duplex ADF
ADF capacity: 50 sheets
Permanent fax memory backup via Flash memory
Compatible with eMaintenance services for remote diagnostics and automatic consumables management
Volume (m ³): 0.2014
