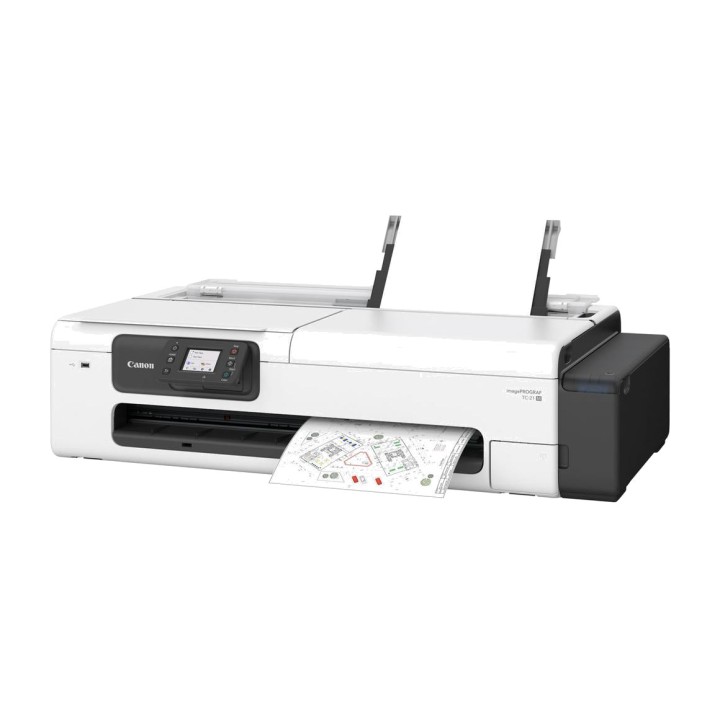

CANON 24-inch multifunction plotter with scanner for CAD IMAGEPROGRAF-TC-21M A1 MGS0000028373

Features of the CANON TC-21M image PLOTTER PROGRAF A1 24"
The Canon imagePROGRAF TC-21M is a professional 24" A1 plotter with an integrated scanner, designed for technical environments, design studios, engineering, architecture and CAD offices that need to print and digitise plans, drawings and posters with high precision and professional quality. It combines large-format printing, colour scanning and advanced connectivity in a compact, efficient device.
High-precision A1 large-format printing
This plotter features a 4-colour pigment ink printing system that ensures sharp lines, clearly defined text and stable colours, ideal for CAD plans, technical graphics and posters.

Maximum print size : A1 / 24"
Print resolution: 2400 x 1200 dpi
Ink technology: Pigment (BK / C / M / Y)
Total number of nozzles: 4352
Line accuracy: ±0.1% or less

Integrated flatbed scanner for precise digitisation
The Canon TC-21M features a colour CIS flatbed scanner, designed to copy and digitise documents directly from the device, without the need for external equipment.

Scanner type: Colour CIS flatbed scanner
Maximum scan resolution: 1200 x 2400 dpi
Colour depth: 16-bit input / 8-bit output per channel
Maximum document size: A4 / LTR (216 x 297 mm)
Scan speed at 300 dpi: 3.5 ms/line (colour)

Optimized speed for CAD and poster workflows
Delivers fast, consistent print times tailored to everyday technical and graphic jobs, while always maintaining stable quality.

A1 CAD drawing in B/W: 30 seconds
A1 CAD drawing in colour: 1 minute
A1 poster on plain paper (standard) : 1:51
A1 coated paper (standard) : 4:23

Versatile media and format handling
The feed system supports rolls and cut sheets, covering everything from small formats to continuous roll printing, with borderless printing options.

Paper types: Roll and cut sheets
Roll width : A3, A2, A2+, A1, B2, B3, 17", 18", 24"
Supported thickness: 0,08 – 0,28 mm
Maximum roll print length: 4 m
Borderless printing: from A4 up to 24" on roll

Comprehensive connectivity for professional environments
The TC-21M easily adapts to modern offices thanks to its extensive wired and wireless connectivity, allowing printing from different devices and systems.

High-speed USB B
USB A for USB flash drive (PDF / JPEG)
Ethernet : 10BASE-T / 100BASE-TX
Wi-Fi: IEEE 802.11 n/g/b/a/ac
Compatibility: Apple AirPrint, Mopria and Chrome OS

System compatibility and efficient operation
It is compatible with a wide range of operating systems and stands out for its low energy consumption, making it ideal for continuous office use.

Windows: 7, 8.1, 10, 11 and Server 2008R2 – 2025
macOS: 11.7.10 and later 14.15
Power consumption during operation : 28 W
Sleep mode : 2,3 W
Power off : 0,07 W

Compact design and installation options
Its compact design makes it easy to install in tight spaces, with a choice of a collection basket or stand with basket to suit the work environment.

Main unit dimensions (closed): 968 x 533 x 245 mm
Weight: 34kg
Options: BU-06 basket and stand SD-24

Consumables and included contents
The device is supplied ready to use, with the essential consumables included so you can start printing straight away.

Ink tanks: PFI-050 (70 ml x 4)
Printhead: PF-08
Maintenance cartridge: MC-32
Includes: printer, print head, starter inks, power cable and documentation
Volume (m ³): 0.3145
