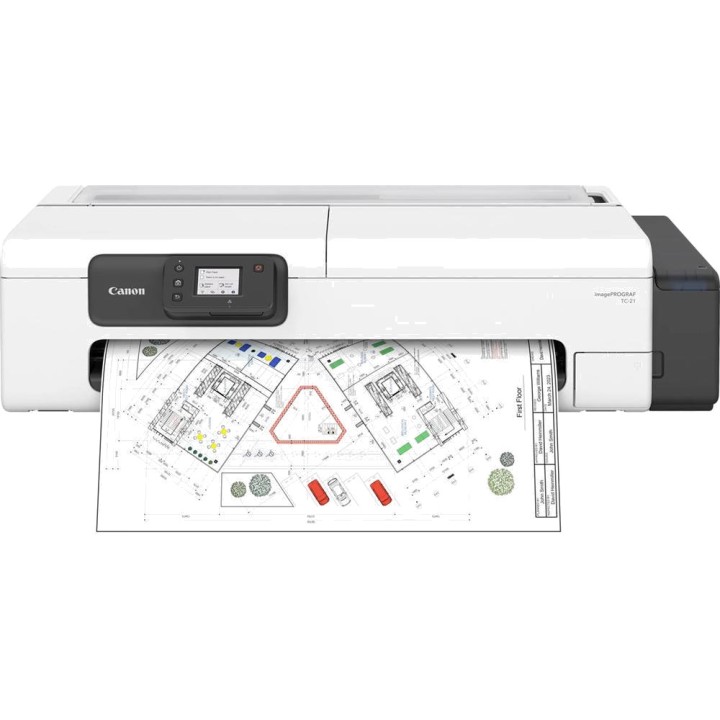

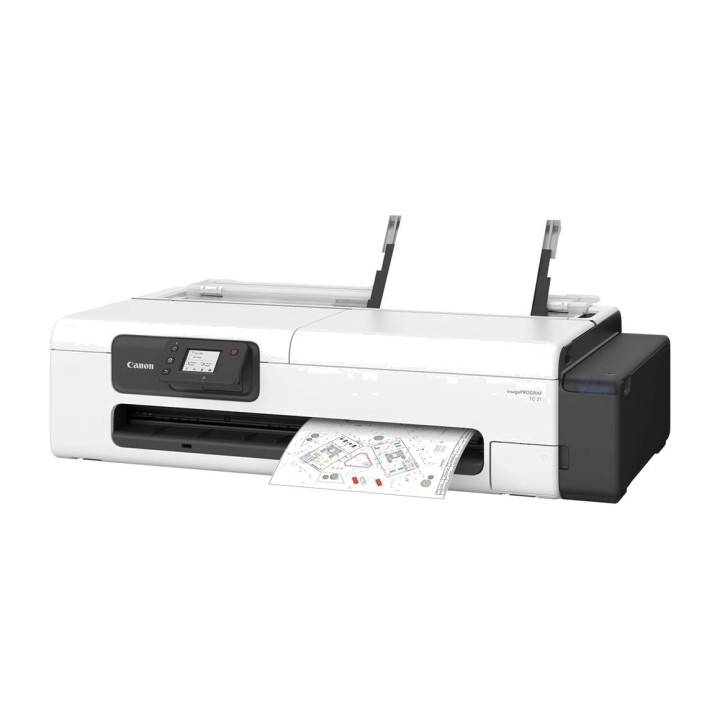

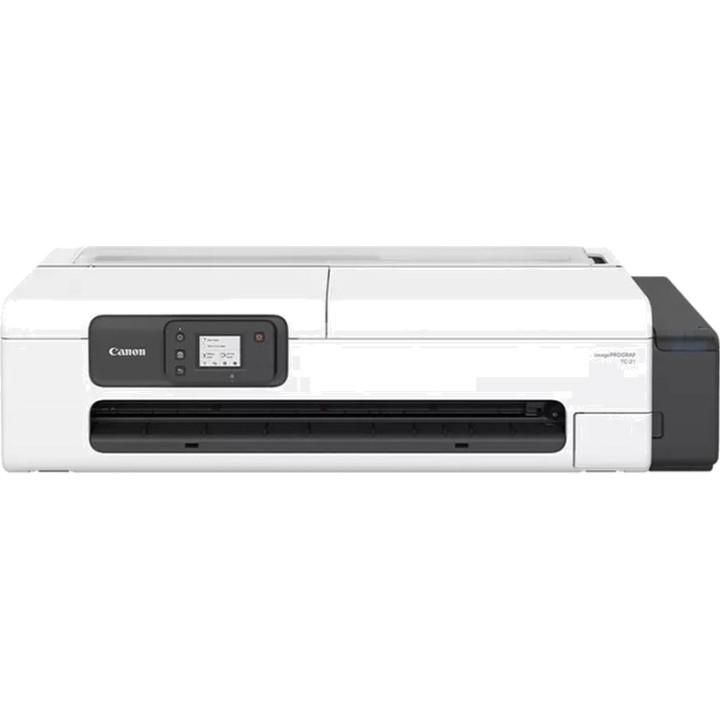

CANON 24-inch desktop CAD plotter IMAGEPROGRAF-TC-21 A1 MGS0000027743

Features of the CANON image PLOTTER PROGRAF TC-21 A1 24"
The Canon imagePROGRAF TC-21 is an A1 (24") large-format desktop plotter designed for CAD, architecture, engineering and technical offices that need a compact, efficient and reliable solution for printing plans, technical drawings and posters. Thanks to its 4-colour pigment ink system, advanced connectivity and low energy consumption, it is a well-balanced option for everyday work.

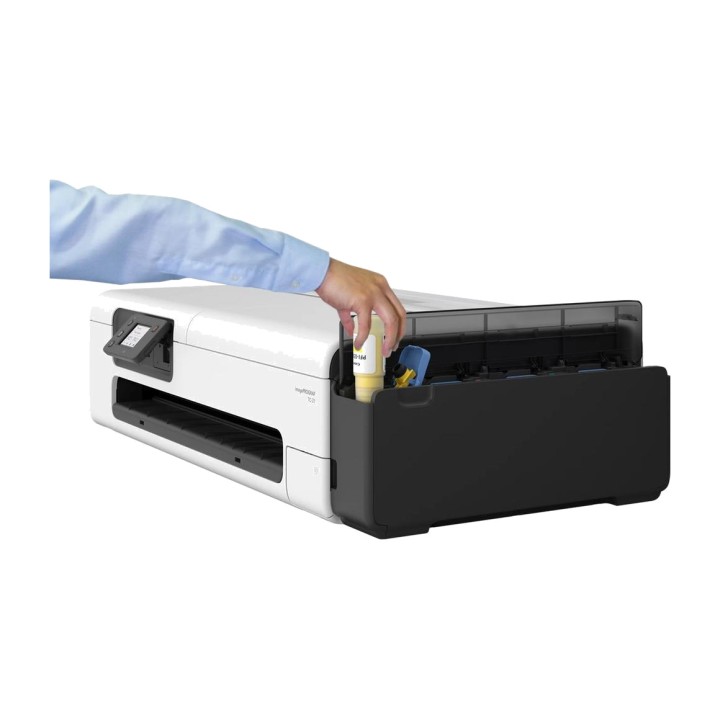

4-colour pigment ink system
The TC-21 uses Canon BK, C, M and Y pigment inks, optimised to deliver sharp lines, crisp text and stable colours, especially for technical prints and professional documentation.

Ink type: Pigment (BK / C / M / Y)
Included ink capacity: 280 ml (70 ml x 4)
Replacement ink capacity: 70 ml
Total number of nozzles: 4.352

Print quality and CAD precision
Thanks to Canon inkjet technology, the imagePROGRAF TC-21 ensures precise, consistent prints, even for complex technical plans and drawings with fine lines.

Print resolution: 2400 x 1200 dpi
Line accuracy : ±0,1 %
Maximum print size : A1 / 24"

Optimised performance for CAD and posters
This plotter is designed for everyday technical use, offering suitable speeds for both CAD drawings and light signage.

A1 CAD, black and white: 30 seconds (standard)
A1 CAD, colour: 1 minute (standard)
A1 poster on plain paper: 1:01 (draft), 1:51 (standard)
A1 poster on coated paper: 2:42 (draft), 4:23 (standard)

Flexible media handling
The Canon TC-21 supports roll paper and cut sheets, adapting to different formats and printing needs, with borderless printing available in certain sizes.

Supported media: roll and cut sheet
Roll width : A3, A2, A2+, A1, B2, B3, 17", 18", 24"
Media thickness: 0.08 – 0.28 mm
Maximum roll length: 4 m
Maximum cut-sheet length: 1200 mm

Advanced connectivity and compatibility
The imagePROGRAF TC-21 integrates easily into modern work environments thanks to its USB, wired network and Wi-Fi connectivity, allowing printing from different devices and platforms.

USB B: High-speed USB
Ethernet : 10BASE-T / 100BASE-TX
Wi-Fi: IEEE 802.11 n/g/b/a/ac
Protocols: Apple AirPrint, Mopria, Chrome OS
Compatible software: Direct Print Plus, Free Layout Plus

Low power consumption and quiet operation
Designed for offices, the TC-21 stands out for its energy efficiency and low noise level, making it suitable for shared workspaces.

Power consumption during operation: approx. 28 W
Sleep mode: approx. 2.3 W
Off: approx. 0.07 W
Operating noise level: approx. 41.5 dB(A)

Compact design and installation options
Its compact design makes it easy to install on a desk or with optional accessories for greater convenience when handling paper.

Dimensions (closed): 968 x 533 x 245 mm
Printer weight: 32 kg (without ink)
Available options: BU-06 basket, stand with basket SD-24

Certifications, contents and consumables
The Canon imagePROGRAF TC-21 complies with international regulations and is delivered ready for setup.

Certifications: CE, UKCA, CB, EPEAT GOLD
Consumables: PFI-050 ink (70 ml), PF-08 print head, cartridge MC-32
Includes: printer, print head, starter inks, power cable and documentation
Volume (m ³): 0.3064
