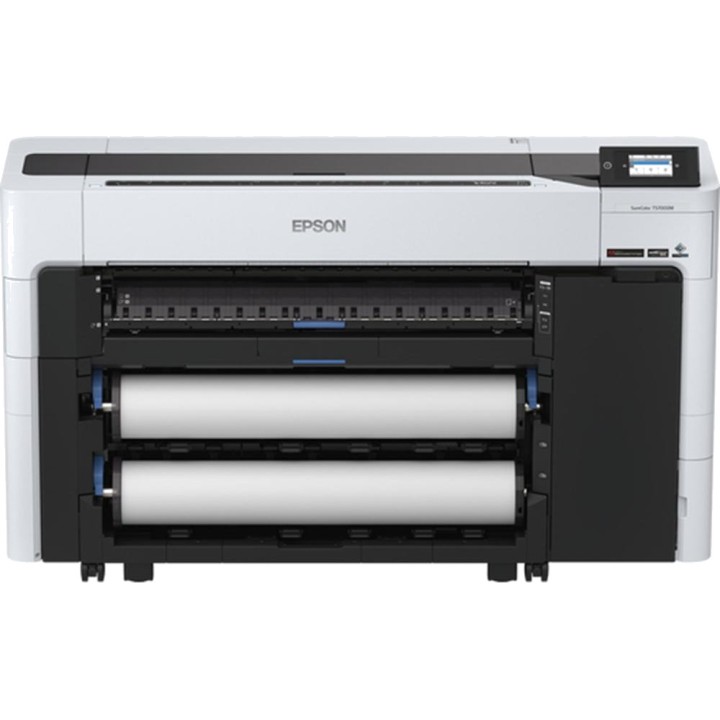

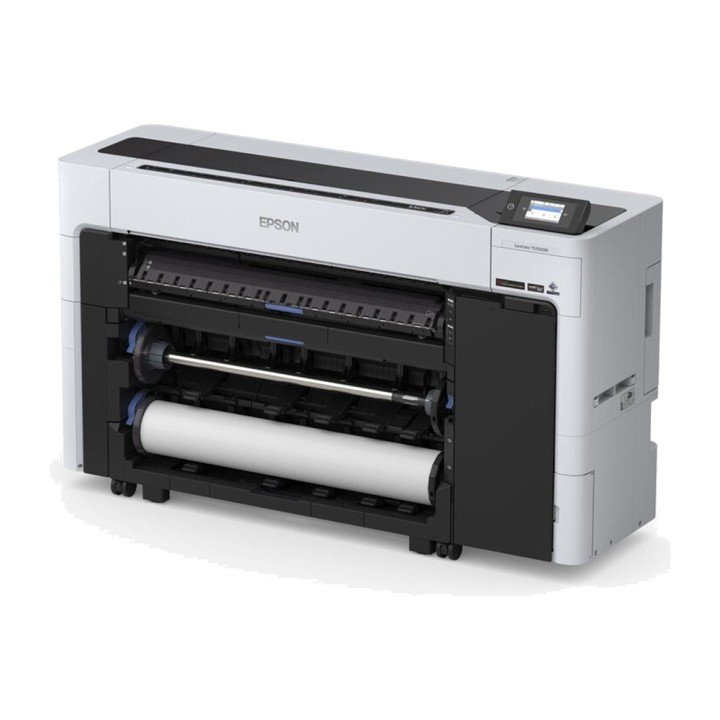

EPSON Large-format multifunction plotter with dual roll and scanner SURECOLOR-SC-T5700DM 36-PULGADAS DSP0000025867

Features of the Epson SureColor T-Series multifunction printer 36"
The 36" Epson SureColor T-Series multifunction printer is designed for professional environments that need to print, scan and copy large-format documents with precision. Thanks to its PrecisionCore TFP printhead, Ultrachrome XD3 ink, integrated scanner and compatibility with formats up to A0 and 36" rolls, it is a suitable solution for architecture, engineering, CAD, reprographics, technical administrations and offices working with plans, maps, posters or professional documentation.
Multifunction printer, scanner and copier
This model combines printing, scanning and copying functions in a single device, making it possible to centralise large-format document workflows. Its configuration is designed for departments that need to digitise plans, reproduce technical documents or produce large copies without relying on several separate devices.

Main functions: printing, scanning and copying
SureColor T-Series Printer/Scanner device
Integrated standard scanner
Compatible with workflows from PC, Mac, network, mobile device, USB, cloud and directly from the device

PrecisionCore TFP technology with Ultrachrome ink XD3
The PrecisionCore TFP printhead works with Ultrachrome XD3 ink to deliver precise results on technical documents, fine lines, graphics and plans. Its resolution of up to 1.200 x 2.400 ppp produces detailed prints, while the minimum 3,5 pl droplet helps maintain good definition in strokes and small elements.

Printing method: PrecisionCore TFP printhead
Ink technology: Ultrachrome XD3
Print resolution: 1,200 x 2,400 dpi
Speed mode resolution: 300 x 600 dpi
Minimum droplet size for CMY colour: 3,5 pl
Minimum droplet size for matte black: 3,5 pl
Minimum droplet size for photo black: 3,5 pl

High precision for plans, CAD and technical documents
The printer is designed for jobs where line precision is essential. With a minimum line width of 0.02 mm and line accuracy of +/- 0.1, it is especially useful for printing plans, diagrams, maps, CAD documentation and technical files that require clear strokes and reliable measurements.

Minimum line width: 0,02 mm
Line accuracy : +/- 0,1
Emulations: ESC/P-R, PostScript 3, Adobe PostScript 3, PDF 1.7, HP-GL2 and RTL
Includes Adobe PostScript 3

High-capacity professional ink tanks
The ink system is designed for intensive use, with cartridges available in 350 ml and 700 ml capacities. This configuration allows ink consumption to be adapted to the workload, with pigment inks designed for professional large-format printing.

Photo Black: 350 ml and 700 ml
Matte Black: 350 ml and 700 ml
Cyan: 350 ml and 700 ml
Yellow: 350 ml and 700 ml
Magenta: 350 ml and 700 ml
Red: 350 ml and 700 ml
Includes ink set

Compatible with formats up to A0 and roll 36"
The Epson SureColor T-Series supports a wide range of formats, from office documents such as A4 and A3 to large-format media such as A0 and 36" rolls. This versatility makes it suitable for technical studios, design departments, reprographics and offices working with plans or large visual documents.

Compatible formats: A0, A1, A2, A3 and A4
Compatible with 43.2 cm 17 in rolls
Compatible with 61 cm 24 in rolls
Compatible with 91.4 cm 36 in rolls
Borderless printing enabled at 20 inches
Borderless printing on 10" 25.4 cm roll
Borderless printing on 17" 43.1 cm roll
Borderless printing on 24" 60.9 cm roll

Advanced media handling with dual rolls and automatic take-up
The paper handling system is designed to provide flexibility and continuous operation. It supports cut sheets, rolls and rigid media, and also features an automatic take-up reel and the ability to work with two rolls. This is especially practical for long jobs, continuous runs or frequent media changes.

Cut-sheet thickness: 0,1 mm
Roll thickness: 0.3 mm
Rigid media supported
Suitable paper thickness: 1.5 mm
Auto Take Up Reel: YES
Automatic take-up reel
Roll capacity, roll 1 diameter: 170 mm
Roll capacity, roll diameter 2: 170 mm
Roll capacity, roll 1 weight: 10.200 g
Roll capacity, roll 2 weight: 10.200 g
Includes Roll Feed Spindle 36"

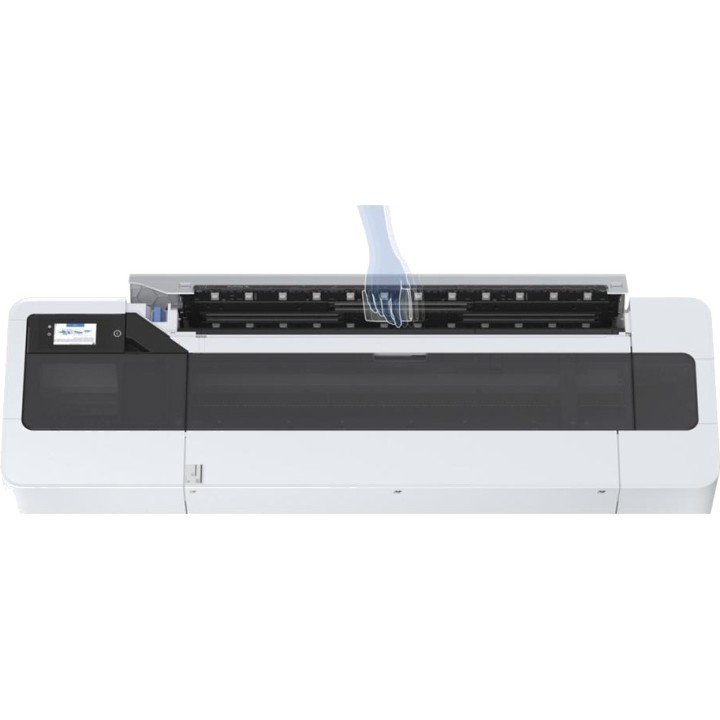

Large-format scanning with CIS sensor
The integrated scanner uses a CIS contact image sensor with a dual RGB LED light source, a configuration suitable for digitising plans, technical documents and large originals. It can scan widths of up to 36" and lengths of up to 30.5 m, making it easier to manage long documents.

Standard scanner
Scanner type: CIS contact image sensor
Light source: dual RGB LED
Scan width: 36", from 153 mm to 914,4 mm
Maximum scan length: 30,5 m
Maximum OR accuracy: +/- 0,1 % of vector length, whichever is greater
Monochrome scan speed: 10 inches/second at 200 dpi
Colour scan speed: 4,5 inches/second at 200 dpi

Direct scanning to USB, SSD and network folders
Scan destination options allow the device to be integrated into professional workflows by sending scanned documents to an SSD, USB flash drive or network folders. It also supports various output formats, including secure PDF and PDF/A, making it easier to archive, distribute and protect documents.

Scan destinations: SSD, USB and network folder
Advanced document integration: FTP, network folders, USB and USB flash drive
Output formats: JPEG, TIFF, multi-page TIFF, PDF, PDF/A, multi-page PDF and Secured PDF
Scan Preview function

Copy functions for large-format documents
The copy function lets you reproduce documents directly from the device, with reduction and enlargement options to adapt the output to the required format. Its scaling range of 25 % to 755 % lets you work with plans, diagrams and technical documents of different sizes.

Reduction and enlargement : 25 % - 755 %
Maximum number of copies: 99
Copying integrated into the multifunction device

Complete connectivity for office and network
The printer offers USB, Ethernet and WiFi 5 connectivity, making it easy to integrate into technical offices and shared environments. It also supports printing from PC, Mac, network, mobile devices, USB, cloud and directly from the device, providing flexibility for different user profiles.

Print source: PC, MAC, Network, Mobile Device, USB, Cloud and Direct from Device
High-speed USB compatible with specification USB 2.0
Ethernet interface: 1000 Base-T, 100-Base TX and 10-Base-T
IEEE 802.11a/b/g/n/ac WiFi 5 wireless LAN
Integrated Bluetooth

Touchscreen and direct job control
The colour LCD touchscreen lets you conveniently manage the device from its control panel. Features such as direct printing from USB, driver preview and scan preview help you check jobs before producing them, reducing errors and improving document workflow control.

Color LCD screen
TOUCH SCREEN
Direct printing from USB
Driver preview
Scan Preview
Nozzle verification technology

Advanced security for professional environments
This model includes security and administration features designed for businesses, shared offices and organisations that work with sensitive documents. It includes encryption, authentication, user control and data protection to strengthen security on the network and on the device itself.

Security: SNMP V3 and IPSec
Encryption AES-256
Data storage encryption
Data encryption
WPA3
NFC reader for card authentication
TPM Trusted Platform Module
PIN code release
Image overwrite
User authorisation
LDAP
IEEE802
SSL/TLS
Admin Mode Panel

Optional Epson software and solutions
The printer is compatible with several optional solutions for automation, administration, cost control and print management. These tools let you adapt the device to professional workflows, from graphic production to centralised device administration.

Epson Print Automate
Dinax Mirage
Epson Edge
Epson Cloud Solution PORT
Epson Print Layout
Epson LFP Accounting Tool
Epson Device Admin
Epson Edge Dashboard
Epson Print Admin
Epson Print Admin Serverless

Professional design for large-format production
With dimensions of 1.645 x 499 x 975 mm and a weight of 150 kg, this multifunction printer is designed for professional installations that require a robust, stable device ready for intensive use. Its energy consumption varies according to the operating mode, including economy and standby modes.

Product dimensions: 1.645 x 499 x 975 mm
Weight: 150kg
Power consumption : 90 W
Power consumption in economy mode : 44 W
Standby power consumption : 2 W
Power consumption when switched off : 1,3 W
Supply voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
Country of origin: Indonesia

Included contents and optional accessories
The device includes key items for installation and setup, such as Adobe PostScript 3, an ink set, a power cable, a 36" roll feed spindle, documentation and a warranty. Its capabilities can also be expanded with optional accessories for storage, authentication and paper feeding.

Includes Adobe PostScript 3
Includes ink set
Power cable included
Includes Roll Feed Spindle 36"
SureColor T-Series printer/scanner included
Includes user manual on CD
Includes warranty documents
Optional extra: Cover Plus warranty extensions
Optional extra: SSD solid-state drive
Optional extra: NFC Card Reader Server
Optional extra: NFC Card Reader Serverless
Optional extra: 91.4 cm 36 in paper roll feed shaft

Other specifications

Product designed for large-format printing, scanning and copying
Ink technology: Ultrachrome XD3
Key features: touchscreen, Bluetooth, direct printing from USB, driver preview, Scan Preview, automatic take-up roller and nozzle verification technology
Included interfaces: high-speed USB, Gigabit Ethernet and WiFi 5
Supported emulations: ESC/P-R, PostScript 3, Adobe PostScript 3, PDF 1.7, HP-GL2 and RTL
Scan output formats: JPEG, TIFF, multi-page TIFF, PDF, PDF/A, multi-page PDF and Secured PDF
Scan destinations: SSD, USB memory device and network folder
Compatible with advanced integration via FTP, network folders, USB and USB memory
Volume (m ³): 1.5893
