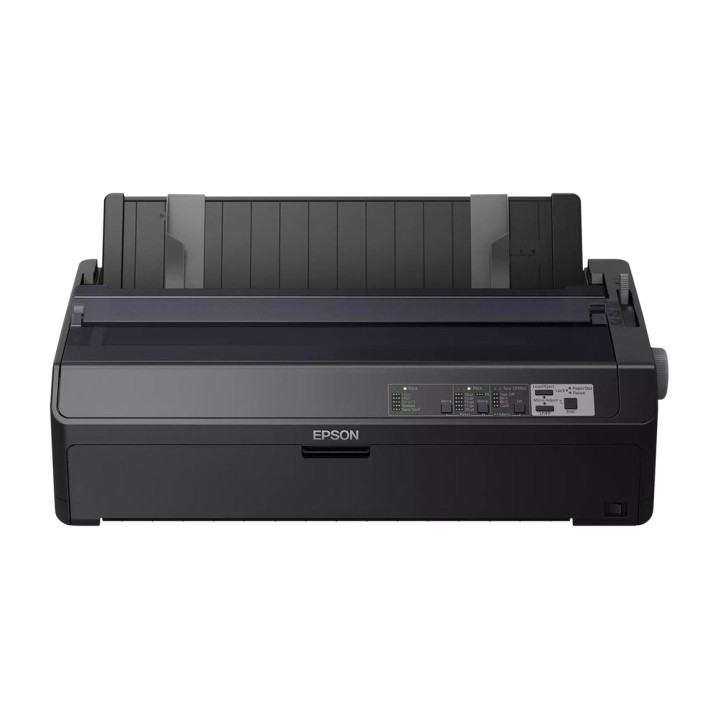

EPSON 9-pin, 136-column dot matrix printer FX-2190II DSP0000025736

Low total cost of ownership dot matrix printer

Market-leading print speeds1 Complete high-volume print runs at a higher speed.
Very low total cost of ownership Low-cost, long-lasting consumables and reduced energy consumption.
Even better reliability Improved by 25%, up to 25 000 hours powered on.
Less space Makes it easier to place in a business environment.
Energy Star compatible To ensure the highest possible energy efficiency.

Technical specifications
Product functions and specifications are subject to change without prior notice.
TECHNOLOGY
Printing method
Impact dot matrix printer
Number of pins
9 pins
Number of columns
136 columns
needles
18 pins (2 x 9)
printing
Print speed
High-speed Draft: 10 cpi: 612 characters/s, Draft: 10 cpi: 463 characters/s, NLQ: 10 cpi: 115 characters/s, Ultra Speed-Draft: 12 cpi: 738 characters/s
Barcodes
Barcode (NW-7), Code 128, Code 39, Industrial 2 of 5, Matrix 2 of 5, POSTNET, UPC-A, UPC-E
Carbon copies
6 plus one original
Character sets
42
Character tables
PCAPTEC, PC437, PC720, PC850, PC858, ISO-8859-15, Roman 8, Italic
Print resolution
240 x 144 dpi
Connectivity
Interfaces
USB - Compatible with the USB 2.0 specification, Bidirectional parallel
Paper and media handling
Document feed
Front and rear single sheets, Front and rear continuous paper, rear paper output
Paper formats
Sheets of paper (single- or multi-ply), Continuous paper (single- or multi-ply), Envelopes, Cardstock
Continuous paper thickness
0,46 mm
Label Base Sheet paper thickness
0,46 mm
Multi Part paper thickness
0,12 mm - 0,46 mm
Single Sheet paper thickness
0,06 mm - 0,14 mm
general
Power consumption
54 watt, 0.5 watt (economy), 8 watt (Standby)
Supply voltage
AC 198 V - 264 V
Product dimensions
612 x 375 x 177 mm (width x depth x height)
WEIGHT
8,37 kg
Temperature
Operation 5°C - 35°C, storage -30°C - 60°C
Air humidity
Operation 10% - 80%, storage 30% - 60%
Mean time between failures
25,000 Hours
Print head service life
400 million impacts/needle
Fonts
EPSON Draft bitmap font (10 CPI, 12 CPI, 15 CPI), EPSON OCR-B bitmap font (10 CPI), EPSON Roman bitmap font (10 CPI, 12 CPI, 15 CPI, Proportional), EPSON Sans Serif bitmap font
(10 CPI, 12 CPI, 15 CPI, Proportional)
Noise level
Operation (Roll): 55 dB (A)
Ribbon yield
12 Characters Black Draft
OTHER FEATURES
Emulations
ESC/P, IBM PPDS
Data input memory
128 kB
Volume (m ³): 0.0977
