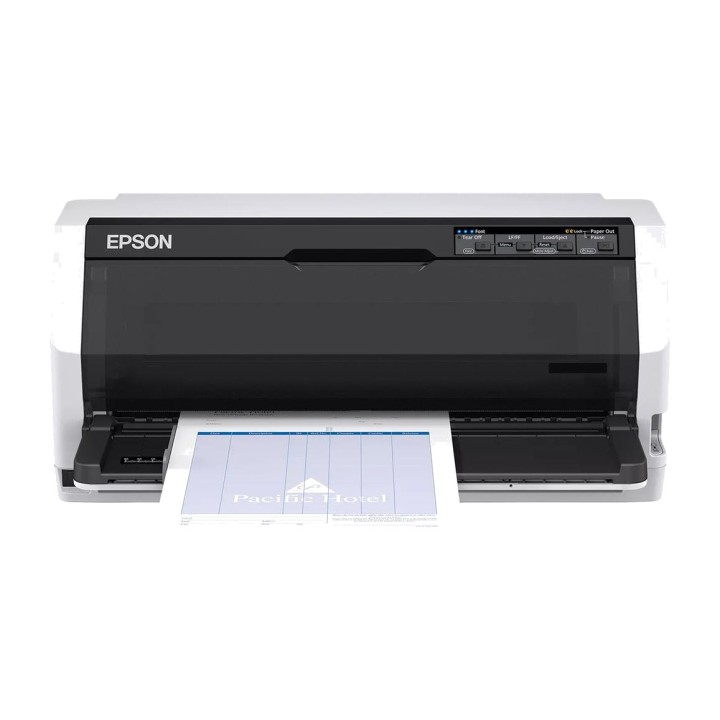

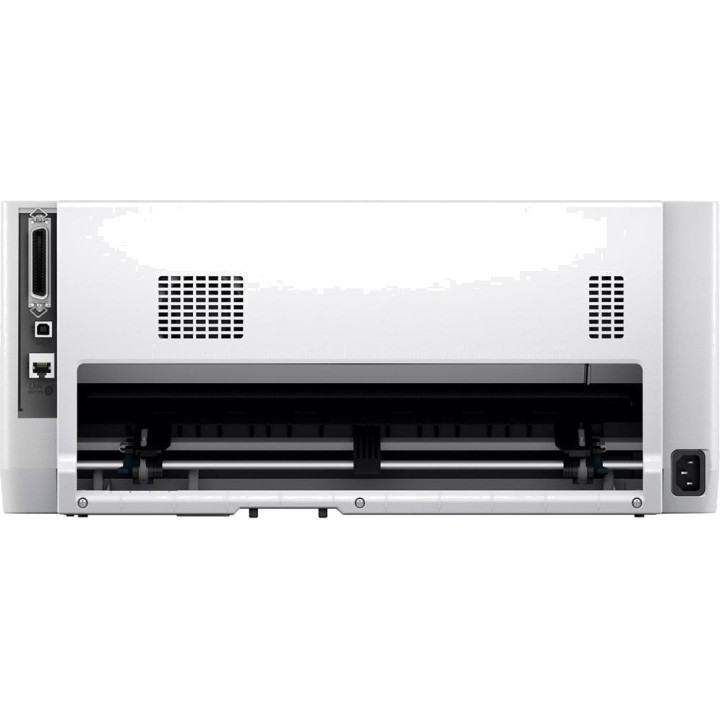

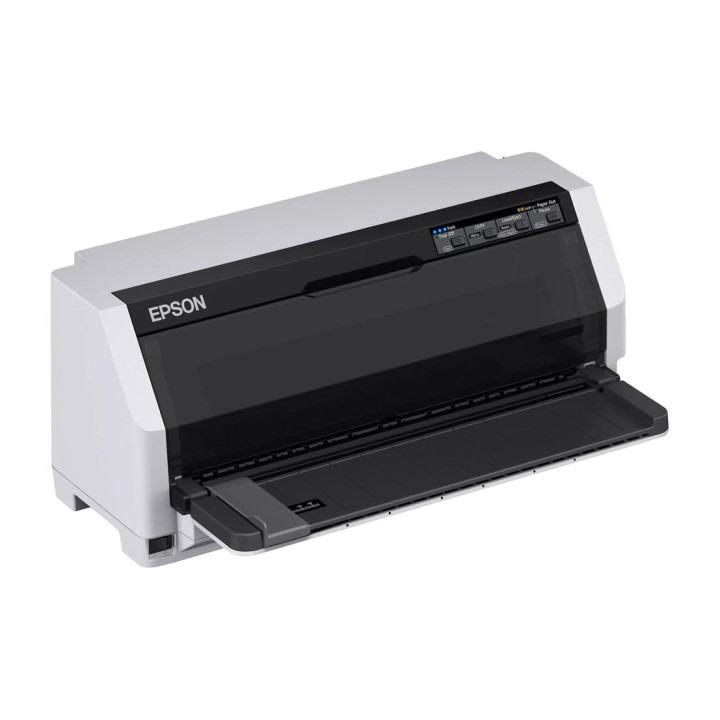

EPSON 24-pin, 106-column dot matrix printer LQ-690II DSP0000025735

Technical specifications
Product functions and specifications are subject to change without prior notice.
TECHNOLOGY
Printing method
Impact dot matrix printer
Number of pins
24 pins
Number of columns
106 columns
needles
24 pins
printing
Print speed
High-speed draft: 10 cpi: 487 characters/s, 12 cpi: 529 characters/s, Draft: 10 cpi: 366 characters/s, 12 cpi: 396 characters/s, LQ: 10 cpi: 121 characters/s, 12 cpi: 132 characters/s
Barcodes
Barcode (NW-7), Code 128, Code 39, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, POSTNET, UPC-A, UPC-E
Carbon copies
6 plus one original
Character tables
PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, ISO-8859-15, Roman 8, Italic
Print resolution
360 x 180 dpi
Connectivity
Interfaces
USB 2.0, Bidirectional parallel
Paper and media handling
Document feed
front single-sheet, rear continuous paper, front paper output
Paper formats
Paper sheets (single- or multi-ply), continuous paper (single- or multi-ply), labels (single- or multi-ply), roll paper, envelopes, card stock
Continuous paper thickness
0,065 mm - 0,49 mm
Label Base Sheet paper thickness
0,16 mm - 0,19 mm
Label Total Sheet paper thickness
0,16 mm - 0,19 mm
Multi Part paper thickness
0,12 mm - 0,49 mm
Single Sheet paper thickness
0,065 mm - 0,15 mm
general
Power consumption
38 watt, 3 watt (Standby)
Product dimensions
480 x 301 x 211 mm (width x depth x height)
WEIGHT
6,8 kg
Temperature
Operation 5C - 35C
Air humidity
Operation 10% - 80%
Compatible operating systems
Windows 10, Windows 11, Windows 2000, Windows 7, Windows 8, Windows 98, Windows Vista, Windows XP, Windows XP SP3 or later (32-bit), Windows Server 2003 SP2 or later
Included software
Epson Status Monitor
Mean time between failures
20,000 Hours
Print head service life
400 million impacts/needle
Sound pressure
Operation: 59 dB (A)- Standby: 54 dB (A)
Fonts
EPSON Courier bitmap font (10 CPI, 12 CPI, 15 CPI), EPSON Draft bitmap font (10 CPI, 12 CPI, 15 CPI), EPSON OCR-B bitmap font (10 CPI), EPSON Orator bitmap font (10 CPI), Font
EPSON Orator-S bitmap font (10 CPI), EPSON Prestige bitmap font (10 CPI, 12 CPI), EPSON Roman bitmap font (10 CPI, 12 CPI, 15 CPI, Proportional), EPSON Sans Serif bitmap font (10 CPI,
12 CPI, 15 CPI, Proportional), EPSON Script bitmap font (10 CPI), EPSON Script C bitmap font (Proportional), EPSON Roman scalable font, EPSON Roman T scalable font, scalable
EPSON Sans Serif, EPSON Sans Serif H scalable font
MEMORY
128 kB included
Ribbon yield
10000000 Characters Black Draft
OTHER FEATURES
Emulations
ESC/P2, IBM PPDS
Volume (m ³): 0.0683
