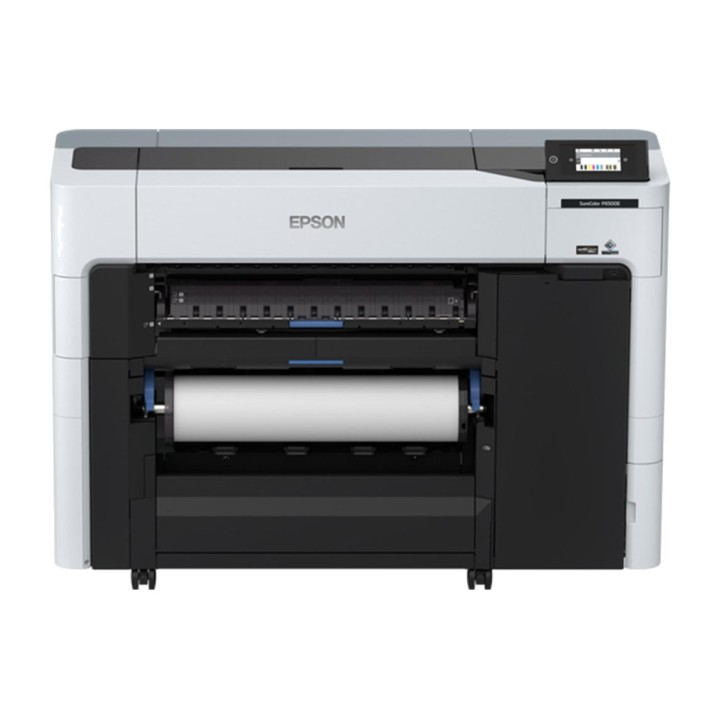

EPSON Large-format photo printer SURECOLOR-SC-P6500E 24-PULGADAS DSP0000025720

Features of the Epson SureColor P-Series Printer 24"
The 24" Epson SureColor P-Series printer is designed for professional environments that need a precise, versatile large-format solution ready for demanding workflows. Thanks to its PrecisionCore Micro TFP printhead, 6-colour Ultrachrome Pro6 ink system and compatibility with printing from PC, Mac, network, mobile devices, cloud and direct USB, it is a suitable choice for design, photography, CAD, signage, colour proofing and professional graphic production.
PrecisionCore Micro TFP technology for professional printing
The PrecisionCore Micro TFP printhead is designed to deliver sharp results in large-format jobs, for both graphic and technical applications. Its configuration of 1,600 nozzles per colour and variable-size ink droplet technology enable precise printing, with good detail control and a maximum resolution of 1,200 x 2,400 dpi.

Printing method: PrecisionCore Micro TFP printhead
Nozzle configuration: 1.600 nozzles per colour
Maximum droplet size: 3,5 pl
Variable-size ink droplet technology
Print resolution: 1,200 x 2,400 dpi
Draft resolution: 300 x 300 dpi
Speed mode resolution: 300 x 600 dpi
Maximum quality resolution: 1,200 x 2,400 dpi

6-colour Ultrachrome Pro6 ink system
Ultrachrome Pro6 ink technology uses pigment inks to deliver professional colour reproduction, with a configuration designed for jobs where stability, detail and colour fidelity are important. It features 6 colours, including Photo Black, Matte Black and Grey, helping to improve depth in images, graphics and documents with demanding visual requirements.

Ink technology: Ultrachrome Pro6
Number of colours: 6 colours
Colours: pigment photo black, pigment matte black, pigment cyan, pigment yellow, pigment magenta and pigment grey
Ink tank capacity: 350 ml and 700 ml
Available capacities: Photo Black 350 ml and 700 ml
Available capacities: Matte Black 350 ml and 700 ml
Available capacities: Cyan 350 ml and 700 ml
Available capacities: Yellow 350 ml and 700 ml
Available capacities: Magenta 350 ml and 700 ml
Available capacities: Red 350 ml and 700 ml
Available capacities: Grey 350 ml and 700 ml

Precision for CAD, graphics and technical work
This printer is designed for applications where line precision is a key factor, such as plans, technical documentation or CAD designs. Its minimum line width of 0.02 mm, together with a line accuracy of +/- 0.26, enables work with technical documents that require clarity in strokes, text and fine details.

Minimum line width: 0,02 mm
Line accuracy : +/- 0,26
CAD print speed on A1 size: fast mode 2 ppm
Colour profiles: LUT and ICC Profile
Emulations: ESC/P-R, PDF 1.7, HP-GL2 and RTL

Wide compatibility with paper formats
The Epson SureColor P-Series supports different paper sizes, from small formats such as A5 to large-format A1 prints and 24" rolls. This versatility makes it a suitable tool for creative studios, technical departments and production environments that need to switch between different types of jobs.

Supported formats: A5 14,8 x 21,0 cm
Supported formats: A4 21,0 x 29,7 cm
Supported formats: A3 29,7 x 42,0 cm
Supported formats: A2 42,0 x 59,4 cm
Compatible formats: A1
Compatible with 43,2 cm 17 in
Compatible with 70 cm 24 in
Printable roll length: 91,5 minimum

Support for sheets, rolls and rigid media
Paper and media handling offers great flexibility to meet different printing needs. The printer supports single sheets, paper rolls and rigid media, with a suitable paper thickness of up to 1.5 mm, expanding its possibilities for graphic production, presentations, signage and special jobs.

Cut-sheet thickness: 0,1 mm
Roll thickness: 0,8 mm
Rigid media supported
Suitable paper thickness: 0,1 mm - 1,5 mm
Roll capacity, roll 1 diameter: 170 mm
Roll capacity, roll weight 1: 6,800 g
Borderless printing enabled: 20 inches, 10" roll 25.4 cm, 17" roll 43.1 cm and 24" roll 60.9 cm

Comprehensive connectivity and flexible print sources
The printer is ready to integrate into modern work environments thanks to its USB, Ethernet and WiFi 5 connections. It also supports printing from PC, Mac, network, mobile devices, the cloud and direct USB, making work easier in offices, studios and departments where several users need access to the device.

Print sources: PC, Mac, network, mobile device, cloud and direct USB
High-speed USB compatible with specification USB 2.0
Ethernet interface: 1000 Base-T, 100-Base TX and 10-Base-T
IEEE 802.11a/b/g/n/ac WiFi 5 wireless LAN
Network: wired and wireless
Mobile and cloud printing services: Apple AirPrint, Epson Cloud Solution PORT and Epson Smart Panel App
Integrated Bluetooth

Touchscreen, direct USB and advanced features
The colour LCD touchscreen makes everyday operation easier, while direct printing from USB lets you work without always relying on a computer. It also includes driver preview and nozzle verification technology, designed to improve reliability in professional printing.

Color LCD screen
Touch panel
Screen diagonal: 11 cm
Direct printing from USB
Driver preview
Nozzle verification technology
MEMORY : 4 GB

Security and management for professional environments
This model includes a comprehensive range of security and control features, particularly useful in corporate environments or shared departments. It includes encryption, authentication, user control and compatibility with various network protocols, helping to protect information and manage access to the device.

Security: SNMP, IPSec, AES-128 and AES-256
Data storage encryption
Data encryption
WPA3
NFC reader for card authentication
TPM Trusted Platform Module
PIN code release
Image overwrite
User authorisation
LDAP
IEEE802
SSL/TLS

Optional Epson software and solutions
The printer is compatible with various Epson software solutions for print management, automation, administration and control. These tools make it possible to adapt the device to more complex professional workflows, from print accounting to centralised administration.

Optional software and solutions: Epson Print Automate
Epson Edge
Epson Cloud Solution PORT
Epson Print Layout
Epson LFP Accounting Tool
Epson Device Admin
Epson Edge Dashboard
Epson Print Admin
Epson Print Admin Serverless

Robust design for professional production
With dimensions of 1.365 x 499 x 975 mm and a weight of 115,2 kg, this printer is designed for professional installations requiring a stable device ready for large-format jobs. Its power consumption of 70 W during operation and 0,3 W in standby helps ensure efficient use within its category.

Product dimensions: 1,365 x 499 x 975 mm
Weight: 115,2 kg
Power consumption : 70 W
Standby power consumption : 0,3 W
Supply voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
Operating sound power : 46 B A
Standby acoustic power : 6,3 B A

Operating system compatibility
The Epson SureColor P-Series is compatible with current Windows and macOS systems, making it easy to integrate into professional workstations, creative studios and technical departments using different computing platforms.

Compatible operating systems: Mac OS X
Compatible with Windows 10
Compatible with Windows 11
Compatible with macOS 11 or later

Included contents and optional accessories
The device includes the items required for setup, such as an ink set, maintenance box, documentation and warranty. Optional accessories are also available to expand its capabilities, including a 1 TB SSD, production stacker or additional 24" paper roll spindle.

Includes ink set
Includes maintenance box
Includes maintenance boxes
Includes installation instructions
Includes SureColor P-Series printer
Includes user manual on CD
Includes warranty documents
Optional extras: Cover Plus warranty extensions
Optional extra: SSD solid-state drive
Optional extra: production stacker
Optional extra: paper roll feed spindle, 60.9 cm 24 in
Optional storage: SSD of 1 TB

Other specifications

Product designed for professional large-format printing
Pigment ink technology
Compatible with LUT and ICC Profile colour profiles
Included emulations: ESC/P-R, PDF 1.7, HP-GL2 and RTL
Key features: touchscreen, Bluetooth, direct printing from USB, driver preview and nozzle verification technology
Interfaces: high-speed USB, Ethernet and WiFi 5 wireless
Compatible services: Apple AirPrint, Epson Cloud Solution PORT and Epson Smart Panel App
Volume (m ³): 1.3469
