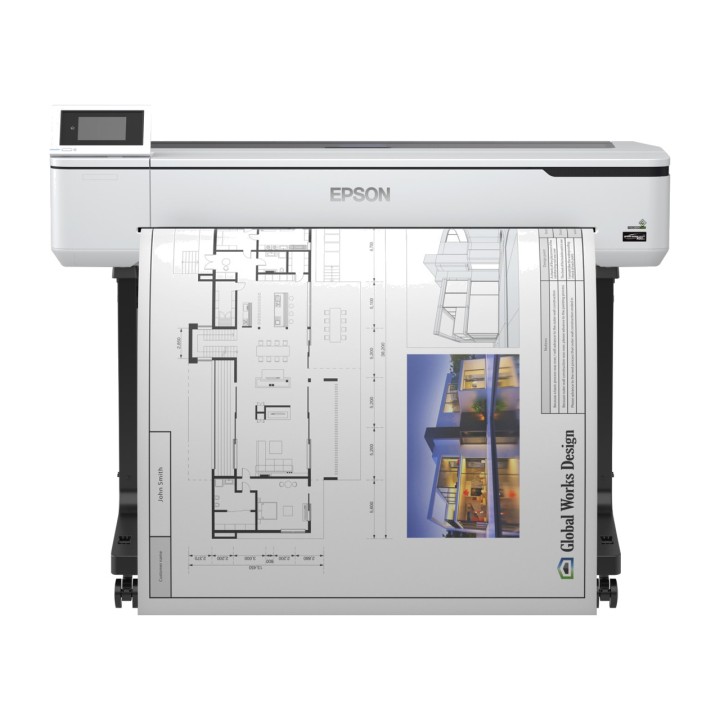

EPSON Large-format plotter with stand SURECOLOR-SC-T5100 36-PULGADAS A0 C11CF12301A0

Features of the Epson 36" technical printer with PrecisionCore
The Epson 36" technical printer is designed for professional environments that need to work with plans, CAD documents, graphics, signage and large-format media with precise, reliable printing. Thanks to its PrecisionCore printhead, Ultrachrome XD2 ink and compatibility with formats up to A0 and 36", it offers a versatile solution for architecture and engineering firms, design studios, technical offices and professional workspaces where productivity and visual quality are essential.
Flexible format with included stand
This model stands out for its flexible installation options: it can be used as a desktop unit or floor-mounted thanks to the included printer stand. Its clean design is intended to blend naturally into most professional environments, offering a neat and functional presence.

Available as a desktop unit or for floor mounting
Printer stand included
Clean design for offices, studios and technical workspaces
Product dimensions: 1,268 x 696 x 913 mm
Weight: 46 kg

Precise printing with PrecisionCore printhead
The PrecisionCore printhead delivers sharp results on technical documents, plans and large-format graphics. Its resolution of up to 2,400 x 1,200 dpi, combined with variable-size ink droplet technology, helps reproduce lines, text and details with excellent definition.

Printing method: PrecisionCore printhead
Print resolution: 2,400 x 1,200 dpi
Maximum droplet size: 4 pl
Variable-size ink droplet technology

Ultrachrome XD2 ink for professional work
Ultrachrome XD2 ink technology uses four separate colours to deliver professional colour and monochrome prints. This configuration is designed for technical documents, plans, presentations and graphics where clarity and consistent results are important.

Ink technology: Ultrachrome XD2
Colours: magenta, yellow, cyan and black
Ink tank capacity: 50 ml
Nozzle configuration: 800 black nozzles
Nozzle configuration: 800 nozzles per colour

Large format up to A0 and 36"
This printer supports a wide variety of formats, from standard sizes such as A4 and A3 to large professional formats such as A0, A1, B1 and 36". It is suitable for users who need to print plans, diagrams, posters or large-area technical documents.

Compatible formats: A0, A1, A2, A2+, A3+, A3 and A4
Compatible formats: B1, B2, B3, B4 and B5
Compatible with 17" 43.2 cm
Compatible with 24" 61.0 cm
Compatible with 36" 91.4 cm
Suitable paper thickness: 0.05 mm - 0.27 mm

Reduced margins and integrated media handling
The printer is designed to handle both sheets and paper rolls, maintaining 3 mm margins on all sides. It also features an automatic document feeder, an automatic cutter and paper roll handling to streamline everyday workflows.

Print margins with sheets: 3 mm top, right, bottom and left
Roll media print margins: 3 mm top, right, bottom and left
Built-in standard automatic document feeder
Automatic cutter
Roll paper media handling

Fast first-page output
With a first-page output time of 31 seconds in both monochrome and color, this device helps maintain an efficient workflow in technical offices and departments where large-format documents are regularly printed.

First page in monochrome: 31 seconds
First page in color: 31 seconds
Printer memory : 1 GB
Emulations: RTL, HP-GL2 and ESC/P-R

Touchscreen and easy operation
The color LCD touchscreen makes it easy to manage the printer, even when using it away from the office. Its interface provides easy access to key functions and contributes to a more straightforward user experience in professional environments.

Color LCD screen
Integrated touchscreen
Screen diagonal: 10.9 cm
Easy to use, even away from the office
Direct scanning for printing without a PC

NVT technology for greater peace of mind
NVT’s exclusive nozzle verification technology helps prevent printing errors, which is particularly important for technical work where output accuracy is essential. This feature provides greater confidence when printing plans, CAD documents and professional work.

NVT injector verification technology
Helps prevent printing errors
Suitable for technical documents and precision work

Full connectivity for office environments
The printer offers several connection options to suit different network configurations and workstations. It includes Wi-Fi Direct, wireless networking, Gigabit Ethernet and USB 3.0, as well as Apple AirPrint compatibility for mobile and cloud printing.

Wi-Fi Direct
IEEE 802.11b/g/n wireless LAN
Gigabit Ethernet interface
USB 3.0
Mobile and cloud printing services: Apple AirPrint

Efficient power consumption and controlled noise level
This device keeps power consumption low for a large-format technical printer, using 28 W in operation and just 0.2 W when disconnected. In addition, its operating noise level is 49 dB A, allowing it to be integrated into professional workspaces.

Power consumption : 28 W
Standby power consumption : 8 W
Power consumption when switched off : 0,2 W
Supply voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
Operating noise level: 49 dB A
Standby noise level: 32 dB A
Operating sound power : 7,5 B A

Compatibility with Epson systems and scanners
The printer is compatible with various versions of Windows and Mac OS X, making it easy to integrate into standard computer setups. It also supports direct scanning for PC-free printing via compatible models, although the scanner is not included in the delivery.

Compatible operating systems: Mac OS X 10.6.8 or later
Compatible with Windows 10, Windows 8, Windows 7, Windows Vista and Windows XP
Scanner not included in the delivery
Compatible models: Epson WorkForce DS-6500
Compatible models: Epson WorkForce DS-60000

Included contents and warranty
The device includes the accessories required for initial installation, such as a power cable, drivers, individual ink cartridges, a paper stacker and a printer stand. It also comes with a 12-month on-site service warranty, an important advantage for professional environments that need operational continuity.

AC cable included
Drivers and utilities on CD
Individual ink cartridges
Equipment included
Paper stacker included
Printer stand included
Installation instructions
User manual on CD
Warranty certificate
Warranty: 12 months with on-site service

Other specifications

Product features and specifications are subject to change without notice
Key features: touchscreen and direct scanning for printing without a PC
Available as a desktop unit or for floor mounting
Designed to suit most professional environments
Built-in standard automatic document feeder
Interfaces included: Wi-Fi Direct, wireless LAN, Gigabit Ethernet and USB 3.0
Volume (m ³): 0.6704
