HP Large-format multifunction plotter with scanner and Wi-Fi DESIGNJET-T830 24" A1 MFP DSP0000029033

Features of the HP DesignJet T830 24" Multifunction Printer

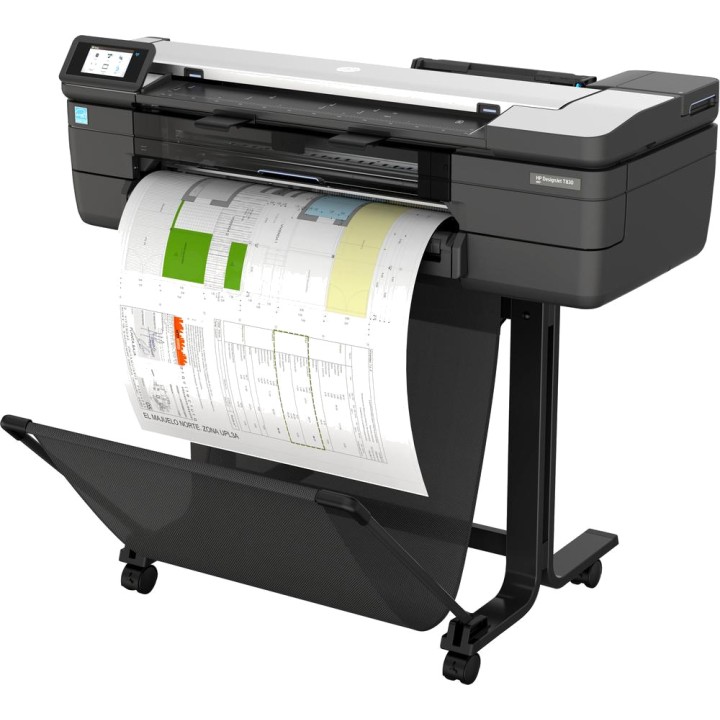

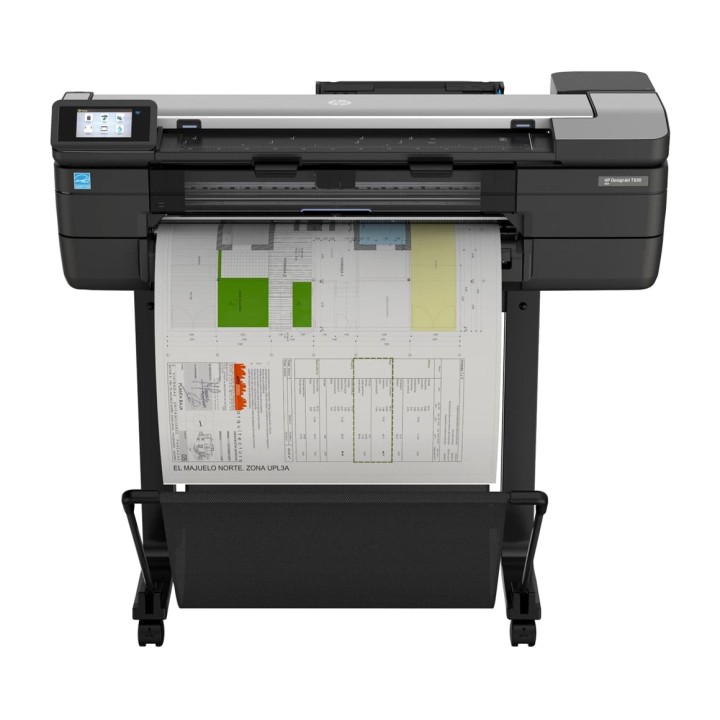

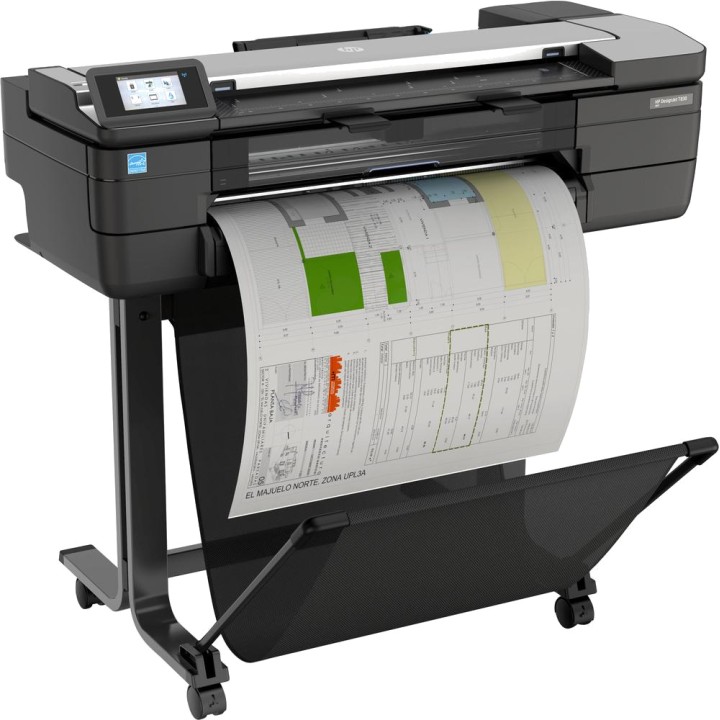

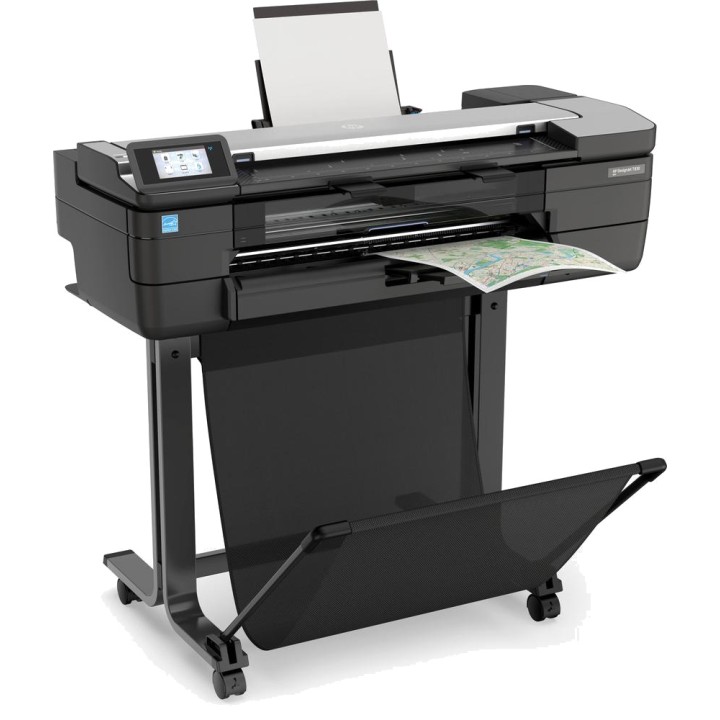

The **24-inch HP DesignJet T830** is a multifunction plotter designed for technical professionals who need **large-format printing, scanning and copying**, all in one device. Its advanced connectivity, compact design and high precision make it ideal for architecture, engineering and construction firms, offering an all-in-one solution that saves space and improves workflow.
Professional multifunction printer for technical environments
This model combines three key functions in one device: **printing plans, scanning technical documents and copying projects**, with no need for additional devices. Its ease of use and precision make it a versatile tool for collaborative work.

Integrated functions: printing, copying and scanning
Scanner with front feed and jam detection
Copy reduction/enlargement: from 50% to 400%

Precise, detailed print quality
Thanks to HP thermal inkjet technology, this plotter achieves a **resolution of up to 2400 x 1200 dpi**, ideal for reproducing fine lines and complex details. Its 4-individual-cartridge system enables efficient colour management and a lower cost per page.

Line accuracy: ±0,1%
Guaranteed minimum line width: 0.07 mm
Maximum print size: A1 (610 mm wide)

Full connectivity for collaborative environments
The HP DesignJet T830 is ready to adapt to any work environment thanks to its Wi-Fi, Ethernet and mobile printing features. It is also compatible with cloud solutions and allows scanning directly to devices or email.

Wi-Fi Direct, HP ePrint, Apple AirPrint and HP Smart app
Integrated Gigabit Ethernet
Scan to USB, network, PC, mobile device, cloud and email

Fast, efficient scanning
The sheet-fed scanner can digitise plans and technical documents with great clarity, even in formats up to 2.77 metres long. Ideal for digitising and sharing information directly from the same device.

Optical resolution: up to 600 dpi
Scan speed: up to 11.43 cm/s (black and white)
File formats: JPEG, PDF, TIFF

Compact and efficient design
Despite its advanced functionality, the T830 has a compact design with an included stand, ideal for offices with limited space. Its flexible media handling also allows it to work with a wide variety of technical and photographic papers.

Compatible sizes: A4 to A1
Media types: bond, coated, photo, adhesive
Includes automatic horizontal cutter

Professional software and compatibility
The device includes tools such as HP Click and HP Smart to simplify printing and job management, and is compatible with both Windows and macOS. It is ready for demanding professional environments with optimised drivers.

HP Click, HP Smart, HP DesignJet Utility
COMPATIBLE WITH HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4
No internal hard drive included

Reliability backed by HP
The printer is backed by a **1-year limited warranty** and is designed to work exclusively with original HP cartridges, always ensuring maximum print quality and long-term performance.

Includes printhead, cartridges and stand
Compatible with HP 728 cartridges up to 300 ml
Designed for high volumes: up to 90 A1 prints per week

Other specifications

MEMORY : 1 GB
Power consumption: 35 W printing / 3.5 W standby
Weight: 46.7 kg (65.7 kg with packaging)
Dimensions: 1098 x 605 x 1155 mm
Maximum roll input: 1 / Max. roll weight: 4.1 kg
Media thickness: up to 0.3 mm (printing), 0.8 mm (scanning)
Volume (m ³): 0.4794
