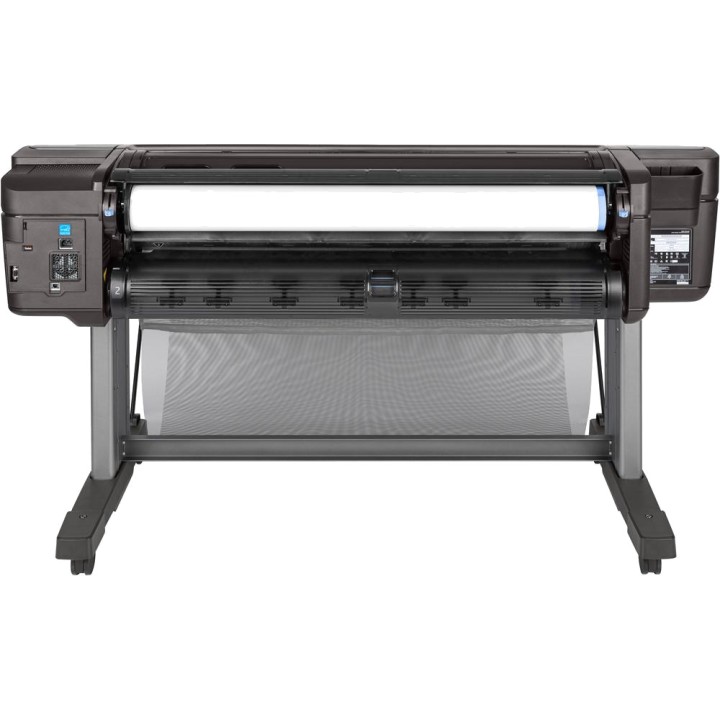

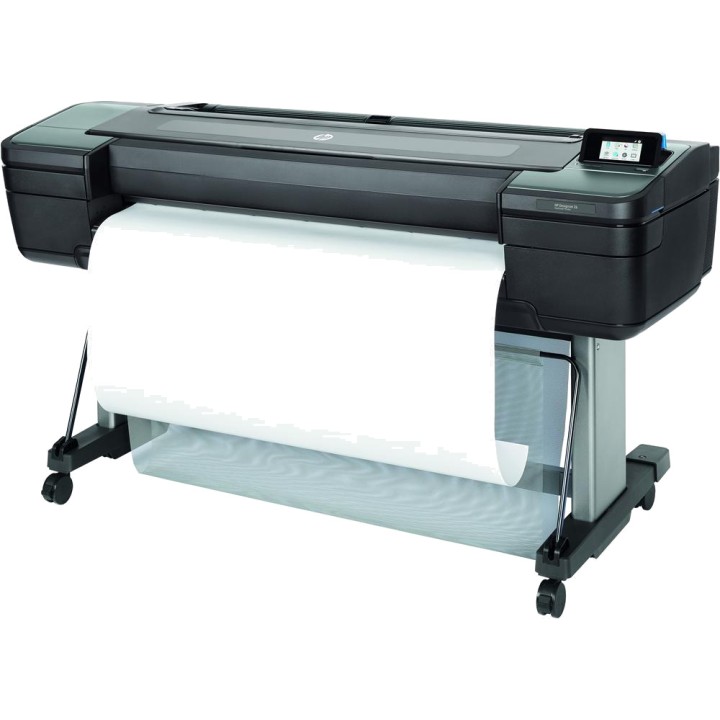

HP Large-format photo plotter with pigment inks DESIGNJET-Z6-POSTSCRIPT 24" A1 DSP0000028335

Features of the HP DesignJet Z6 PostScript 24" (T8W15A)
The 24" HP DesignJet Z6 PostScript (T8W15A) is a large-format printer designed for users seeking high precision, color control and a professional printing workflow. Thanks to its HP Thermal Inkjet technology, 6-color pigment-based ink configuration and extensive connectivity options, this model is ready to produce high-quality work on a variety of media. It also features advanced security functions, self-encrypting internal storage and software tools designed for demanding environments.
Print speed and quality for large-format jobs
This printer combines performance and definition to meet a range of production needs. It offers several speeds depending on the type of media used and achieves an optimal color resolution of up to 2400 x 1200 dpi, delivering detailed results in both graphics and fine lines. It also stands out for its line accuracy of ±0,1 %, which is especially useful when precision is required.

Fast print speed: 66,9 m²/h on plain media
Normal print speed: 15,2 m²/h on coated media
Best print speed: 7,9 m²/h on glossy media
Color print quality (best): Up to 2400 x 1200 dpi
Maximum black optical density: 4 L* min /2,5 D
Line accuracy : ±0,1 %
Theoretical minimum line width: 0,02 mm (PDF addressable at 1200 dpi)
Guaranteed minimum line width: 0,08 mm (ISO/IEC 13660:2001(E))

6-color ink system and universal printheads
The HP DesignJet Z6 PostScript is equipped with a system of 6 pigment-based ink cartridges, designed to deliver precise and consistent color reproduction. Its 3 universal printheads, suitable for all colors, simplify maintenance and enable efficient operation in professional environments. The high number of nozzles contributes to uniform, detailed printing.

Ink types: pigment-based
Number of cartridges: 6 (Cyan, Magenta, Yellow, Matte Black, Photo Black and Chroma Red)
Printheads: 3 universal printheads
Printhead nozzles: 2112 per color, 12,672 in total
Supplied cartridge volume: HP 746, 300 ml

Versatile media handling for different jobs
This model offers flexible media handling, making it easy to work with different materials and formats within the supported range. It features roll feed, rear sheet input, an output tray and an automatic horizontal cutter, a highly practical combination for maintaining a more convenient and orderly workflow.

Finished print handling: roll feed, rear sheet feed, output tray and automatic horizontal cutter
Standard media sizes: 279 to 610 mm
Roll outer diameter: 135 mm
Maximum roll input : 1
Maximum roll weight: 7.5 kg
Media thickness: up to 800 microns (0.8 mm)
Recommended media weight: 80 to 500 g/m²

Recommended media to expand printing possibilities
Compatibility with several HP-recommended media makes it possible to adapt printing to the job at hand. From photographic materials to canvas or synthetic media, this selection helps maintain quality and consistency across different finishes.

HP Universal Satin Photo Paper (recyclable, FSC® certified)
HP Matte Artist Canvas
HP heavyweight coated paper (FSC® certified)
HP Everyday matte polypropylene (recyclable)
HP Premium matte photo paper (FSC® certified)

Professional connectivity and network readiness
Integrated connectivity is designed to make it easy to integrate the printer into shared work environments. It features Gigabit Ethernet and Hi-Speed USB 2.0, including direct printing from a USB flash drive, for greater convenience in everyday use. It is also network-ready.

Standard connectivity: Gigabit Ethernet (1000Base-T)
Interface: Hi-Speed USB 2.0
Additional feature: printing from a USB flash drive
Network-ready: yes

Advanced security for professional environments
One of this model’s key strengths is its range of security features, designed to strengthen access control, information protection and device management. This makes it a particularly suitable choice for organizations that need equipment offering greater protection and management safeguards.

HP Secure Boot
Whitelists and role-based access control
SNMPv3, HTTPS, secure IPP
IPsec/Firewall and certificate management
802.1X, TLS 1.0/1.1/1.2
HP Web Jetadmin and HP JetAdvantage Security Manager
Secure disk erasure (Do D 5220.22-M)
PIN printing

Mobile printing and software to optimize workflow
The HP DesignJet Z6 PostScript also includes options designed to make print management more flexible. It supports printing from mobile devices, email or directly from a USB flash drive, and comes with various software tools for administration, security and production.

Mobile printing capability: Apple AirPrint
Direct printing from a USB flash drive
Email printing
Compatible with HP Click, HP SmartStream, HP Smart App and HP Print Service Plugin for Android
Included software: HP Click, HP PrintOS, HP Web Jetadmin, HP DesignJet Utility with HP Color Center
Optional software: HP JetAdvantage Security Manager, HP SmartStream and HP SmartTracker

Memory, storage and equipment design
This model features a configuration designed for intensive use, with 128 GB of virtual memory and 500 GB of self-encrypting internal storage. It also features a professional-format design, with generous dimensions and a structure built to withstand daily use with large-format media.

Virtual memory : 128 GB
Internal storage: 500 GB self-encrypting
Minimum dimensions (Width x Depth x Height): 1293 x 695 x 998 mm
Packaging dimensions: 1440 x 766 x 718 mm
Equipment weight: 66 kg
Packaging weight: 97 kg

Energy consumption and certifications
The printer has been designed to deliver efficient operation within its category. It complies with various energy, environmental, electromagnetic and safety regulations, making it well suited to professional environments that value both performance and regulatory compliance.

Power consumption during printing: < ,100 W
Power consumption in ready mode: < ,32 W
Power consumption in sleep mode: < ,6.5 W
Power consumption when off : 0,1 W
Input voltage: 100-240 V (±10 %), 50/60 Hz, 2 A max.
Energy Star certification: yes
Environmental certifications: ENERGY STAR, ErP, WEEE, RoHS (EU, China, Korea, India), REACH, EPEAT
Electromagnetic compatibility: Class A (FCC, ICES, CE, ACMA, RSM, CCC, VCCI, KCC, SABS)
Safety: CSA, LVD and EN 60950-1, EAC, PSB, CCC, IRAM, BIS

Warranty and box contents
The HP DesignJet Z6 PostScript comes with the items required for setup and includes a 1-year limited hardware warranty. This makes initial installation more convenient and enables rapid deployment in the work environment.

Manufacturer's warranty: 1-year limited hardware warranty
Box contents: HP DesignJet Z6 PostScript printer
Printhead and initial ink cartridges
Printer stand and media bin
AXIS
Quick Reference Guide and installation poster
power cord
Volume (m ³): 0.7615
