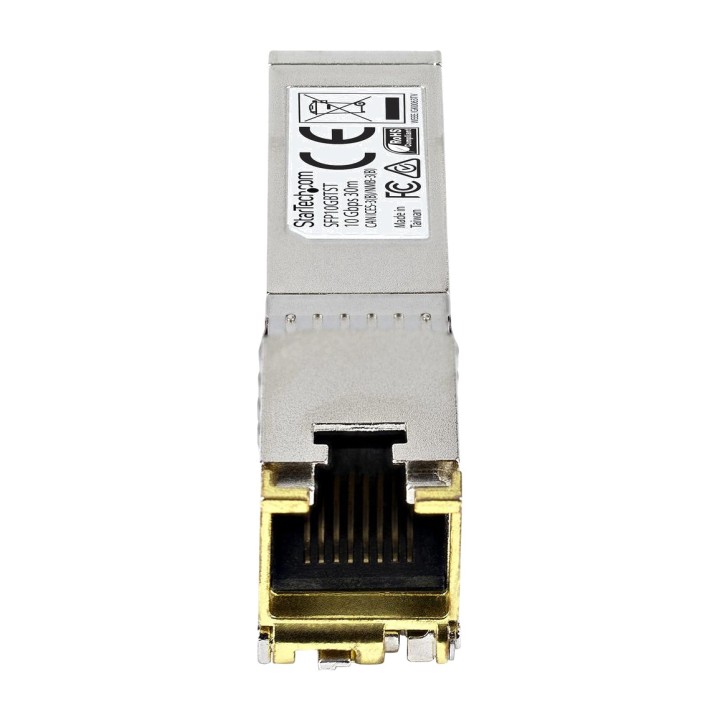

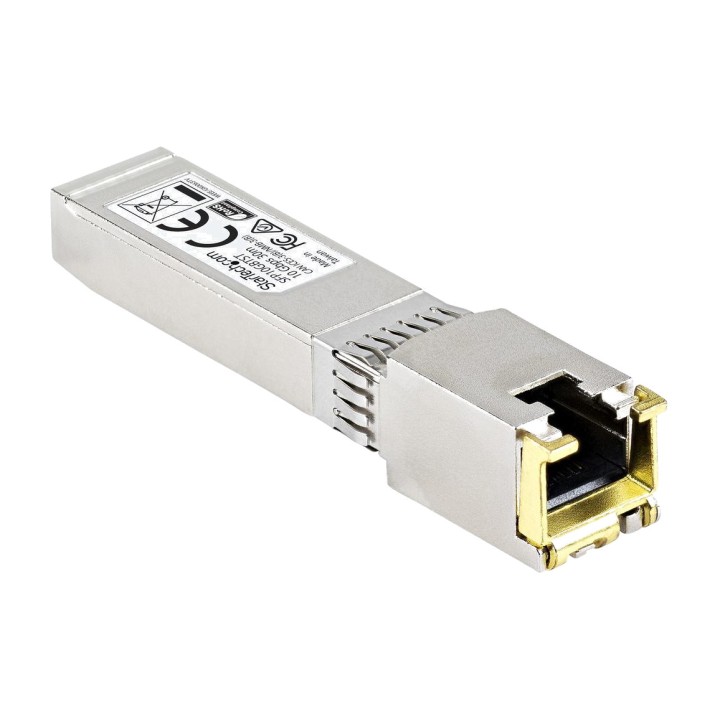

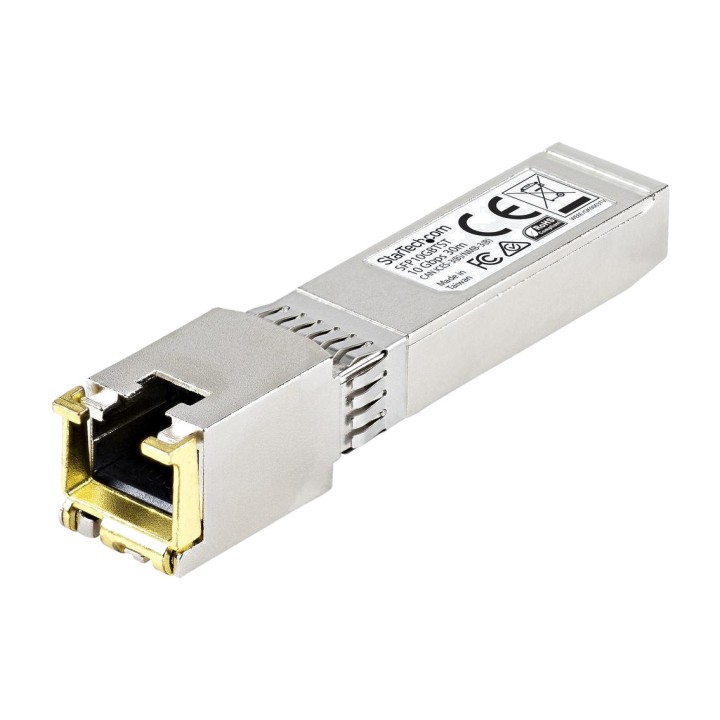

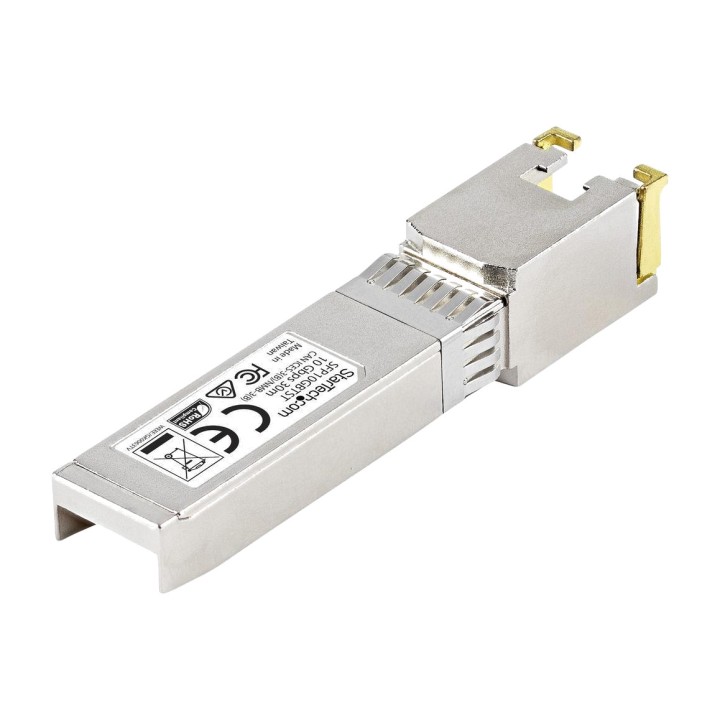

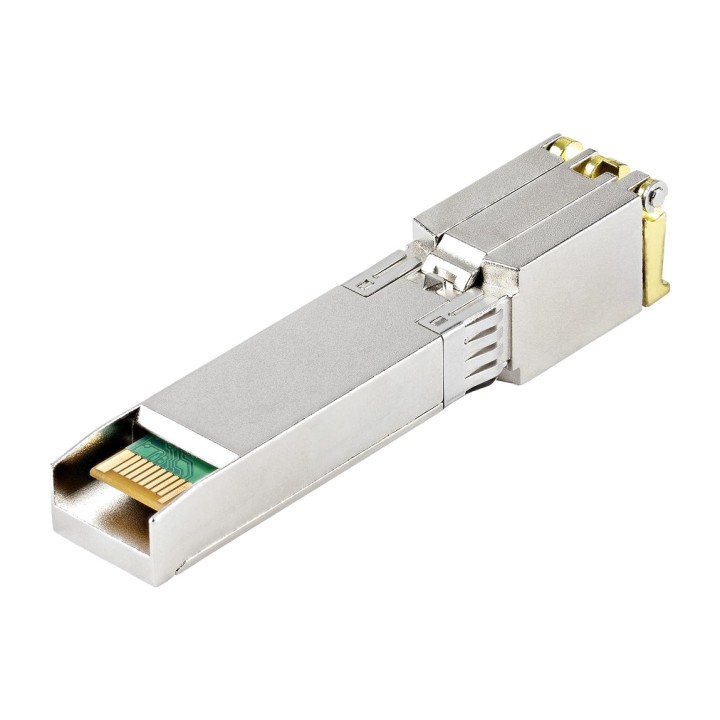

STARTECH.COM 10 Gigabit RJ45 copper SFP+ transceiver module SFP10GBTST 10GBASE-T 30M DSP0000043641

Features of the StarTech SFP10GBTST 10GBASE-T RJ45 30m SFP+ Transceiver Module
The StarTech SFP10GBTST SFP+ transceiver module expands network connectivity with a 10 Gbps Ethernet connection over RJ45 copper cabling. Designed for devices compatible with the uncoded MSA standard, it offers a practical solution for connecting switches and routers to 10GBASE-T networks. It supports distances of up to 30 metres, Full-Duplex operation and connection via Cat6 or Cat5e cables, and comes with a lifetime warranty.
10 Gbps Ethernet connectivity via RJ45
This transceiver converts an SFP+ port into a high-speed RJ45 Ethernet interface, making it easy to integrate copper connections into compatible network infrastructures. Thanks to the IEEE 802.3an 10GBASE-T standard, it supports data transfers of up to 10 Gbps and Full-Duplex communication for simultaneous data transmission and reception.

Maximum speed: 10 Gbps.
Standard: IEEE 802.3an 10GBASE-T.
CONNECTOR : 1 x RJ45.
Host interface: SFP+.
Transmission medium: cobre.
Maximum distance: 30 metres (98.4 feet).
Operating mode: Full-Duplex.
Automatic MDIX: sí.

MSA compatibility with switches and routers
The StarTech SFP10GBTST is designed, programmed and tested to work with devices that support MSA-compatible SFP+ transceivers without vendor-specific coding. It can be used with certain models from manufacturers such as Ubiquiti, D-Link, Netgear, Supermicro and TP-Link, provided they allow the use of uncoded modules.

Compatibility: MSA-compatible devices.
System requirement: MSA-compatible SFP+ port.
Compatible manufacturers: Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and other devices that support uncoded transceivers.
Hot-swappable: compatible with switches and routers that support this feature.
Digital Diagnostic Monitoring (DDM): Not supported, according to the datasheet.

Compact design and low power consumption
Its compact SFP+ form factor and zinc alloy housing make it easy to install in network equipment with limited space. Weighing just 28 grams and with a maximum power consumption of 2.3 W, it is suitable for expanding network connections without the need for external conversion equipment.

Material: Zinc alloy.
COLOR: plata.
Dimensions: 70 x 13.9 x 12.6 mm (length x width x height).
Weight: 28 g.
Maximum power consumption : 2,3 W.

Reliability and operating conditions
Designed for integration into professional network infrastructures, this transceiver supports operating temperatures from 0 to 70 °C and a wide range of relative humidity. Its MTBF of 4,598,430 hours is an estimated reliability indicator that helps assess its suitability for continuous-use network installations.

Operating temperature: 0 to 70 °C (32 to 158 °F).
Storage temperature: -40 to 85 °C (-40 to 185 °F).
Relative humidity: From 5 to 95 %.
MTBF: 4,598,430 hours.
Warranty: lifetime.

Package contents and other specifications
The StarTech SFP10GBTST is supplied in an individual package containing an SFP+ transceiver ready to install in a compatible port. Its compact packaging makes it easy to store and distribute for network expansion or maintenance projects.

MODEL: SFP10GBTST.
UPC: 065030873376.
Quantity per pack: 1 unit.
Contents: 1 SFP+ transceiver.
Package width: 76 mm.
Package depth: 119 mm.
Package height: 34 mm.
Package weight: 56 g.
