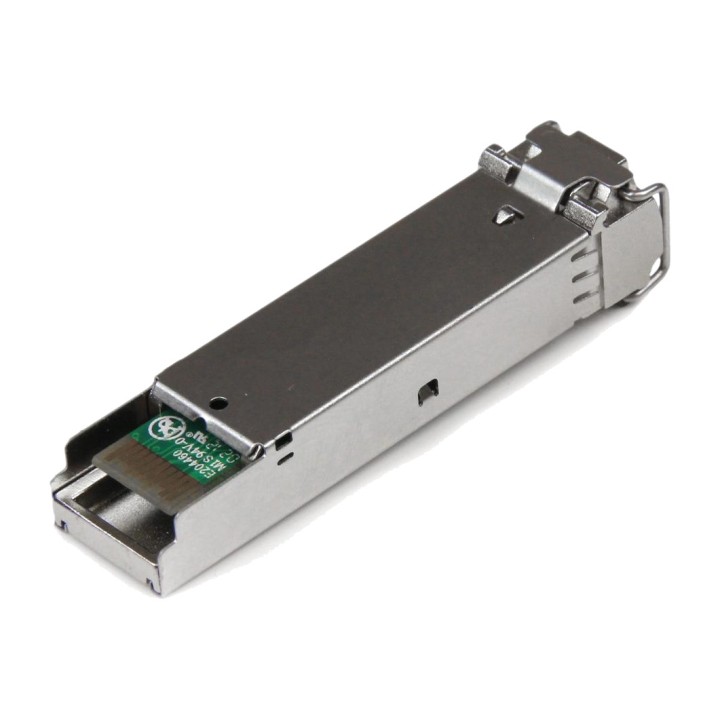

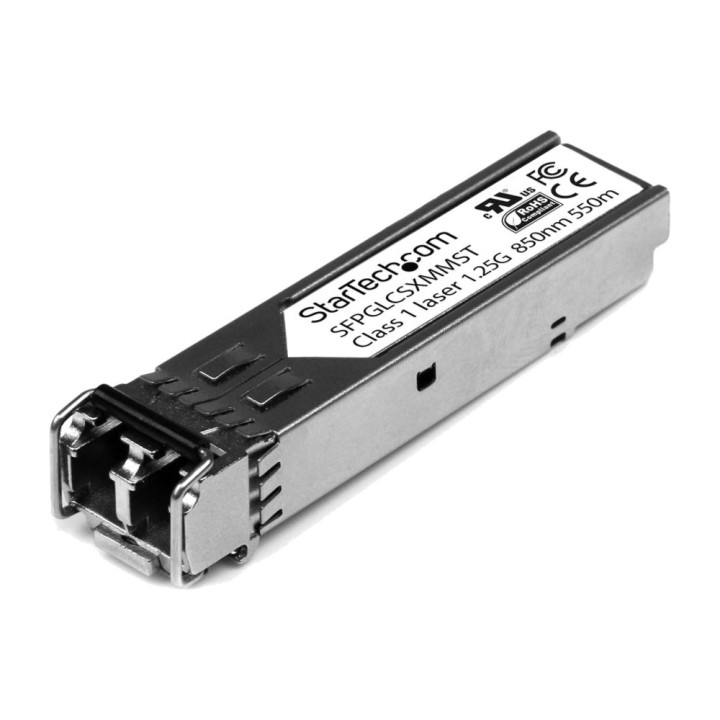

STARTECH.COM Cisco-compatible multimode fibre-optic SFP transceiver module SFPGLCSXMMST-1000BASE-SX 850NM 550M DSP0000043637

Features of the StarTech SFPGLCSXMMST SFP Transceiver Module Compatible with Cisco GLC-SX-MM
The StarTech SFPGLCSXMMST SFP transceiver module is a fibre-optic connectivity solution designed to extend or replace Gigabit Ethernet connections in Cisco network equipment. Compatible with the Cisco GLC-SX-MM model, it uses the 1000BASE-SX standard and multimode fibre to provide 1 Gbps connections over distances of up to 550 metres. Its duplex LC connector, 850 nm wavelength and compatibility with devices from different manufacturers make it a versatile alternative for enterprise and industrial network infrastructures.
Compatibility with Cisco and other manufacturers
This transceiver is designed to be compatible with Cisco GLC-SX-MM and has been tested to work with host devices from the manufacturer. It enables fibre-optic connections in compatible switches and routers, including various models in the Cisco IE industrial series. It can also be used with equipment from other manufacturers that supports MSA-compatible SFP modules and uncoded transceivers.

Model: StarTech SFPGLCSXMMST.
Compatible Cisco part number: GLC-SX-MM.
Compatible Cisco models: IE3400, IE3300, IE3200, ME1200 and ME2400, among others.
Other compatible manufacturers: Ubiquiti, D-Link, Netgear, Supermicro and TP-Link, on equipment that supports uncoded modules.
Requirements: SFP port compatible with Cisco or the MSA standard.
Applications: Fibre-optic network equipment and Gigabit media converters.

Gigabit Ethernet connectivity over multimode fibre
Thanks to the IEEE 802.3z 1000BASE-SX standard, this transceiver enables Gigabit Ethernet links over multimode fibre-optic cable. It operates at a wavelength of 850 nm and supports transmission distances of up to 550 metres, making it suitable for connecting network devices located in different rooms, floors or areas of an installation.

Network standard: IEEE 802.3z 1000BASE-SX.
Network speed: 1000 Mbps (1 Gbps).
Maximum data transfer rate: 1.25 Gbps.
Fibre type: Multimode (Multi Mode).
Wavelength: 850 nm.
Maximum distance: 550 m (1804 feet).
Operating mode: Half/Full-Duplex.
Wavelength-division multiplexing (WDM): No.

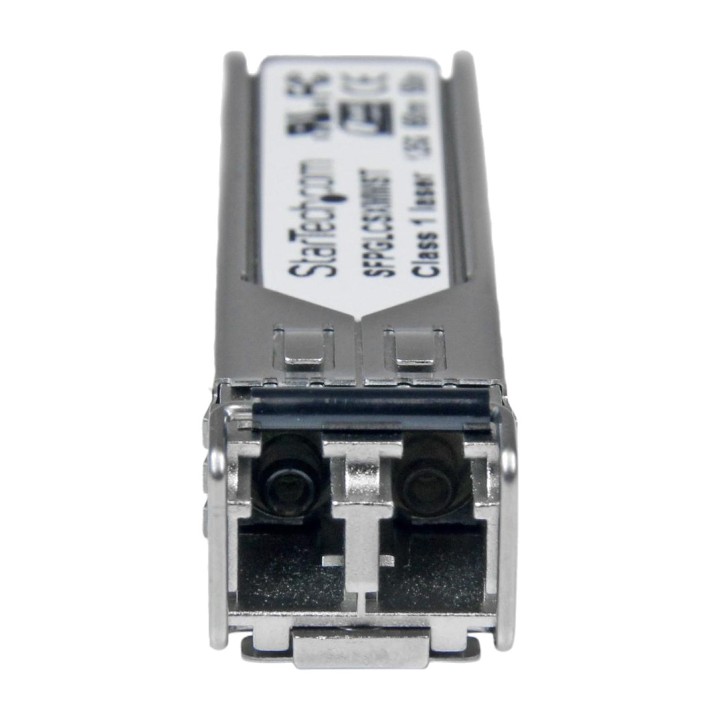

Duplex LC connector and hot-plug installation
The module features a duplex LC fibre-optic interface that facilitates integration into multimode cabling infrastructures. Its SFP design allows hot-plugging in compatible devices, simplifying the installation, maintenance and replacement of transceivers without having to switch off the host equipment.

Form factor: SFP (Small Form-factor Pluggable).
Fibre connector: duplex LC.
Number of fibre interfaces: 1.
Installation: Hot-swappable (Hot-Swap).
Digital diagnostics monitoring (DDM): Not supported.

Low power consumption and reliability
Designed for use in communications equipment, the transceiver operates on a 3,3 V DC power supply and has a power consumption of less than 1 W. These features support its integration into installations with multiple fibre-optic links. It also has a high mean time between failures (MTBF), an indicator of reliability for network applications.

Power supply voltage : 3,3 V CC.
Power consumption: Less than 1 W.
MTBF: 3.381.761 hours.
Warranty: lifetime.

Compact design and environmental resistance
Its steel metal housing and compact form factor allow it to be installed in SFP ports without taking up additional space in the equipment. Measuring 60 x 12 x 10 mm and weighing just 16 grams, it is suitable for switches and other network devices. It is designed to operate in a temperature range of 0 °C to 70 °C, adapting to different installation conditions.

Material: Steel (Steel).
COLOR: Plata.
Dimensions: 60 x 12 x 10 mm (length x width x height).
Weight: 16 g.
Operating temperature: from 0 °C to 70 °C (32 °F to 158 °F).
Storage temperature: From -40 °C to 85 °C (-40 °F to 185 °F).
Relative humidity: 30% to 70 %.

Package contents and other specifications
The StarTech SFPGLCSXMMST is supplied as a single unit, ready to be installed in a compatible SFP port. Its form factor makes it easy to replace existing transceivers or expand multimode fibre connections in Gigabit Ethernet networks.

Contents: 1 1.25 Gbps LC multimode fibre SFP transceiver.
Quantity per pack: 1 unit.
Product ID: SFPGLCSXMMST.
UPC: 065030849692.
Package width: 11.2 cm.
Package depth: 90 mm.
Package height: 33 mm.
Shipping weight: 48 g.
