STARTECH.COM HPE-compatible RJ45 copper SFP transceiver module J8177CST 1000BASE-T 100M DSP0000043632

Features of the HPE J8177C-compatible 1000BASE-T RJ45 1Gbps SFP Transceiver Module
The HPE J8177C-compatible J8177CST SFP transceiver module enables Gigabit Ethernet network connections over copper cabling with an RJ45 connector. Designed for network equipment with compatible SFP ports, it offers a transfer rate of up to 1000 Mbps and a maximum range of 100 metres using Cat5e or Cat6 cables. It is a practical solution for expanding the connectivity of switches and other network devices, and is compatible with various HPE models and equipment that supports MSA transceivers.
Gigabit Ethernet connectivity up to 100 metres
Thanks to the IEEE 802.3ab 1000BASE-T standard, this transceiver enables 1 Gbps Ethernet connections over copper cabling. Its RJ45 interface makes it easy to integrate into existing network infrastructures without the need for fibre-optic connections. It also features automatic MDIX to facilitate connections between compatible devices.

Network standard: IEEE 802.3ab 1000BASE-T.
Maximum speed: 1000 Mbps (1 Gbps).
Maximum distance: 100 metres (328 feet).
Transmission medium: Cat5e copper cable or Cat 6.

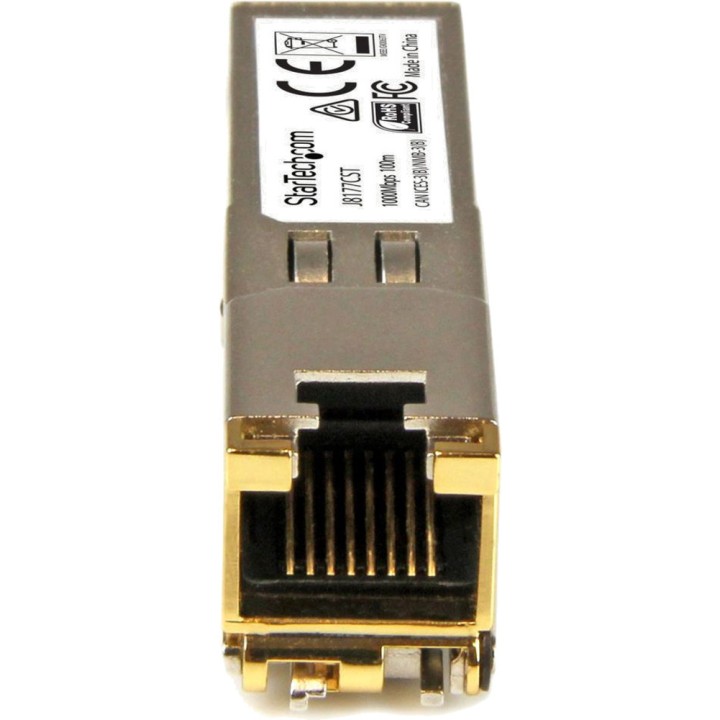

CONNECTOR: RJ45.
Automatic MDIX: Sí.

Compatible with HPE switches and MSA devices
The J8177CST transceiver is designed as a compatible alternative to the HPE J8177C model. It can be used with various HPE switch families, such as the 1810, 1820, 2530, 2610 and 2620 series. It can also be installed in certain equipment from other manufacturers that incorporates MSA-compatible SFP ports and allows the use of third-party modules.

Product reference: J8177CST.
Equivalent HPE model: J8177C.
Compatible primary brand: HPE.
Compatible HPE series: 1810, 1820, 2530, 2610 and 2620, among others.
Other compatible brands: Ubiquiti, D-Link, Netgear, Supermicro and TP-Link, in models that support third-party MSA transceivers.
Requirements: MSA- or HP-compatible SFP port.
Applications: Compatible Gigabit Ethernet equipment and media converters.

Flexible installation and hot swapping
Its hot-swappable SFP form factor allows the transceiver to be installed or replaced in compatible equipment without having to power off the host device. This feature simplifies network maintenance and expansion, especially in professional environments where minimising service interruptions is important.

Form factor: SFP transceiver to RJ45.
Installation: Hot-swappable in compatible devices.

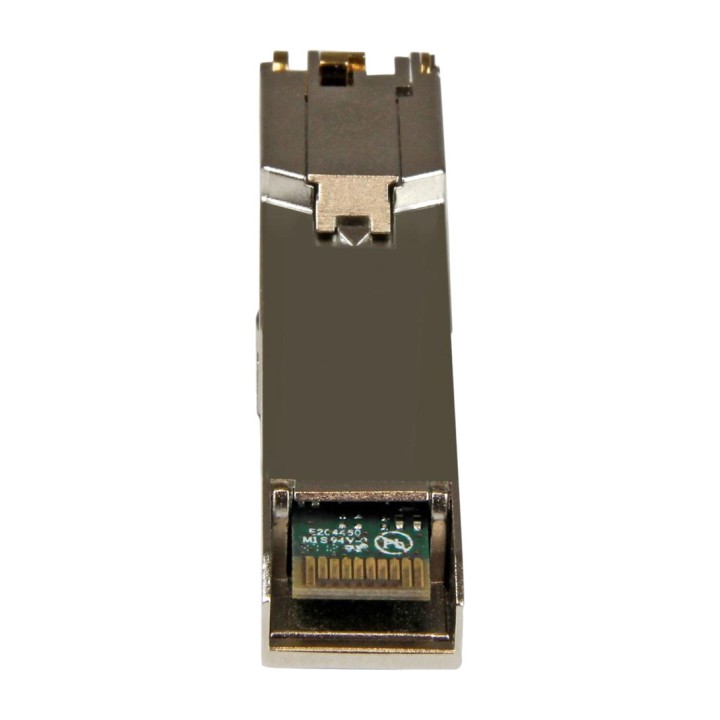

Connection interface: Host device SFP port and Ethernet connector RJ45.
Digital Diagnostic Monitoring (DDM): Not supported, according to the datasheet.

Low power consumption and reliable operation
The transceiver is designed to provide a stable Gigabit connection with power consumption below 1.3 W. It operates on a 3.3 V DC supply and supports operating temperatures ranging from 0 to 70 °C. Its high mean time between failures (MTBF) makes it a suitable choice for network infrastructures that require operational continuity.

Feeding : 3,3 V CC.
Power consumption: Less than 1,3 W.
Operating temperature: 0 to 70 °C (32 to 158 °F).
Storage temperature: -40 to 85 °C (-40 to 185 °F).
Permissible relative humidity: From 5 % to 95 %.
MTBF: 4.655.371 hours.

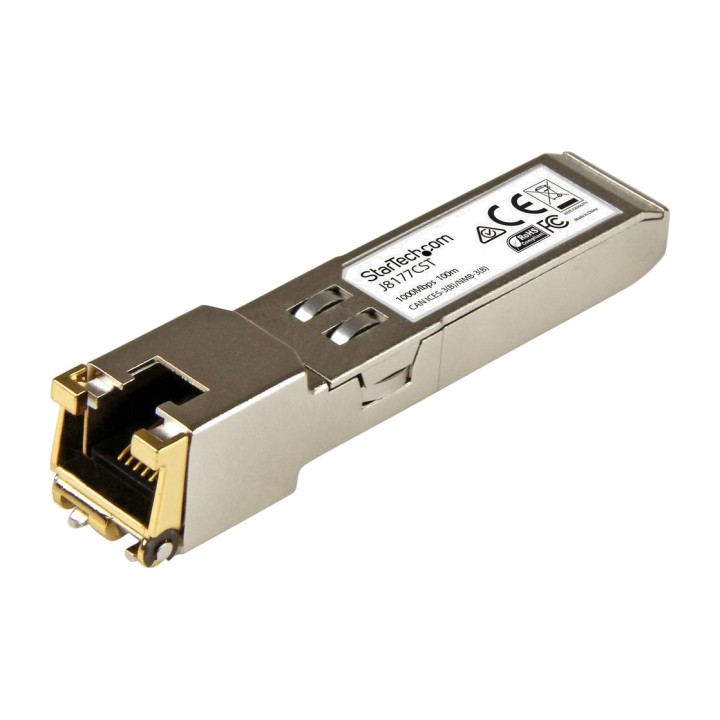

Compact design with aluminium housing
With a silver-coloured aluminium housing, this transceiver combines durability with compact dimensions for easy integration into the SFP ports of compatible network equipment. Its weight of just 25 grams makes it easy to handle and store as a spare unit.

MATERIAL: Aluminio.
COLOR: Plata.
Length: 68 mm (2.7 inches).
Width: 14 mm (0.6 inches).
Height: 14 mm (0.6 inches).
Weight: 25 g (0.9 oz).

Other specifications and package contents
The J8177CST SFP module is supplied individually and includes one transceiver ready for installation in compatible equipment.

Product ID: J8177CST.
Compatible HPE part number: J8177C.
UPC code: 065030865234.
Quantity per pack: 1 unit.
Contents: 1 SFP transceiver.
RJ45 connector: 1 unit.
Package width: 11.2 cm (4.4 inches).
Package depth: 93 mm (3.7 inches).
Package height: 33 mm (1.3 inches).
Shipping weight: 50 g (1.8 oz).
