STARTECH.COM Cisco-compatible industrial RJ45 copper SFP transceiver module GLCTEST-1000BASE-T 100M DSP0000043631

Features of the Cisco-Compatible GLC-TE 1000BASE-T RJ45 100 m SFP Transceiver Module
The Cisco-compatible GLCTEST SFP transceiver module, compatible with Cisco GLC-TE, is a copper connectivity solution designed to extend network connections via an RJ45 port. Compatible with 10/100/1000 Mbps networks, it can transmit data over distances of up to 100 metres using Ethernet cabling. Its industrial design, rated for operation between -40 °C and +85 °C, makes it a suitable option for network installations in environments with extreme temperatures. It also offers guaranteed compatibility with the Cisco GLC-TE model and comes with a lifetime warranty.

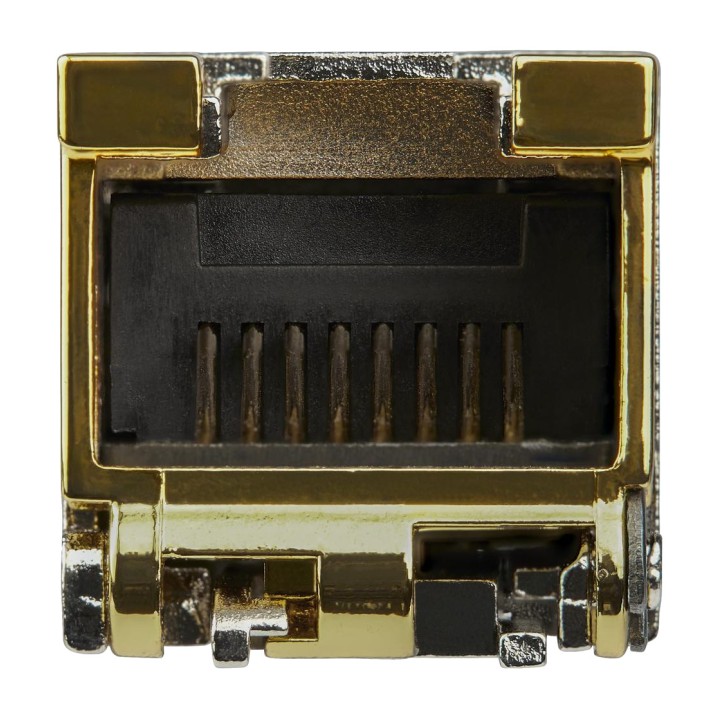

Gigabit Ethernet connectivity via RJ45
This 1000BASE-T copper SFP transceiver lets you use the SFP slots on network equipment to establish Ethernet connections over copper cabling. It supports speeds of 10, 100 and 1000 Mbps and reaches a maximum distance of 100 metres, making it easy to integrate network devices without the need for fibre optics.

Transceiver type: copper SFP.
Connection interface: RJ45.
Compatible networks: 10/100/1000 Mbps.
Maximum data transfer rate: 1.25 Gbps.
Maximum transmission distance: 100 meters (328 feet).
Compatible cabling: Cat5, Cat5e and Cat 6.
Specified standard : IEEE 802.3 10/100/1000BASE-TX.

Extended temperature range for industrial environments
The GLCTEST SFP module is designed to operate in demanding environmental conditions, thanks to its operating temperature range of -40 °C to +85 °C. This feature allows it to be used in industrial installations and environments where temperatures can vary considerably. Compared with the GLCTST model, it offers an extended operating range.

Operating temperature: -40 °C to +85 °C (-40 °F to 185 °F).
Storage temperature: -40 °C to +85 °C (-40 °F to 185 °F).
Permitted relative humidity: 30 % to 75 %.
Feeding : 3,3 V CC.
MTBF: 4.655.371 hours.

Compatibility with Cisco network devices
This transceiver is designed to ensure compatibility with the Cisco GLC-TE model, making it easy to integrate into network infrastructures using equipment from this brand. The specified product families include Cisco Firepower, IE 2000, Catalyst C9500 and C2960. Its SFP form factor allows RJ45 copper connections to be added to compatible devices.

Compatible brand: Cisco.
Equivalent Cisco part number: GLC-TE.
Product model: GLCTEST.
Specified equipment families: Cisco Firepower, IE 2000, C9500 and C2960.
Digital diagnostics monitoring (DDM): Not supported.
Compatibility limitation: The GLCTEST model is no longer compatible with Cisco Catalyst 9200 Series switches due to a firmware update.

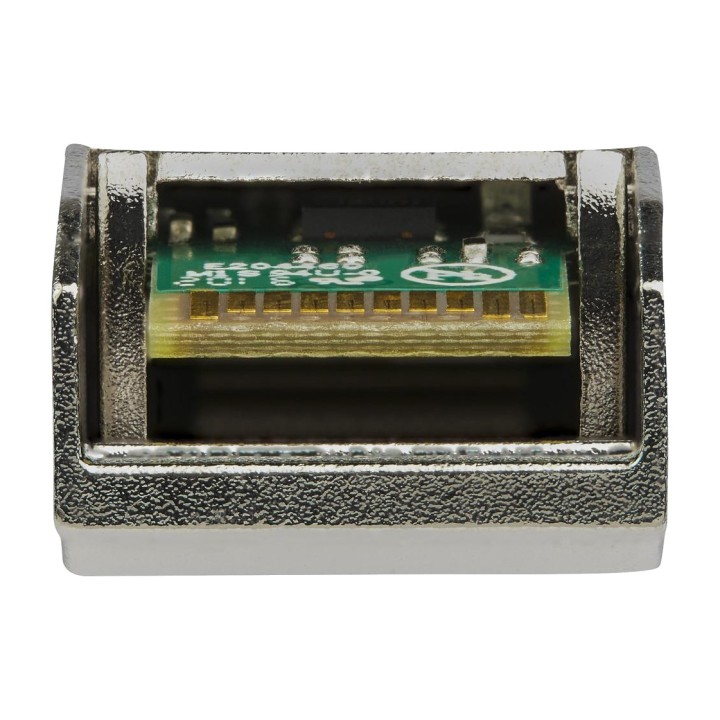

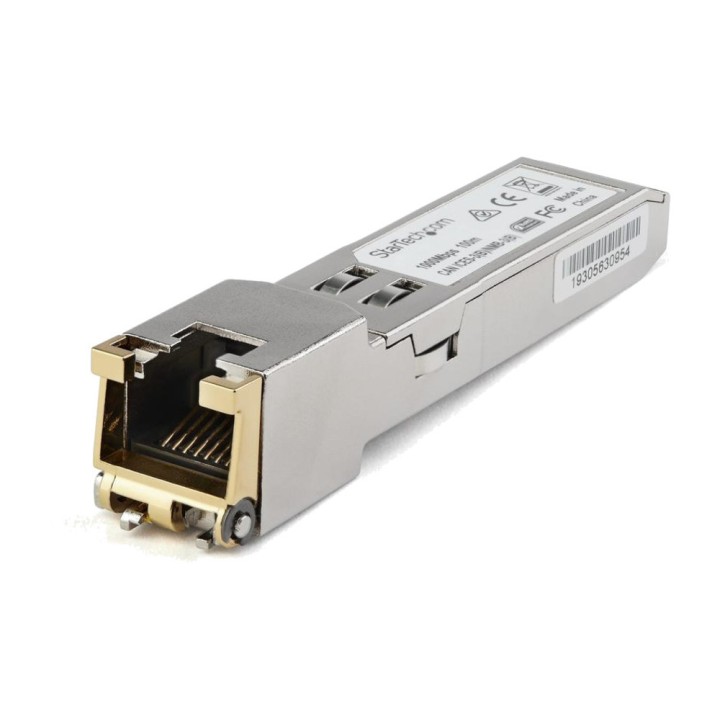

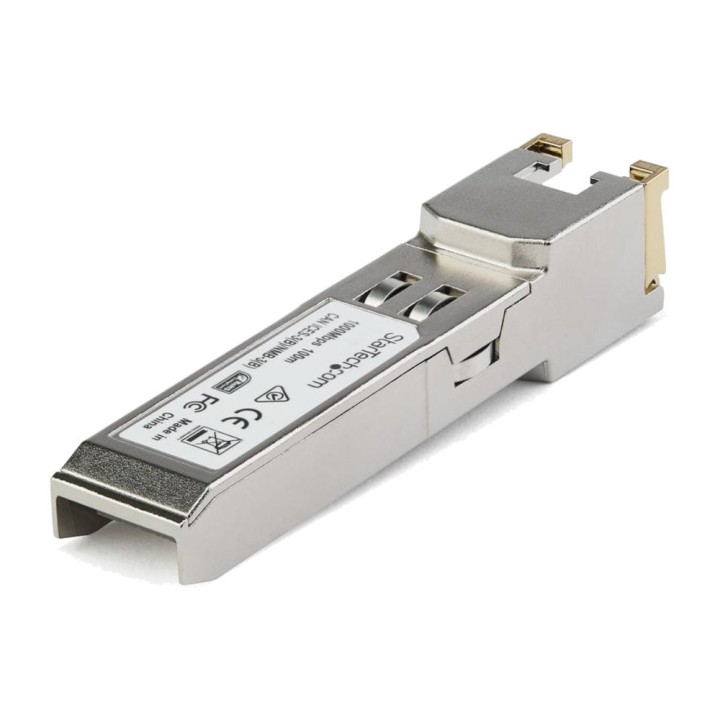

Compact design and metal construction
The GLCTEST SFP transceiver features a compact form factor that makes it easy to install in the SFP slots of compatible equipment. Its steel housing provides a sturdy structure, while its small dimensions allow it to be integrated into network installations with limited space.

MATERIAL: Acero.
COLOR: Plata.
Length: 65 mm (2.6 inches).
Width: 14 mm (0.6 inches).
Height: 12 mm (0.5 inches).
Product weight: 72 g (2.5 oz).

Installation using conventional Ethernet cabling
Thanks to its RJ45 connection and compatibility with copper Ethernet cabling, this transceiver allows existing network infrastructures to be expanded or adapted without necessarily using fibre-optic links. Its range of up to 100 meters facilitates connections between compatible devices, providing a practical alternative for enterprise and industrial networks.

Connection: SFP to RJ45.
Transmission medium: Cobre.
Cabling: Ethernet Cat5, Cat5e and Cat 6.
Maximum range: 100 meters.
Warranty: lifetime.

Other specifications and package contents
The GLCTEST transceiver module is supplied in an individual package containing one SFP unit. Its packaging dimensions facilitate storage and transport, while its identification by part number and UPC code makes the product easy to identify.

Product ID: GLCTEST.
Compatible manufacturer reference: GLC-TE.
UPC code: 065030884037.
Quantity per pack: 1 unit.

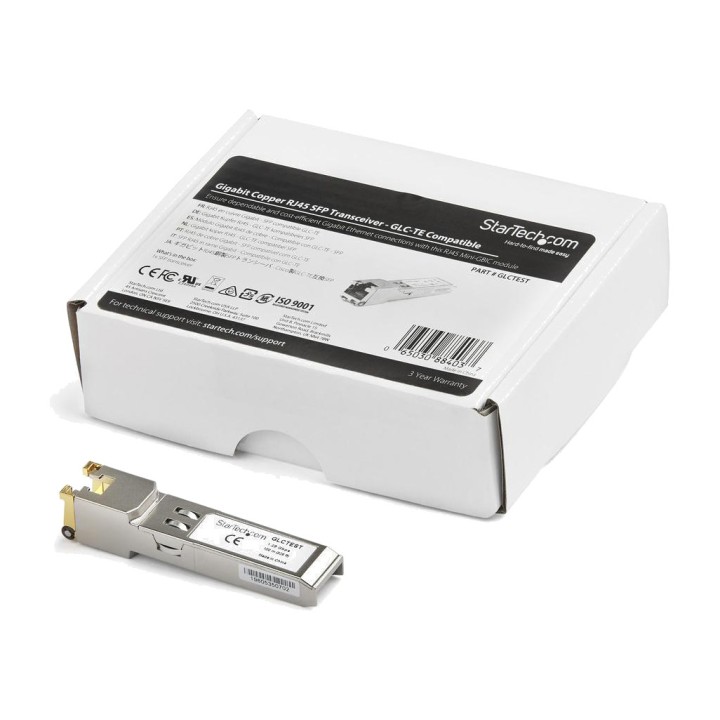

Box contents: 1 SFP transceiver.
Package width: 91 mm (3.6 inches).
Package depth: 113 mm (4.4 inches).
Package height: 34 mm (1.3 inches).
Shipping weight: 48 g (1.7 oz).
