STARTECH.COM Gigabit Ethernet to multimode fibre optic media converter ET91000LC2 LC 850NM 550M DSP0000043616

Features of the StarTech Gigabit to Multimode Fibre Media Converter ET91000LC2
The StarTech ET91000LC2 is a Gigabit Ethernet to multimode fibre optic media converter designed to extend network connections up to 550 metres using fibre with LC connectors. It converts an RJ45 copper connection into a fibre optic connection, making it easy to interconnect network equipment over long distances. With its included SFP transceiver, steel housing and Plug and Play operation, it is a practical solution for professional installations, IT infrastructures and environments requiring stable, flexible connectivity.
Extending Gigabit Ethernet connections up to 550 metres
This converter extends a Gigabit Ethernet connection over multimode fibre optic cable, overcoming the usual limitations of copper Ethernet cabling. Its RJ45 interface and duplex LC fibre connection make it easy to integrate into existing network infrastructures, providing a maximum transmission distance of 550 metres.

Conversion type: RJ45 Ethernet to multimode fibre optic.
Ethernet connection: 1 port RJ45.
Fiber connection: 1 duplex LC port.
Maximum distance: 550 metres.
Speed: 1000 Mbps Gigabit Ethernet.
Maximum transfer rate: 2000 Mbps in full-duplex mode.

Included SFP transceiver and 850 nm multimode fibre
The StarTech ET91000LC2 includes an SFP transceiver that enables Gigabit multimode fibre connections using a wavelength of 850 nm. Its compatibility with half-duplex and full-duplex operating modes provides flexibility for different network configurations, without the need to purchase an additional transceiver.

Transceiver: SFP included.
Fibre type: Multimodo.
Wavelength: 850 nm.
Optical connector: duplex LC.
Operating modes: Half-Duplex and Full-Duplex.
Automatic MDIX: Sí.
WDM multiplexing: No.

Plug and Play installation and compatibility with professional networks
Thanks to its Plug and Play system, this media converter can be installed quickly and easily. It can be used as a standalone device or wall-mounted, adapting to different workspaces. It also supports IEEE 802.1Q VLAN tag pass-through and 9K Jumbo Frames, features that are particularly useful in professional network environments.

Installation: Plug and Play.
Mounting options: Desktop or wall.
VLAN compatibility: Tag pass-through IEEE 802.1Q.
Jumbo Frames: up to 9K.
PoE compatibility: No.
Regulatory compliance: TAA.

Durable steel housing for demanding environments
Its steel construction provides greater physical strength to withstand the demands of IT and professional installations. It is designed to operate in a temperature range of 0 °C to 60 °C, making it suitable for use in different environmental conditions. Its compact form factor allows it to be installed in spaces with limited room.

Housing material: Acero.
COLOR: Negro.
Dimensions: 160 x 95 x 20 mm.
Weight: 405g.
Operating temperature: 0 °C to 60 °C (32 °F to 140 °F).
Storage temperature: -10 °C to 70 °C (14 °F to 158 °F).
Relative humidity: 10 % to 90 %.
MTBF: 65,000 hours.

External power supply and low power consumption
The converter includes an external power adapter compatible with 100 to 240 V AC inputs. Its 12 V DC output and 4 W power consumption keep the device operational without requiring PoE power. The universal adapter features plug configurations suited to the region where it is sold.

Power supply: AC adapter included.
Input voltage : 100-240 V CA.
Input current : 0,36 A.
output voltage : 12 V CC.
Output current : 1,6 A.
Connector polarity: Positiva.
Power connector type: M.
Energy consumption : 4 W.

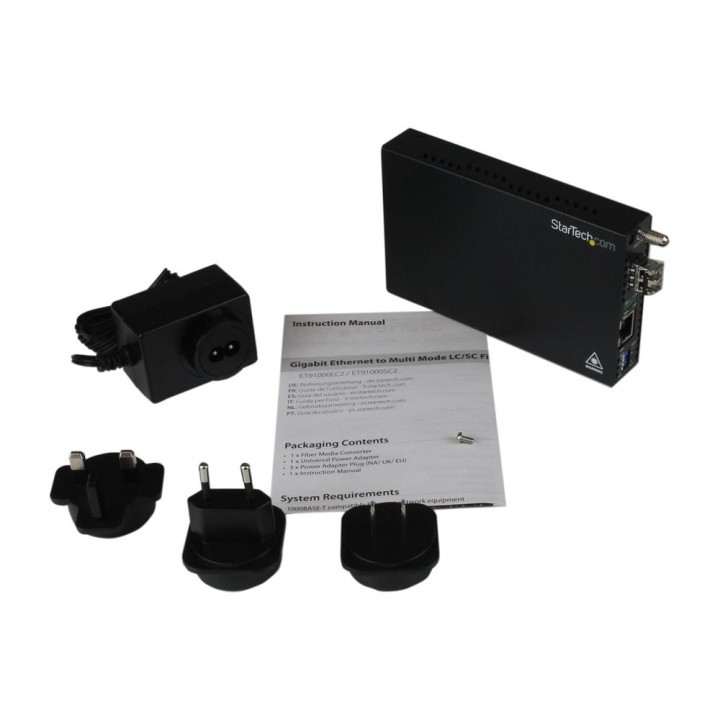

PACKAGE CONTENT
The StarTech ET91000LC2 is supplied with the accessories needed to facilitate setup, including the universal power adapter, SFP transceiver and grounding screw. It also includes an instruction manual to guide the user through installation.

1 StarTech ET91000LC2 fiber media converter with SFP transceiver included.
1 universal power adapter.
1 grounding screw.
1 instruction manual.
Regional compatibility of the adapter: North America, European Union and United Kingdom for units sold in those regions, Australia and New Zealand for units sold in those countries.

Other technical specifications
This media converter has the following identification references and logistical characteristics, useful for product management and distribution.

Brand: StarTech.com.
MODEL: ET91000LC2.
UPC: 065030846226.
Units per package: 1.
Package width: 20.6 cm.
Package depth: 13.9 cm.
Package height: 91 mm.
Package weight: 766 g.
Volume (m ³): 0.0026
