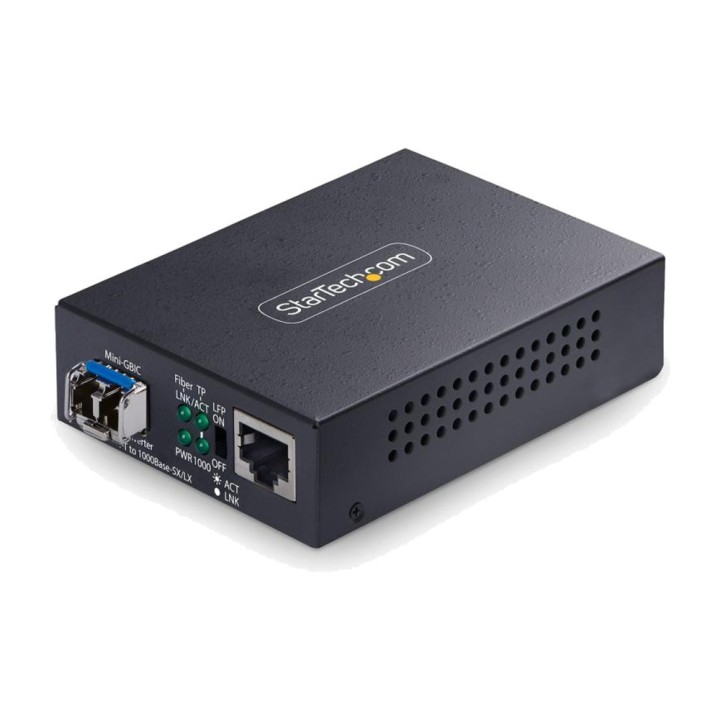

STARTECH.COM Gigabit Ethernet to single-mode fiber media converter MCM1110SMLC20 LC 1310NM 20KM DSP0000043613

Features of the Single-Mode LC Fiber Media Converter MCM1110SMLC20
The MCM1110SMLC20 Gigabit Ethernet to single-mode LC fiber media converter converts a 10/100/1000 Mbps copper Ethernet connection into a fiber-optic connection with a range of up to 20 km. It is a suitable solution for extending enterprise networks, industrial installations, data centers and remote locations that require long-distance wired connectivity. Its compact metal housing, diagnostic functions and various mounting options make it easy to integrate into professional infrastructures.
Gigabit Ethernet to fiber connectivity up to 20 km
Thanks to its 10/100/1000 Mbps RJ-45 interface and duplex single-mode LC fiber connector, this converter extends network connectivity over distances greater than those normally supported by copper Ethernet cabling. It operates at a wavelength of 1310 nm and reaches up to 20 km, making it suitable for connecting buildings, distributed installations or remote network equipment.

Copper connection: 1 10/100/1000 Mbps RJ-45 port.
Fiber connection: 1 duplex LC port.
Fiber type: single-mode (Single Mode).
Wavelength: 1310 nm.
Maximum transmission distance: 20 km (12.4 miles).
Compatible fiber network: 1000 Mbps (1 Gbps).
Maximum transfer rate: 2 Gbps aggregate in full-duplex mode.

Compatibility with Ethernet standards and efficient transmission
The device supports the main IEEE Ethernet standards used in Gigabit copper and fiber networks. It supports half-duplex and full-duplex operation, auto-negotiation and Auto MDI/MDI-X, making it easy to connect to compatible network equipment. In addition, support for Jumbo Frames of up to 9K allows it to handle larger packets in environments where they are used.

IEEE 802.3ab : 1000BASE-T.
IEEE 802.3z : 1000BASE-LX.
IEEE 802.3: 10BASE-T.
IEEE 802.3u : 100BASE-TX.
Fiber operation: half-duplex/full-duplex.
Auto-negotiation and Auto MDI/MDI-X.
Support for Jumbo Frames up to 9K.
Flow control: ninguno.
Switching architecture: ninguna.
WDM multiplexing: not supported.
PoE power: not supported.

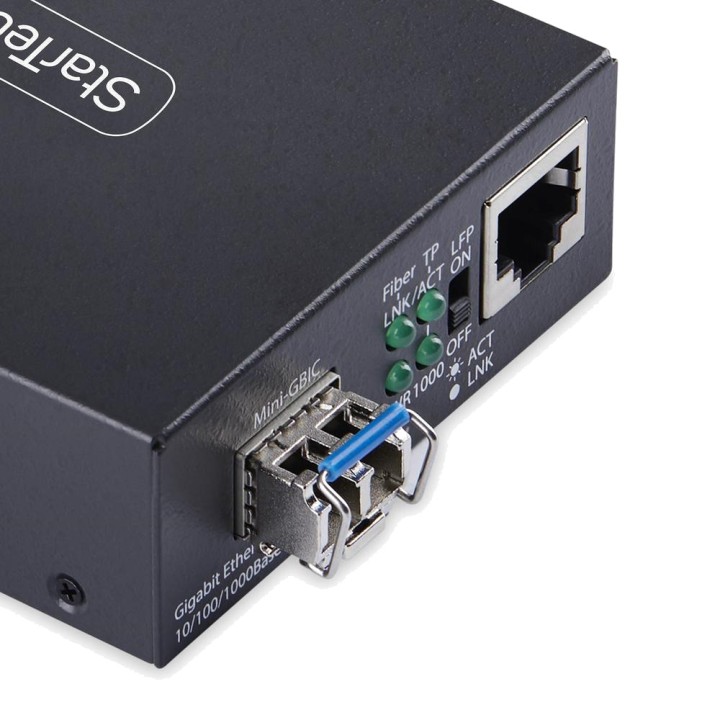

Link diagnostics via LFP and LED indicators
To facilitate maintenance and fault identification, the converter features Link Fault Passthrough (LFP), configurable via DIP switch and supporting LLCF and LLR. This function helps detect connection failures between the copper and fiber segments. Its integrated LED indicators provide a visual indication of various device statuses without the need for additional tools.

Link Fault Passthrough (LFP) function configurable via DIP switch.
Compatible with LLCF (Link Loss Carry Forward) and LLR (Link Loss Return).
LED indicators: PWR, RPF, LFP and LNK.
RJ-45 indicators: LINK and FULL.
Remote management capability: not available.

Compact metal housing and flexible mounting
Its all-metal chassis provides a sturdy, shielded structure suitable for professional installation environments. The compact form factor allows it to be used as a standalone unit or integrated into communications cabinets using various mounting accessories. It is a practical alternative for server rooms, data processing centres and spaces with network equipment.

Housing material: metal.
COLOR: negro.
Compact design with metal shielding.
Standalone installation or wall mounting.
Compatible with DIN rail mounting using ADJDINKIT.
Compatible with the MCM7-MEDIA-CHASSIS chassis and MCM15-MEDIA-CHASSIS.
Declared dimensions: 70 mm long, 94 mm wide and 94 mm high.
MTBF: 50,000 hours.

External power supply and operating conditions
The converter includes a universal power adapter with an input of 100 to 240 V AC, suitable for installations with different power supplies. Its power consumption of 4.6 W makes it suitable for continuous use in communications infrastructure. It also has an operating temperature range of 0 °C to 50 °C.

AC power adapter included.
Input voltage : 100-240 V CA.
Input current : 0,4 A.
output voltage : 5 V CC.
Output current : 2 A.
Connector polarity: positiva.
Power connector type: M.
Energy consumption : 4,6 W.
Operating temperature: from 0 °C to 50 °C.
Storage temperature: from -10 °C to 70 °C.
Permitted relative humidity: 5 % to 95 %, non-condensing.

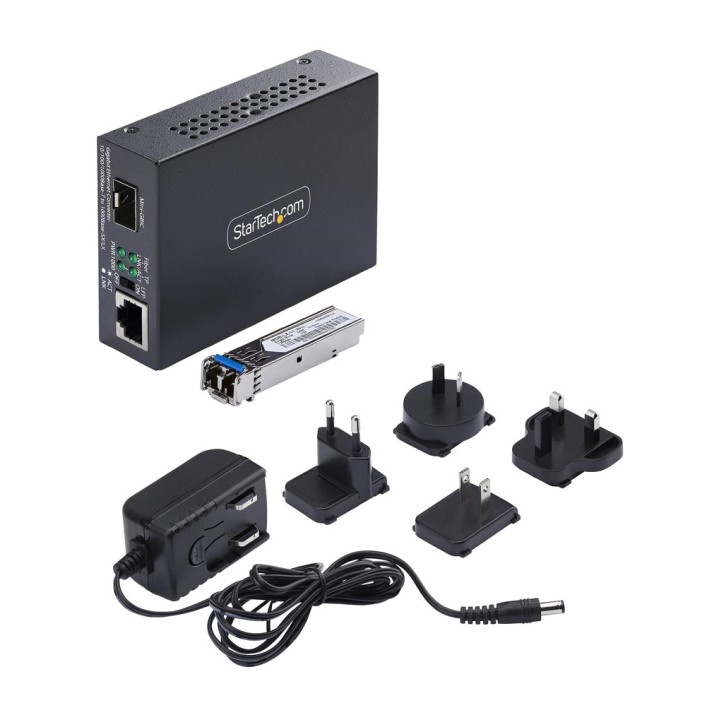

PACKAGE CONTENT
The MCM1110SMLC20 is supplied with the basic items required to power the equipment and consult its installation instructions. The package includes the media converter, a universal power adapter and product documentation.

1 single-mode LC fiber media converter.
1 universal power adapter.
1 product documentation.

Other specifications

Product reference: MCM1110SMLC20.
UPC code: 065030917087.
Commercial designation: TAA.
Product weight indicated in the specification sheet: 0,2 g (0,0 oz).
Packaging width: 28 cm.
Packaging depth: 13,3 cm.
Packaging height: 66 mm.
Shipping weight: 328 g.
