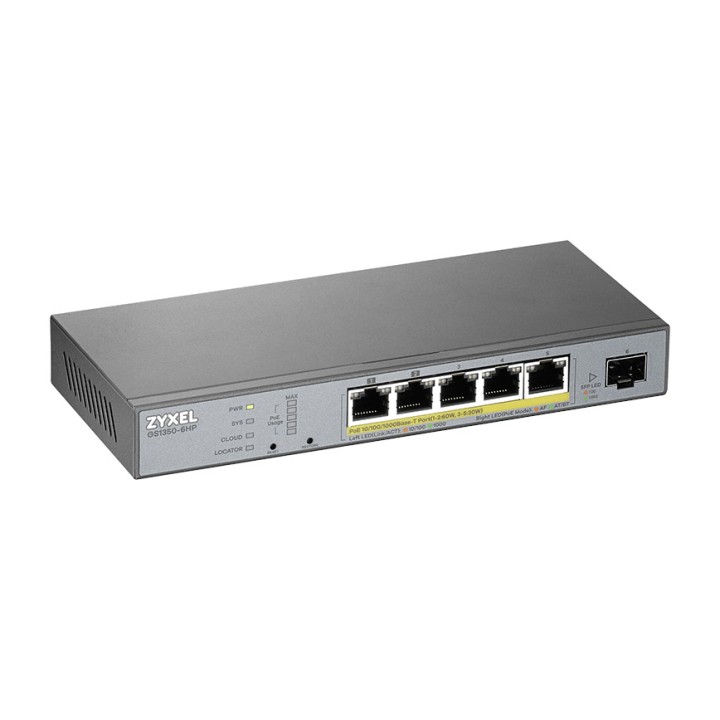

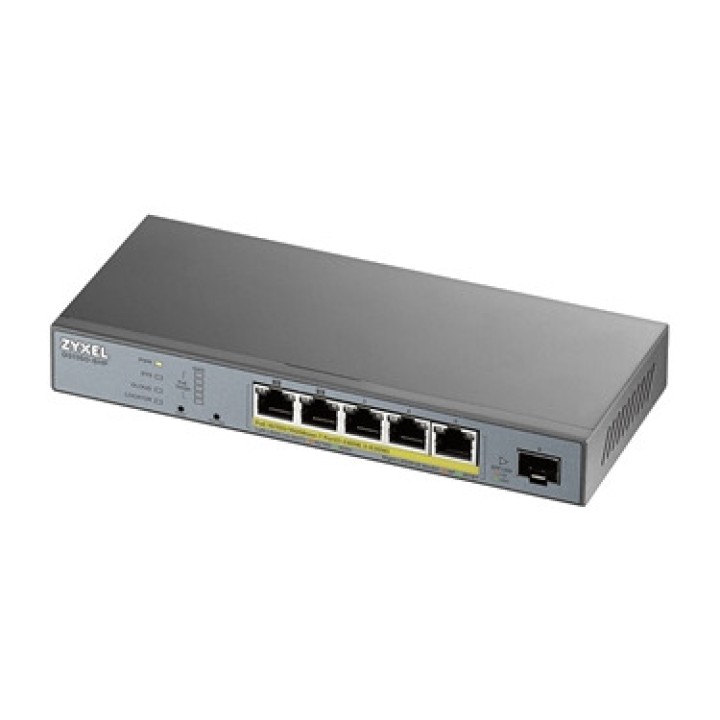

ZYXEL 6-port Gigabit managed PoE switch for video surveillance GS1350-6HP 1X-SFP 60W DSP0000006948

ZyXEL GS1350-6HP specifications 5xGB Po switch E 1xSFP 60W

New perspectives
Coated in titanium grey, the GS1350 stands out with a striking identity dedicated to
video surveillance switch.

Specialized PoE software features for video surveillance.
Automatically detect and recover IP cameras and powered devices
customizable granular parameters suitable for any type of device
and scenario.

Easy long-distance deployment
Traditionally, a PoE switch delivers power and data within the 100-meter distance
limitation. The GS1350 series meets the need to deploy
an IP camera or powered devices using the existing Cat 5e cable in
remote locations. By enabling extended range mode, achieve
instant remote deployments of up to 250 m. Save money and
effort with just one PoE.

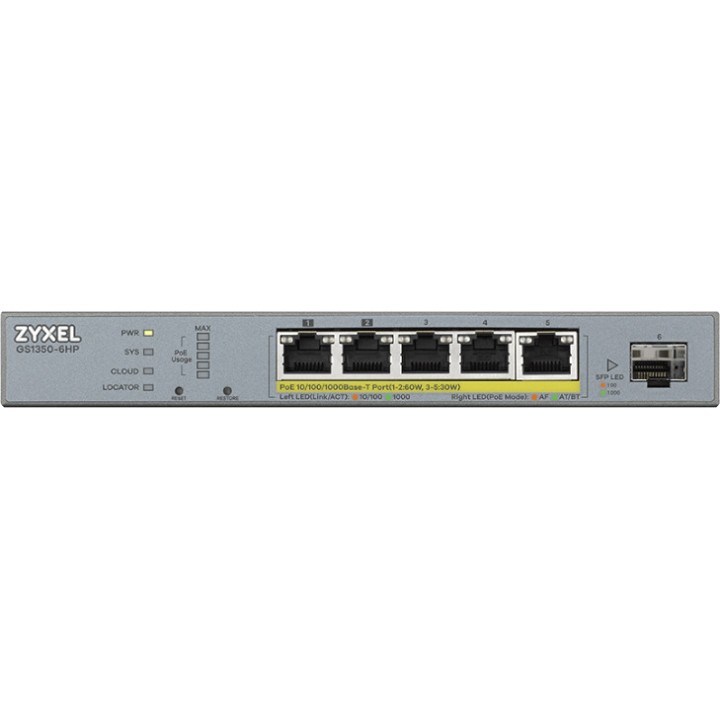

High power budget, intuitive front panel design
The GS1350 series includes four models with large power budgets of
up to 375 W, meeting the requirement to power multiple IP cameras. The
intuitive LED indicator on the front panel lets you inspect PoE status in
real time. In addition, the one-touch "Restore" button on the GS1350 series helps
effortless recovery from misconfigurations.

Brand ZyXEL
MODEL GS1350-6HP-EU0101F
Ports - Total ports : 6
- 5 x 100/1000 Mbps
- 1 x Gigabit SFP
- 5 x configurable extended-range ports
Characteristic
Feeding
- Input : 52V - 57V DC
- Maximum consumption : 72W
POE
- PoE ports E: 5
- Total PoE power E: 60W
- PoE standard: 802.3af/at, 802.3bt (ports 1 and 2)
Performance
- Switching capacity: 12 Gbps
- Forwarding rate: 8.9 Mbps
- Packet buffer: 525K bytes
- Address table MAC: 8 K
physical characteristics
- Dimensions: 193 x 84 x 26 mm
- Weight: 0.41 Kg
- Included accessories: Power cable, wall mounting kit
Surge protection
- Ethernet port : 4 KV
- Power supply (line to ground) : 4 KV
- Power supply (line to line) : 2 KV
- Protection against electrostatic discharge on the Ethernet port : 15 KV / 8 KV
Environmental Characteristics
- Operating temperature: -20ºC to 50ºC / -4ºF to 122ºF
- Operating humidity: 5% to 95% (non-condensing)
- Storage temperature: -40ºC to 70ºC / -40ºF to 158ºF
- Storage humidity: 5% to 95% (non-condensing)
- MTBF (mean time between failures): 2.021.885,87 hours
- Heat dissipation: 245,52 BTU/hr
- Acoustic noise @ 25ºC: 0 dBA (fanless)
Standards
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-Tx Ethernet
- IEEE 802.3ab 1000Base-T Ethernet
- IEEE 802.3z 1000 Base-X
- IEEE 802.3x flow control
- IEEE 802.3af PoE
- IEEE 802.3at PoE plus
- IEEE 802.3bt (GS1350-6HP)
- IEEE 802.3az EEE support / Green Ethernet
- IEEE 802.1p CoS support
Certifications
EMC
- CE, FCC, C-Tick, Class A
- BSMI CNS13438
SECURITY
- LVD EN62368-1
- BSMI CNS14336-1
RoHS compliant
Volume (m ³): 0.0044
