ZYXEL Dual-band WiFi 7 access point with PoE NWA30BE 2,5GBE 5012MBPS DSP0000043288

Zyxel features NWA30BE
The Zyxel NWA30BE is a dual-band wireless access point designed to extend and improve WiFi connectivity in offices, shops and professional environments. Compatible with the WiFi 7 (IEEE 802.11be) standard, it offers a theoretical combined wireless speed of up to 5012 Mbit/s, 2.5 Gbit/s Ethernet connectivity and PoE power. It incorporates technologies such as MU-MIMO, fast roaming and cloud management to simplify the administration of networks with multiple devices.
Dual-band WiFi 7 with up to 5012 Mbit/s
Thanks to its WiFi 7 compatibility and operation on the 2.4 and 5 GHz bands, this access point can distribute connections according to device requirements. The 2.4 GHz band is useful for longer-range connections, while the 5 GHz band provides higher speeds for applications that require more bandwidth.

Maximum combined wireless speed: 5012 Mbit/s.
2.4 GHz band: up to 688 Mbit/s.
5 GHz band: up to 4324 Mbit/s.
Supported standards: IEEE 802.11a, 802.11ac, 802.11ax, 802.11b, 802.11be, 802.11g, 802.11k, 802.11n, 802.11r and 802.11v.

Optimized connectivity with MU-MIMO and band steering
The Zyxel NWA30BE incorporates Multi User MIMO (MU-MIMO), a technology that improves the management of communications with multiple devices. In addition, the band steering function helps direct compatible devices to the most suitable frequency band, while fast roaming helps maintain the connection when moving between access points.

MIMO technology: Multi User MIMO.
Band steering: optimizes band allocation.
Fast roaming: facilitates switching between access points.
VLAN support: enables logical network segmentation.

2.5 Gbit/s Ethernet port and PoE power supply

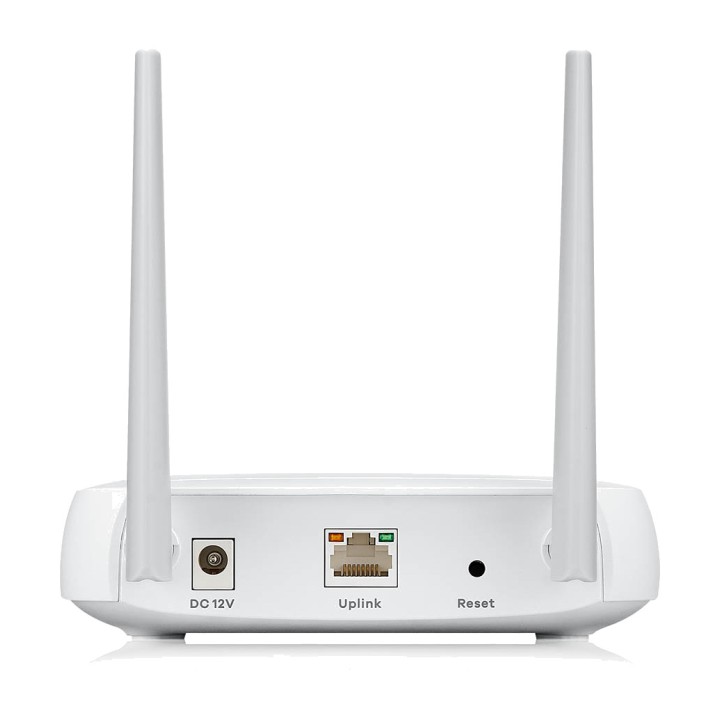

It has an RJ-45 Ethernet port with a speed of 2500 Mbit/s, providing a high-speed wired connection to the network infrastructure. Its Power over Ethernet (PoE) compatibility allows it to receive power through the network cable when connected to compatible PoE power-sourcing equipment, simplifying installation and reducing the need for additional electrical wiring.

Ethernet ports RJ-45: 1.
LAN Ethernet speed: 2500 Mbit/s (2.5 Gbit/s).
Power supply: PoE compatible.
Input voltage AC: 100-240 V.
AC input frequency: 50/60 Hz.
VOLTAGE DC: 12 V.
Input current : 0,3 A.
Output current : 1,5 A.

WiFi security and cloud management
To protect wireless connections, the device supports the WPA, WPA2 and WPA3-Personal security protocols. It also supports cloud-based management, making it easy to configure, monitor and remotely manage the access point. Its updatable firmware helps maintain the equipment and incorporate software improvements.

Wireless security: WPA, WPA2 and WPA3-Personal.
Management: cloud-based management.
Firmware: actualizable.
Network segmentation: VLAN support.

Compact design with two external antennas

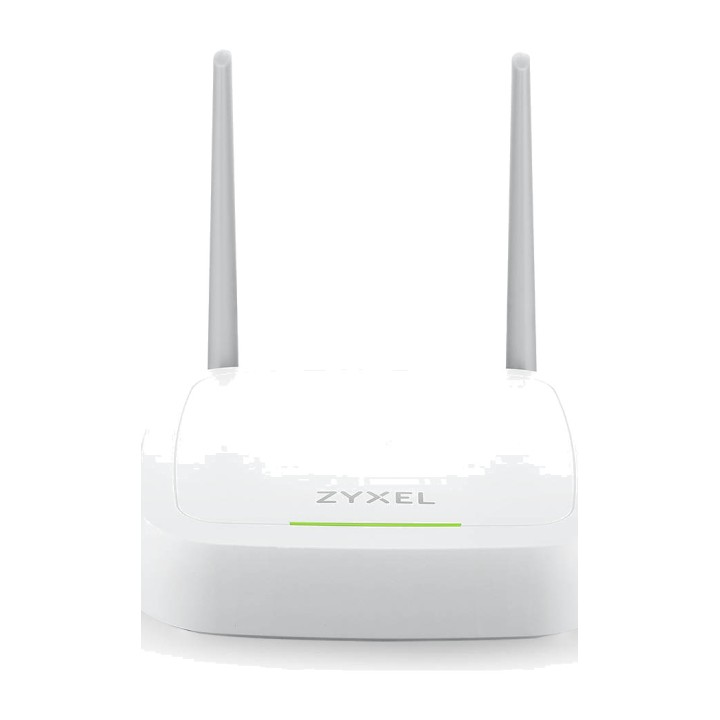

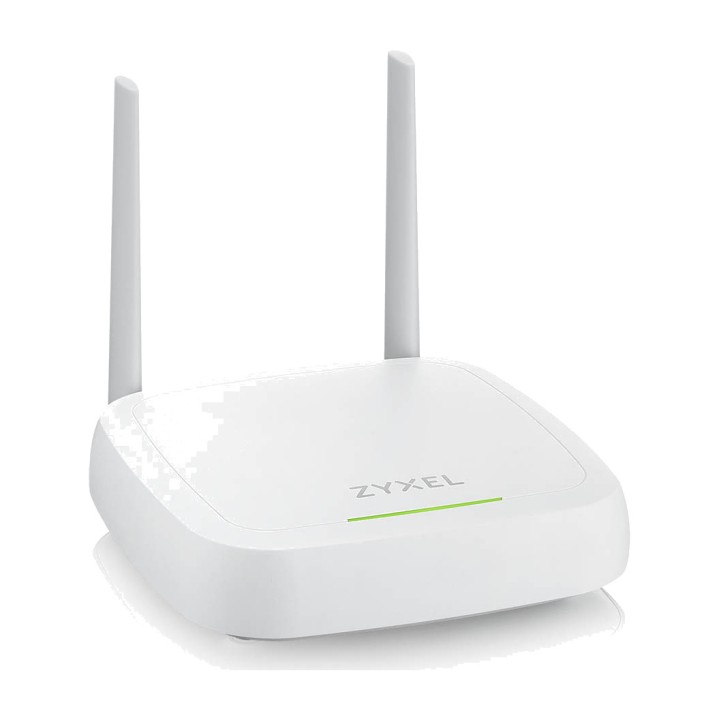

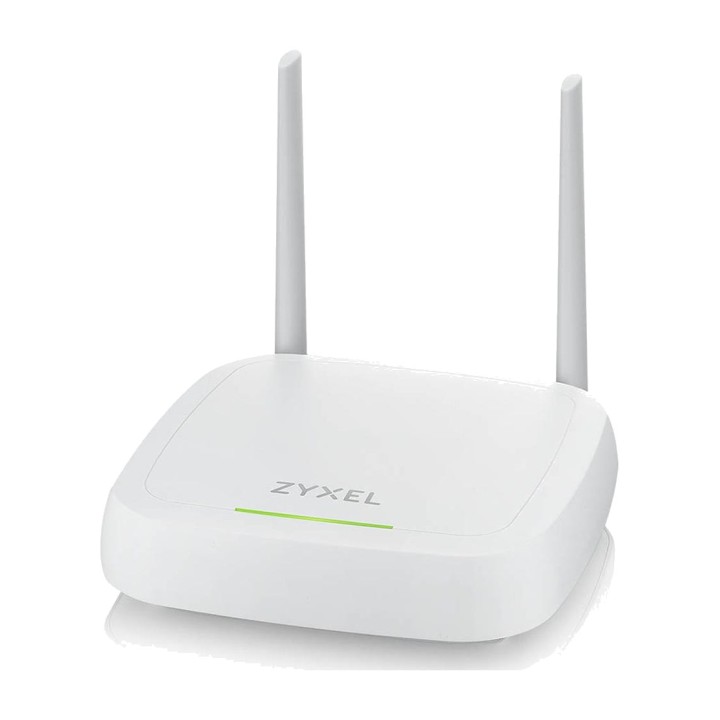

Its white desktop design makes it easy to integrate into workspaces. It features two external antennas with a maximum gain of 3 dBi and compact dimensions of 155 x 140 x 35 mm, making it suitable for installations where a discreet, functional network solution is required.

Antenna type: externa.
Number of antennas: 2.
Maximum antenna gain: 3 dBi.
Location: escritorio.
COLOR: blanco.
Dimensions: 155 x 140 x 35 mm.
Weight: 307.3 g.

Operating conditions and package contents
The Zyxel NWA30BE is designed for indoor use at temperatures from 0 to 40 °C and relative humidity levels from 10 to 90 %. It is supplied in an individual box with an RJ-45 LAN network cable, making it easy to connect to Ethernet infrastructure.

Operating temperature: 0 to 40 °C.
Operating humidity : 10-90 %.
Storage temperature: -40 to 70 °C.
Storage humidity : 10-90 %.
Contents: 1 unit and cable LAN (RJ-45).
Packaging type: caja.
Package dimensions: 175 x 240 x 60 mm.
Package weight: 640.9 g.
Volume (m ³): 0.0024
