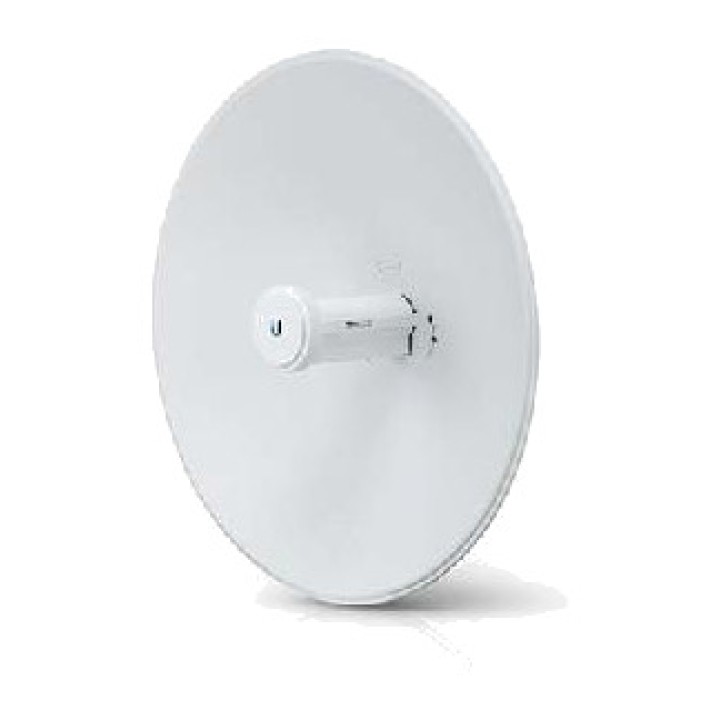

UBIQUITI Outdoor directional radio antenna AIRMAX-POWERBEAM 5AC GEN2 5GHZ 25DBI PBE-5AC-GEN2

Ubiquiti Networks UBIQUITI PBE-5AC-Gen2 5 GHz PowerBeam AC, Gen2

Using airMAX ac technology, the PowerBeam supports up to 450 Mbps real throughput
TCP/IP. It has an antenna that offers 25 dBi of gain and operates in the range of
5150 5875 MHz. It features a 560 MHz Atheros MIPS 74KC processor and 128MB of DDR2 RAM, as well as 8 MB of Flash.
560 MHz and 64MB of RAM. It also has a 10/100/1000 Gigabit Ethernet port.
Integrated management network

The PBE-5AC-Gen2 integrates an independent Wireless network to speed up and simplify
the installation of the equipment with a mobile device
Improved Noise Immunity

It also offers improved wind performance. The PowerBeam ac
directs RF energy into a more precise beamwidth. With the energy focused in one
direction, the PowerBeam ac spatially blocks or filters out noise, thereby
improving immunity.
This feature is especially important in an area filled with other signals
RF of similar or identical frequencies.
Full-frame design

Ubiquiti's InnerFeed technology integrates the radio interface into the
antenna, so no cables are needed. This improves performance, since
eliminates cable losses.

Provides higher performance due to a faster processor and its
innovative mechanical design at a low cost, the PowerBeam ac is
extremely versatile and cost-effective to deploy.
airMAX ac Technology Included

Unlike the standard Wi-Fi protocol, the Multiple Access protocol by
Time Division, known in English as Time Division Multiple Access (TDMA) by Ubiquiti,
allows each client to send and receive data using a scheme of pre-assigned time slots
scheduled by an intelligent controller.

These time slots will eliminate hidden-node collisions and maximize the
efficiency.
This means it will provide better performance in terms of latency and scalability
compared with any other outdoor system in its class.

The kit includes everything needed for easy installation.

FEATURES

Dimensions 420 x 420 x 230 mm
Weight 2,22kg
24V, 0.5A Gigabit PoE power supply
Power supply mode Passive PoE (Pairs 4, 5+ 7, 8 Return)
Supported voltage range 20-26VDC
Maximum power consumption 8,5W
Gain 25 dBi
Operating frequency 5150 - 5875 MHz
LEDs (1) Power , (1) LAN, (4) WLAN
Channel width
PTP mode 10/20/30/40/50/60/80 MHz
PTMP mode 10/20/30/40 MHz
Dual Linear polarization
UV-stabilized plastic housing
Pole mounting kit included
ESD/EMP protection Air: 24 kV, Contact: 24 kV
Operating temperature -40 to 80 C
Operating humidity 5 to 95% Non-condensing
Volume (m ³): 0.0350
