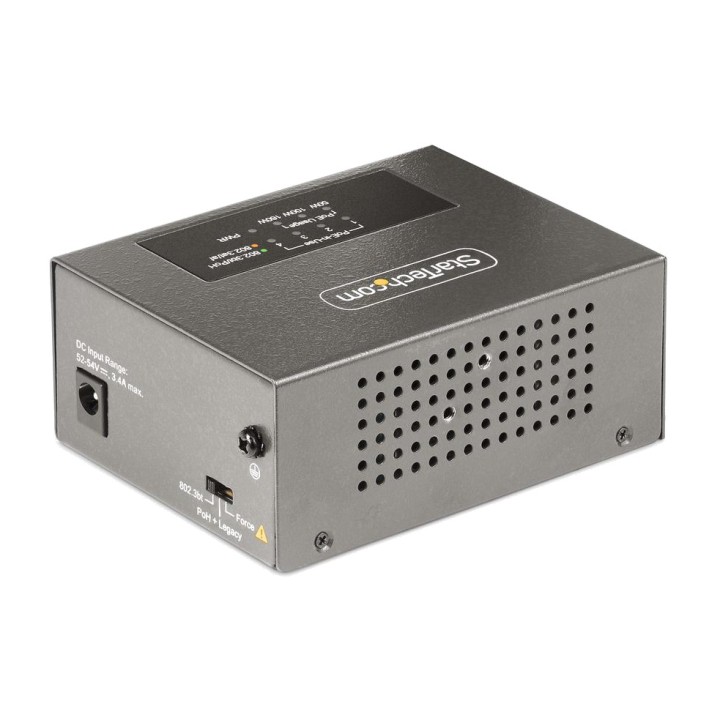

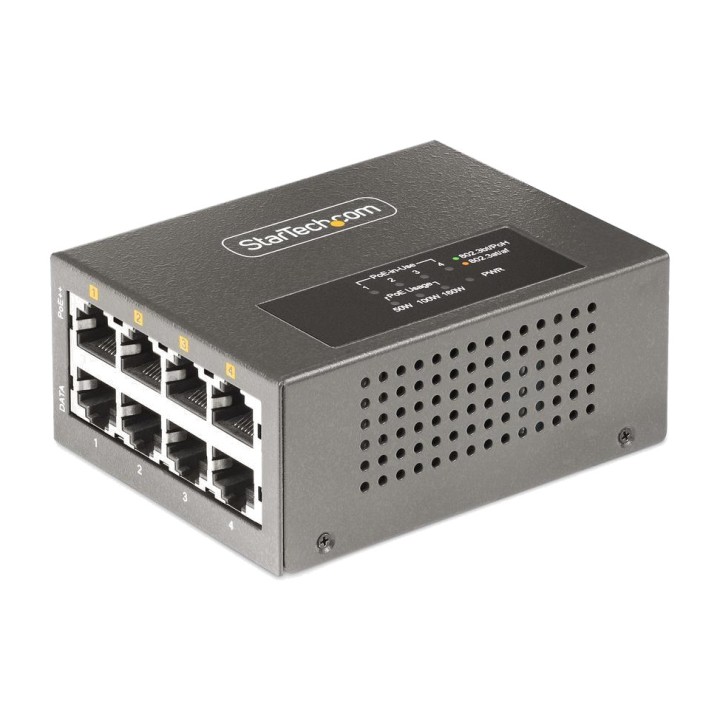

STARTECH.COM 4-port multigigabit Power over Ethernet injector POE++ 5GBPS AS445C-INJECTOR DSP0000040692

Features of the 4-Port PoE/PoE+/PoE++ Switch AS445C-POE-INJECTOR
The AS445C-POE-INJECTOR is a multigigabit PoE injector designed to supply power and data to compatible remote devices through a single Ethernet cable. With support for PoE, PoE+, PoE++ and PoH, it can power IP cameras, WiFi access points, industrial devices or high-power video surveillance systems with a simple, efficient installation. Its compact design and metal housing make it an ideal solution for professional and industrial environments.
High-performance multigigabit connectivity

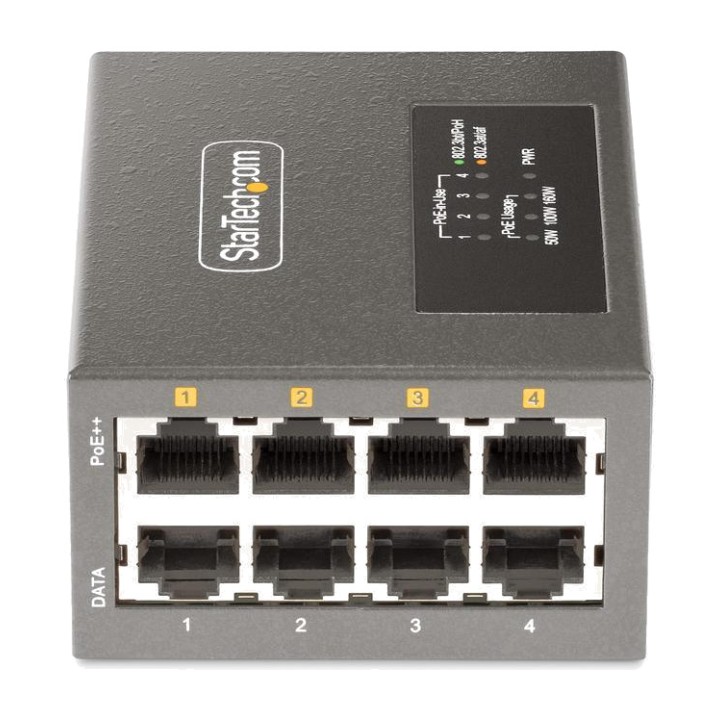

This PoE injector features 4 RJ-45 PoE++ ports supporting speeds of up to 5Gbps, providing stable connectivity ready for high-speed networks. NBASE-T compatibility also enables operation at 2.5G, 1G, Fast Ethernet and 10Mbps speeds through automatic autonegotiation.

Maximum transfer speed of up to 5000Mbps
Compatible with 5GBASE-T and 2.5GBASE-T
Supports Wake-on-LAN and Jumbo frames of up to 9K
Range of up to 100 metres using Cat 5e/6/6a cable

High-power PoE supply

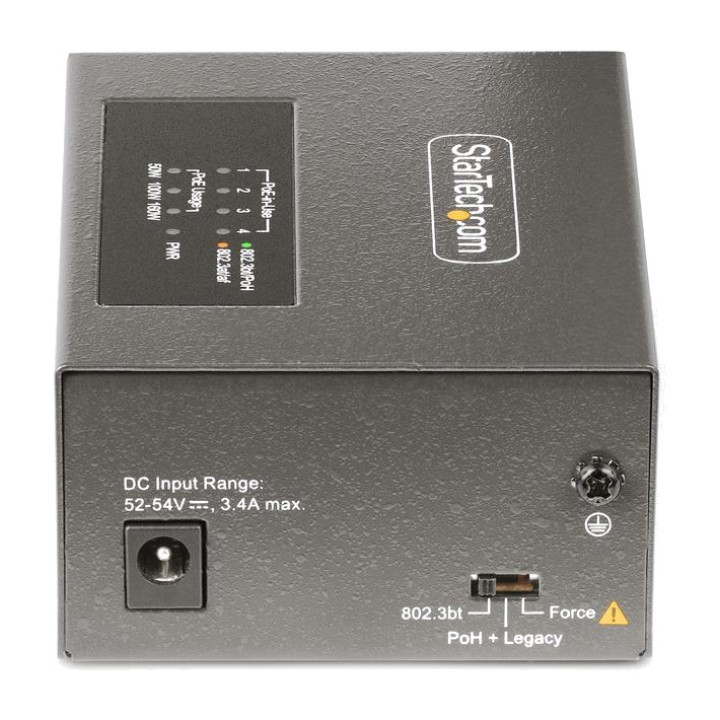

The device can power demanding network devices thanks to its total power capacity of 160W. It also features a DIP switch for selecting different power modes according to the installation requirements.

Compatible with IEEE 802.3af, 802.3at and 802.3bt
Up to 95W per port in PoH+ mode
Forced 60W mode for legacy devices
Total PoE power budget of 160W

Robust design for professional environments

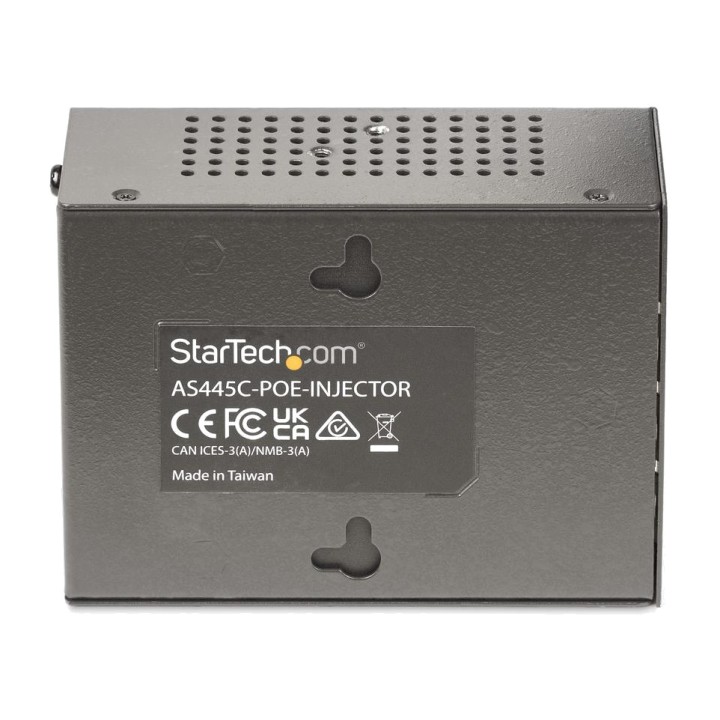

Its steel metal housing ensures greater strength and durability in continuous-use or industrial installations. It also supports both wall and DIN rail mounting, making it easy to integrate into technical cabinets or professional infrastructures.

Compatible with DIN rail and wall mounting
Durable metal chassis
Compact and lightweight design
Dimensions: 9,4 x 7 x 3,9 cm

Network protection and stability
The system features advanced protection against electrostatic discharge and isolated LAN transformers to improve connection stability and prevent interference between ports.

IEC 61000-4-2 Level 4 ESD protection
Up to ±8kV by contact and ±15kV through air
Data and power isolation between ports
Integrated automatic MDIX

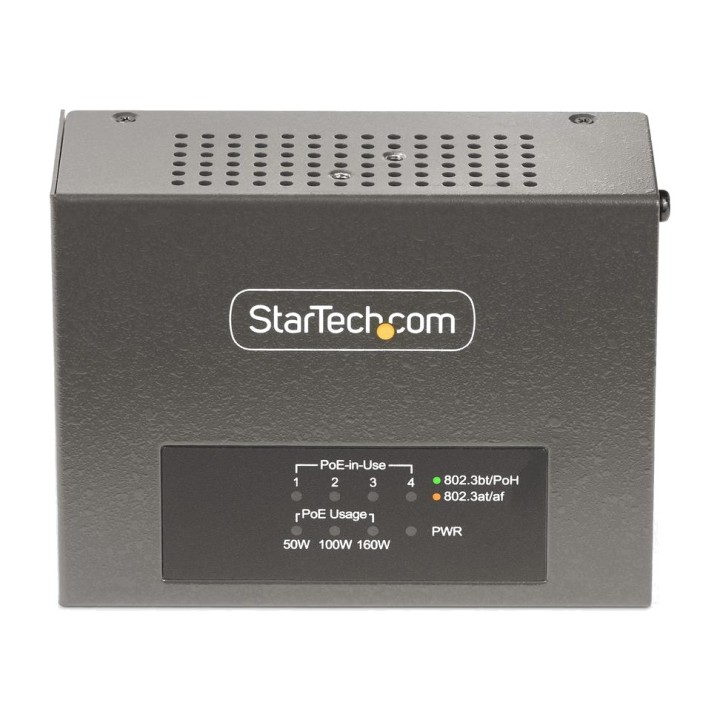

LED indicators for quick monitoring
The integrated LED indicators let you check the power status and PoE budget usage on each port at a glance, making it easier to monitor the system.

Independent LEDs for each PoE port
Power consumption indicators
System power LED
Colour codes for quick diagnostics

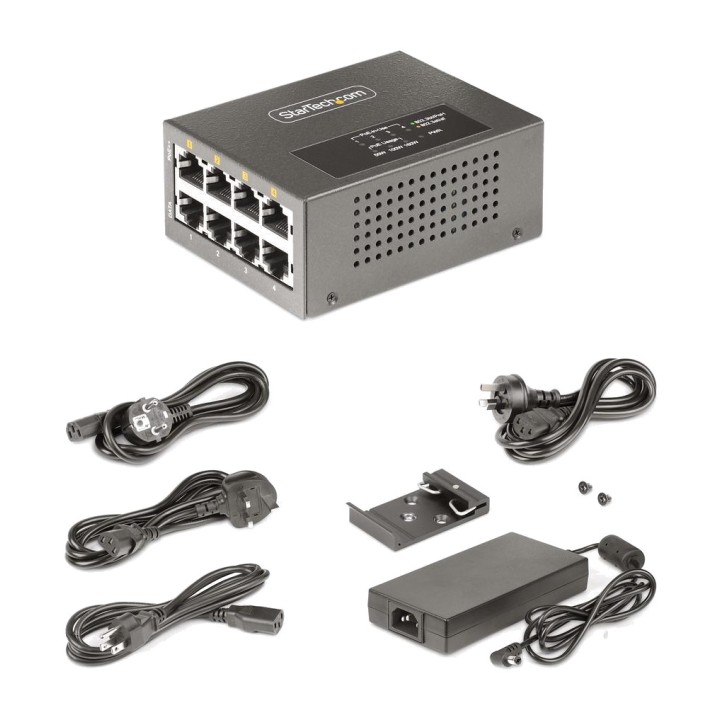

Box contents

1 x 4-port PoE injector
1 x Universal power adapter
1 x DIN rail mounting kit
1 x Quick Start Guide

Other specifications

Compatible with 5G/2.5G/1G/100/10Mbps networks
Operating temperature: from 0°C to 50°C
Operating humidity: 5~95% non-condensing
54V DC power supply included and 3.3A
No drivers or software required
Compatible with Wake-on-LAN (WoL)
Microsemi PD69208T4 chipset and PD69200R
Product weight: 278 g
Volume (m ³): 0.0049
