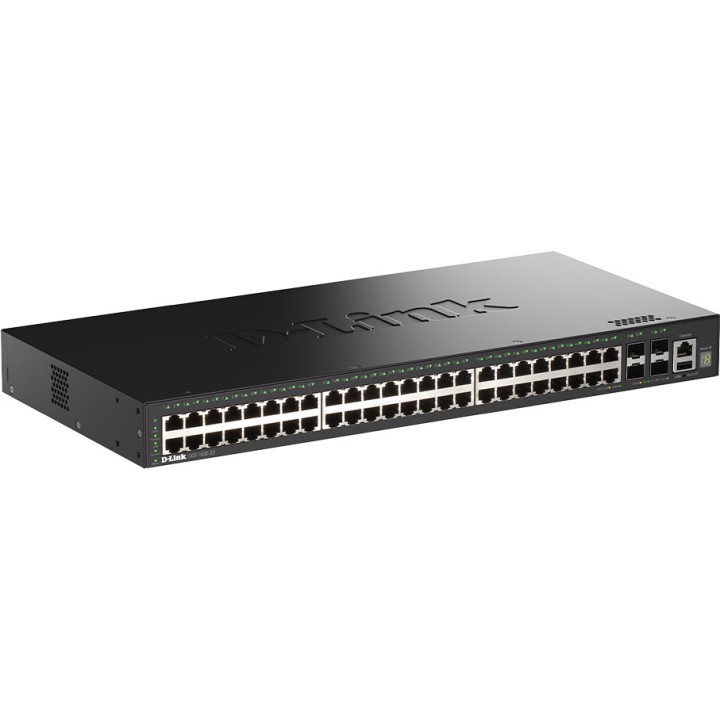

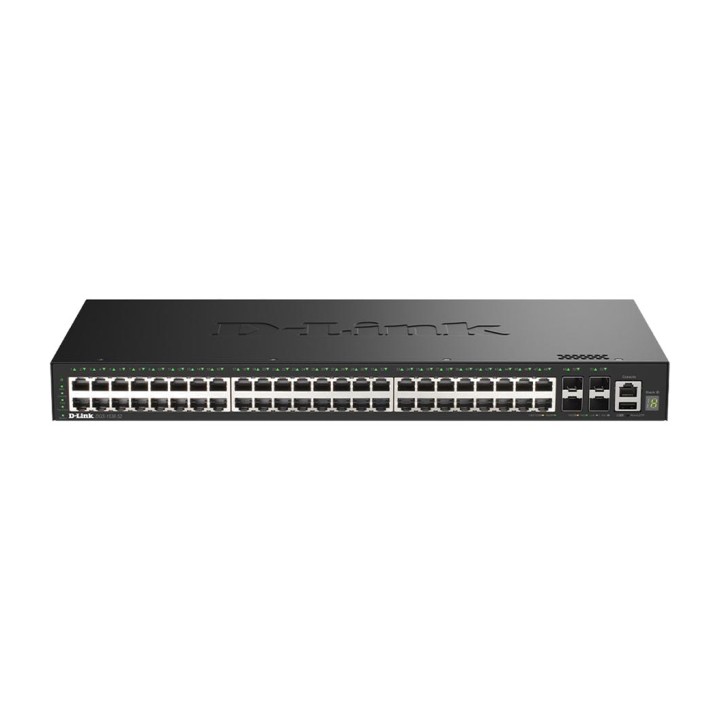

D-LINK 48-port stackable managed Gigabit switch and 4 SFP+ DGS-1530-52 10G MGS0000035150

D-Link DGS-1530-52 - 48-Port Smart Managed Stackable Gigabit Switch
The D-Link DGS-1530-52 is a stackable Smart Managed switch designed for enterprise networks that need high performance, scalability and advanced management. It features 48 Gigabit Ethernet ports for network connections and 4 10G SFP+ ports for high-speed uplinks. With physical stacking capacity for up to 9 switches, it makes it easy to expand the network while maintaining centralized administration. It also includes advanced features such as ZTP, ERPS, VLAN, ACL, 802.1X, RADIUS and management via Nuclias Network Controller.
MAIN FEATURES

48 Gigabit Ethernet ports for high-speed network connections.
4 10G SFP+ ports for high-capacity uplinks.
Physical stacking of up to 9 switches.
Switching capacity: 176 Gbps.
Maximum forwarding rate: 130.95 Mpps.
6 kV surge protection on all ports RJ-45.
Redundant RPS power supply for greater service continuity.
Zero-Touch Provisioning for automatic deployment.
Centralized management via Nuclias Network Controller.
Advanced security: VLAN, ACL, Port Security, 802.1X and RADIUS.
Fast recovery with ERPS.
2 smart fans for efficient cooling.

Benefits for your network

Greater scalability: easily expand by physically stacking units.
High availability: RPS support and failover to reduce interruptions.
Better performance: 10G SFP+ links ideal for servers, aggregation or backbone.
Simplified administration: centralized management and automatic provisioning.
Greater security: access control and network data protection features.
Improved reliability: 6 kV protection against electrical surges on ports RJ-45.

Advanced features

ZTP: makes it easy to configure the switch automatically without complex manual intervention.
ERPS G.8032: enables fast recovery in ring topologies.
OAM: IEEE 802.1ag and ITU-T Y.1731 support for monitoring and diagnostics.
Optimized multicast: IGMP/MLD Snooping and ISM VLAN to improve IPTV and streaming traffic.
SIM: allows you to manage multiple switches as a virtual stack under a single IP.

Technical specifications



MODEL
DGS-1530-52

KIND OF PRODUCT
Stackable Smart Managed Gigabit Switch

Interfaces
48 x 1GE RJ-45 + 4 x 10G SFP+

Switching capacity
176 Gbps

Maximum forwarding rate
130.95 Mpps

Maximum consumption
44,1 W

Surge protection
IEC61000-4-5 6 kV on all Ethernet ports RJ-45

Console port
RJ-45

Power supply
Internal

RPS support
YES

VENTILATION
2 smart fans

Operating temperature
-5 °C a 50 °C

Storage temperature
-20 °C a 70 °C

Operating humidity
0% to 95% non-condensing

Storage humidity
0% to 95% non-condensing

DIMENSIONS
440 x 210 x 44 mm

WEIGHT
3,2 kg

RECOMMENDED USE
The D-Link DGS-1530-52 is a suitable solution for businesses, educational institutions, hotels, offices and corporate networks that need a stable, secure infrastructure ready to grow.
