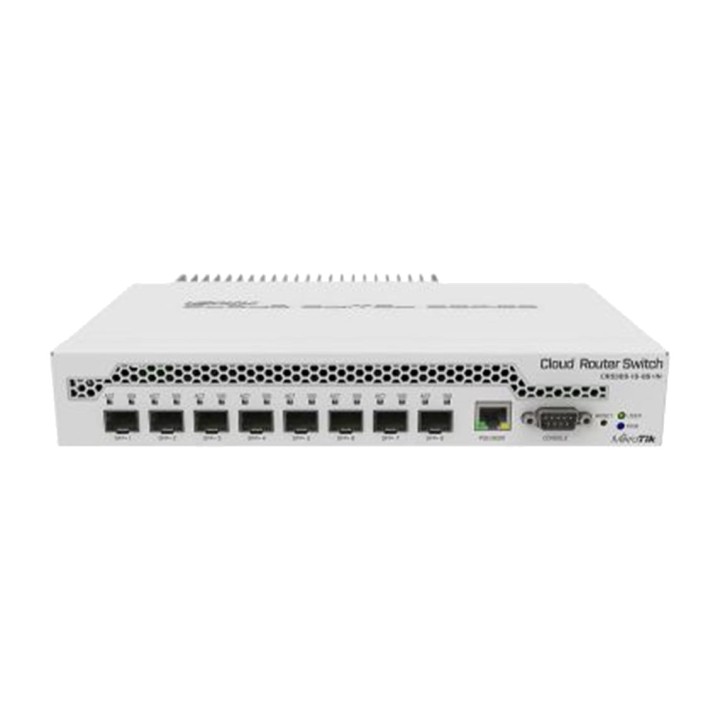

MIKROTIK Managed desktop switch with 8 SFP+ ports CRS309-1G-8S+IN 10G MGS0000034543

Features of the Mikrotik CRS309-1G-8S+IN Cloud Router Switch
The Mikrotik CRS309-1G-8S+IN is a compact, powerful desktop switch designed for networks that need 10G connectivity via SFP+ in a professional, efficient form factor. With 8 SFP+ slots, a Gigabit Ethernet management port and dual operating system RouterOS / SwitchOS, it offers a versatile solution for both advanced network environments and rack installations.
10G connectivity in a compact form factor
This Cloud Router Switch features 8 10G SFP+ slots, allowing you to create high-speed links for servers, network storage, uplinks or backbone networks. Its total switching capacity of 162 Gbps and non-blocking throughput of 81 Gbps make it an excellent choice for demanding networks.

8 slots SFP+ 10G
1 Gigabit Ethernet management LAN port
Total switching capacity: 162 Gbps
Total non-blocking throughput: 81 Gbps

Dual-core processor and dedicated memory
The device features a dual-core 98DX8208 CPU running at 800 MHz, accompanied by 512 MB of RAM. This configuration enables stable management of advanced networking, administration and switching functions in professional environments.

32-bit ARM architecture
CPU 98DX8208
2 cores
Nominal CPU frequency: 800 MHz
MEMORY RAM: 512 MB
Storage : 16 MB FLASH

RouterOS or SwitchOS with dual boot
The Mikrotik CRS309-1G-8S+IN lets you choose between RouterOS and SwitchOS, adapting to the management requirements of each installation. RouterOS offers advanced networking features, while SwitchOS is designed for more straightforward management of switch behaviour.

Operating system: RouterOS / SwitchOS
Dual boot
Router license level OS: 5

Flexible power supply and professional design
Its passive desktop design enables quiet and efficient installation. It also supports power via a DC jack or PoE IN 802.3af/at, offering greater flexibility in different mounting scenarios.

DC inputs: 2, via DC connector and PoE IN
PoE input: 802.3af/at
Po input voltage E IN: 18-57 V
Jack input voltage DC: 12-57 V
Maximum power consumption : 23 W
Maximum consumption without accessories : 17 W

Ready for demanding environments
The CRS309-1G-8S+IN is designed to operate in a wide range of temperatures, with a tested range of -40° C to 70° C. It also includes an RS232 serial port, a grounding terminal and a CPU temperature monitor.

Dimensions: 272 x 158 x 44 mm
Tested ambient temperature: -40° C to 70° C
Serial port RS232
CPU temperature monitor
Grounding terminal

Contents included
The product includes the accessories needed to facilitate setup and installation, including a power supply and rack ears.

Power supply 24 V, 1,2 A
K48 screw set
Rack ears
Volume (m ³): 0.0099
