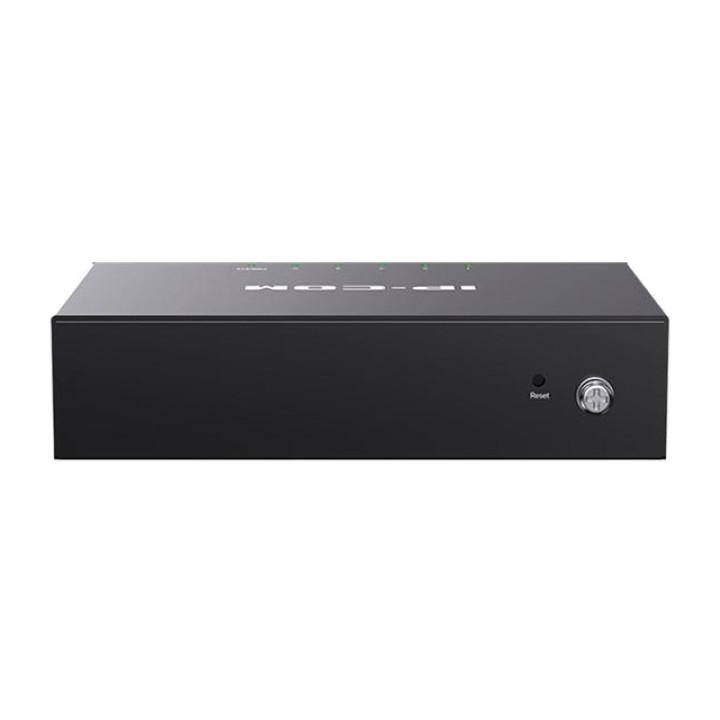

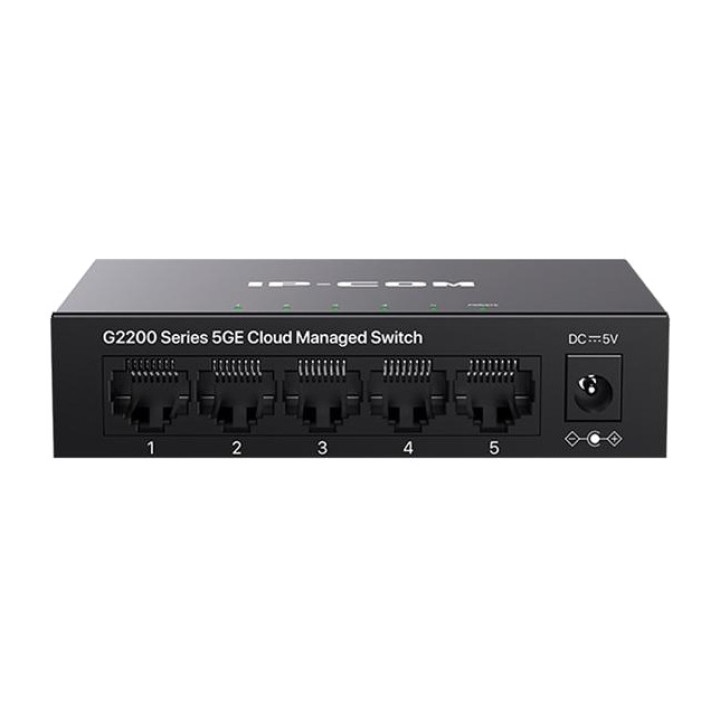

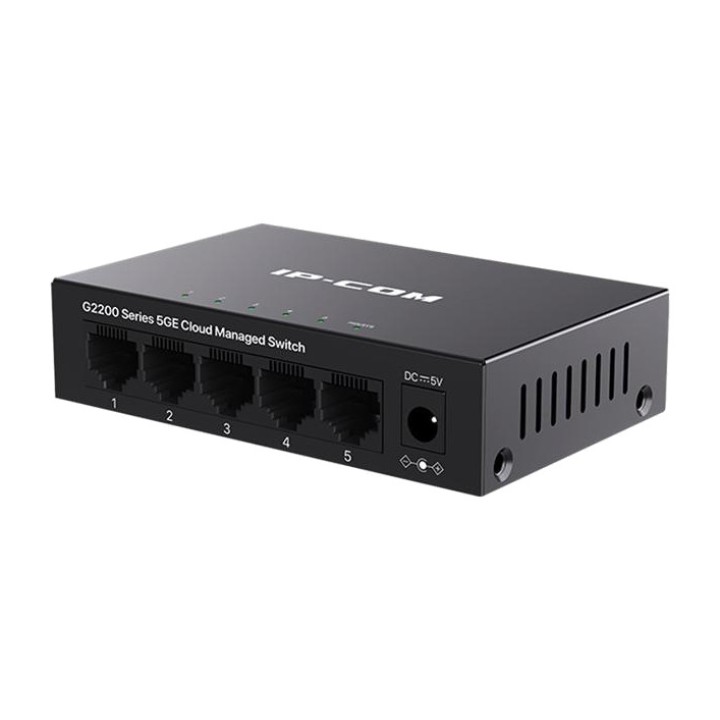

IP-COM 5-port cloud-managed Gigabit switch G2205D MGS0000026299

Features of the 5-port IP-COM Cloud Gigabit Switch
This 5-port cloud-managed Gigabit switch is designed for professional networks that need a compact, efficient and easy-to-manage solution. With its 5 1GE RJ45 ports, advanced security features, IP-COM Cloud compatibility and management via the ProFi app, it allows you to expand and monitor wired networks in offices, shops, small businesses or technical installations while using very little power.
Gigabit performance for stable networks
The switch offers 5 10/100/1000 Base-T Ethernet ports, providing Gigabit connectivity for network equipment, computers, access points, routers or other wired devices. Its 10 Gbps switching capacity enables non-blocking line-rate forwarding, keeping traffic flowing smoothly even when several ports are active.

5 10/100/1000 Base-T Ethernet ports
5 ports RJ45 1GE
Switching capacity: 10 Gbps
Forwarding rate: 7.4 Mpps
Non-blocking wire-speed forwarding

MAC table and efficient flow control
To improve network stability, the device features an 8K MAC address table with automatic learning, enabling it to identify and manage connected devices efficiently. It also supports IEEE 802.3x full-duplex flow control and half-duplex backpressure flow control to optimise data transmission.

MAC address table: 8K
MAC address learning
Full-duplex flow control x IEEE 802.3x
Half-duplex backpressure flow control

Cloud management with IP-COM Cloud and ProFi
One of its main advantages is remote cloud management, which allows you to manage the device from IP-COM Cloud and the ProFi app. This feature makes it easy to monitor the network, view device status and perform remote maintenance without physically accessing the switch.

Compatible with cloud management via IP-COM Cloud
Management via the ProFi app
Management via the cloud web interface
Administration via local web interface
Configuration delivery from the cloud

Easy device onboarding and monitoring
The switch allows devices to be added in batches by scanning QR codes, simplifying deployment in installations with multiple devices. In addition, the platform provides a visible network topology with real-time operating status, making infrastructure diagnosis and maintenance easier.

Scan QR codes to add devices in batches
Visible network topology
Real-time operating status
Log report support
Fault detection

Remote maintenance and network diagnostics
The device is designed to simplify maintenance tasks with features such as remote reboot, backup, update, and configuration import or export. It also includes a ping test for basic connectivity diagnostics directly from the management interface.

Remote maintenance with device reboot
Configuration backup
HTTP-compatible update
Configuration import and export
Network diagnostic ping test

Advanced VLAN and segmentation features
This switch includes features designed to provide more flexible and secure traffic management. It supports IEEE 802.1q VLAN, QVLAN and transparent VLAN transmission, allowing the network to be segmented and data flow adapted to different usage scenarios.

Supports IEEE 802.1q VLAN
QVLAN
Transparent VLAN transmission
MAC address binding for white lists and VLANs
MAC address binding to ports

Network security and access control
The switch incorporates several security features to strengthen network control. Support for DHCP Snooping, port isolation, MAC address binding and abnormal status alarms helps reduce risks and improve stability in professional environments.

DHCP Snooping for network security
Port isolation
MAC address binding to ports
MAC address binding for access control
Abnormal status alarm

Loop protection and traffic control
To prevent network issues, the device features loop protection with STP Loop Guard on each port and loop detection. It also includes N:1 port mirroring for traffic monitoring and QoS features to prioritize important data.

Loop protection with STP Loop Guard on each port
Loop detection
Port mirroring N:1
Traffic monitoring
QoS with DSCP, SP, SWP and WP priority

Compact design for desktop or wall mounting
Its compact form makes it easy to install on a desktop or wall, fitting into small spaces such as communications cabinets, workstations or small technical rooms. The metal housing provides greater durability for continuous use in professional environments.

Suitable for desktop mounting
Compatible with wall mounting
Compact design for different environments
Dimensions: 100 x 64 x 25 mm
Casing material: metal

Electrical protection and low power consumption
The switch is designed to provide safe and efficient operation. It includes 6 kV lightning protection on both the ports and the power supply, and has a maximum power consumption of less than 3 W, making it a suitable solution for permanent installations with low energy consumption.

Port lightning protection: 6 kV
Lightning protection on power supply: 6 kV
Power supply method: 100-240 V AC, 50/60 Hz
Maximum power consumption: < ,3 W

Integrated indicators and controls
The device features LED indicators for easy visual checking of its operating status. It also includes a factory reset button, useful for restoring the initial settings when necessary.

Power LED indicators
Link and activity LED indicators
System LED indicator
Factory reset button

Other technical specifications

Product type: 5-port cloud-managed Gigabit switch
Interfaces: 5 ports RJ45 1GE
Switching capacity: 10 Gbps
Forwarding rate: 7.4 Mpps
MAC address table: 8K
VLAN features: QVLAN, IEEE 802.1q VLAN and transparent VLAN transmission
Security features: DHCP Snooping, port isolation and MAC address binding
Maintenance features: remote reboot, backup, update, ping test and configuration import/export
Operating temperature: 0 °C to 40 °C
Storage temperature: -40 °C to 70 °C
Operating humidity: 10% to 90% non-condensing
Storage humidity: 5% to 90% non-condensing
Certifications: FCC, CE, RoHS
Volume (m ³): 0.0006
