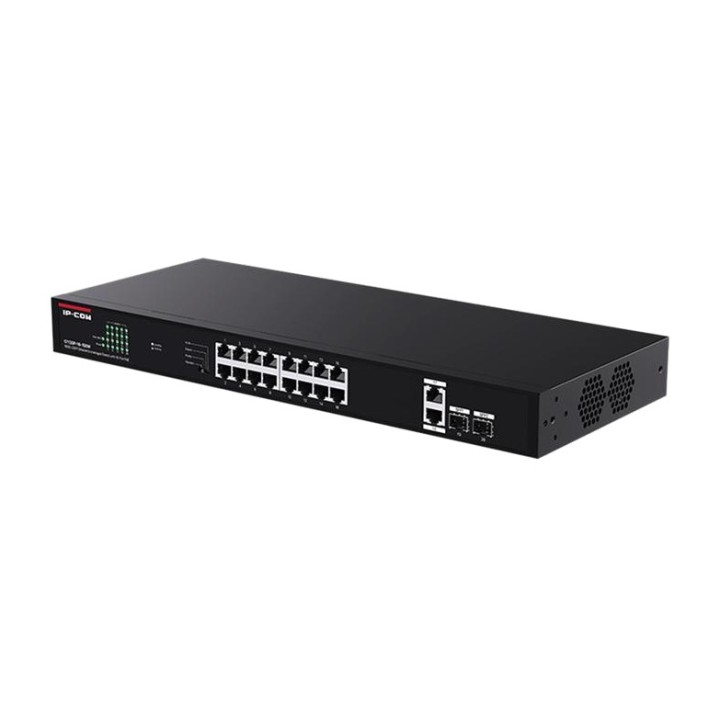

IP-COM 16-port Gigabit unmanaged PoE switch with 4 uplinks G1120P 150W MGS0000026290

Features of the 16-Port Gigabit PoE Switch + 2 RJ45 + 2 SFP
This 16-port Gigabit PoE switch with RJ45 and SFP uplinks is designed for professional installations that need to connect and power multiple network devices from a single unit. With 16 Gigabit PoE ports, 2 RJ45 uplink ports, 2 SFP ports and a total PoE power budget of 135 W, it is a suitable solution for video surveillance networks, access points, offices, shops, educational institutions, and small or medium-sized businesses.
Gigabit performance with non-blocking forwarding
The switch offers a switching capacity of 40 Gbps, enabling non-blocking wire-speed forwarding to maintain stable transmission even when several devices are connected at the same time. Its forwarding rate of 29.8 Mpps and large buffer design help improve traffic flow in demanding networks.

16 10/100/1000 Base-T Ethernet ports with PoE for data and power
2 10/100/1000 Base-T Ethernet uplink ports
2 100/1000 Base-X SFP optical ports for flexible connectivity
Switching capacity: 40 Gbps
Forwarding rate: 29.8 Mpps
Large 4 Mb buffer for stable performance

16 PoE ports for cameras and access points
Thanks to its 16 Gigabit PoE ports, this switch can power compatible devices such as HD cameras, PoE access points or network terminals using the same Ethernet cable as for data. This reduces cabling, simplifies installation and facilitates neat deployments in professional environments.

Compatible with IEEE 802.3af/at standards
Maximum output power per port : 30 W
Total PoE available : 135 W
Total power consumption of the switch : 150 W
Automatic detection of PD devices
16 Gigabit PoE ports for HD cameras and PoE access points

RJ45 and SFP uplinks for greater flexibility
The device features 2 Gigabit RJ45 ports and 2 1GE SFP ports for uplinks, allowing it to be integrated with routers, core switches, fiber links or communications cabinets. This combination offers more versatile connectivity for networks that need to grow or distribute traffic between different areas.

18 1GE RJ45 ports in total, including 16 PoE ports
2 1GE SFP ports for uplink
Gigabit RJ45 ports for direct connection to the main network
SFP ports for fiber links or trunk connections

Four operating modes
This switch has four operating modes selectable via a mode button, allowing the network behavior to be adapted to the type of installation. These modes help prioritize traffic, extend transmission distances or isolate devices to improve network stability.

Standard Mode: all ports can communicate with each other as on a common unmanaged PoE switch
Priority Mode: ports 1 to 8 have high priority to reduce packet loss and congestion
Extend Mode: the transmission distance of ports 9 to 16 can reach up to 250 meters while maintaining communication between all ports
VLAN Mode: ports 1 to 16 are isolated from each other but can communicate with ports 17, 18, SFP1 and SFP2

VLAN mode to isolate traffic and prevent conflicts
VLAN mode is especially useful in installations with many IP cameras or connected devices, as it allows the PoE ports to be isolated from each other while maintaining communication with the uplinks. This function helps reduce broadcast storms and minimize potential DHCP conflicts within the network.

Isolation between ports 1 to 16
Communication with ports 17, 18, SFP1 and SFP2
Ideal for reducing broadcast storms
Suitable for isolating DHCP conflicts

Electrical protection and metal housing
The switch is designed to provide stable operation in demanding installations thanks to 6 kV lightning protection on the ports and power supply. In addition, its robust metal housing improves the device’s durability and promotes efficient heat dissipation during continuous use.

6 kV lightning protection on ports
6 kV lightning protection on power supply
Durable metal housing
Efficient heat dissipation
Stable operation under adverse network conditions

Flexible installation in a rack, on a desk or on a wall
With a standard 1U height design and a 19-inch metal body, this switch can be easily integrated into server racks or communications cabinets. It also supports desktop or wall installation, offering flexibility for different deployment scenarios.

Compatible with standard 1U rack mounting
Compatible with desktop installation
Compatible with wall mounting
Standard 19-inch metal housing
Compact and flexible design for various network deployments

Network security, control and compatibility
The device complies with the main Ethernet and PoE standards, ensuring compatibility with a wide range of network devices. It also features an 8K MAC address table with automatic learning and flow control to improve traffic stability in professional environments.

Complies with IEEE 802.3
Complies with IEEE 802.3u
Complies with IEEE 802.3ab
Complies with IEEE 802.3z
Complies with IEEE 802.3x
Complies with IEEE 802.3af/at
8K MAC address table with automatic learning
Full-duplex flow control x IEEE 802.3x
Half-duplex control with backpressure

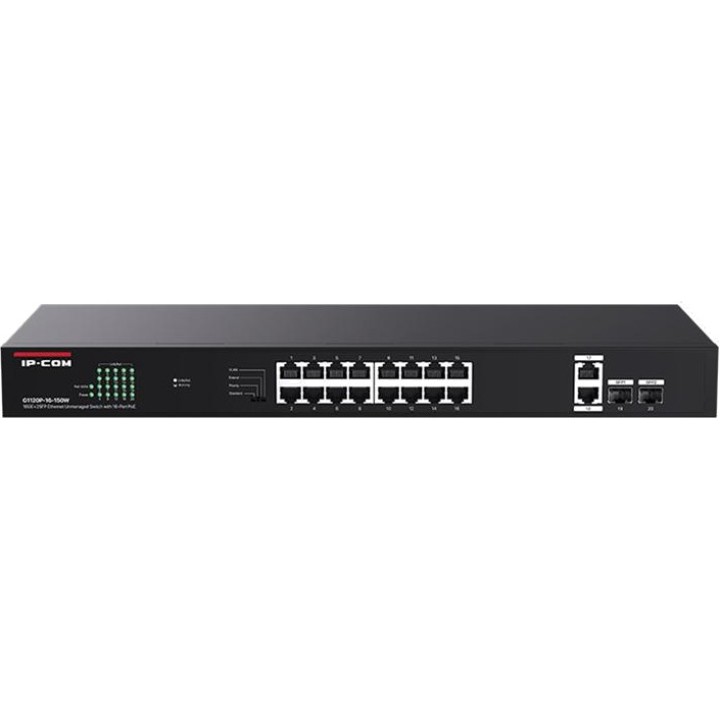

Indicators and mode control
The integrated LED indicators allow you to quickly check the power, link, activity and maximum PoE status. In addition, the mode button makes it easy to switch between the different operating profiles without complex configurations.

Power LED indicators
Link and activity LED indicators
Maximum PoE status indicator
Function mode button
Switch between Standard, Priority, Extend and VLAN modes

Other technical specifications

Product type: Gigabit PoE switch with 16 PoE ports, 2 RJ45 uplink ports and 2 SFP ports
RJ45 interfaces: 18 1GE RJ45 ports, including 16 with PoE
SFP interfaces: 2 ports SFP 1GE
PoE interface: pins 1, 2+, 3, 6-
Dimensions: 440 mm x 178 mm x 44 mm
Casing material: metal
Power supply method: 100-240 V AC, 50/60 Hz
Power consumption : 150 W
Switching capacity: 40 Gbps
Forwarding rate: 29.8 Mpps
Operating temperature: 0 °C to 45 °C
Storage temperature: -40 °C to 70 °C
Operating humidity: 10% to 90% non-condensing
Storage humidity: 5% to 90% non-condensing
Certifications: FCC, CE, RoHS
Volume (m ³): 0.0121
