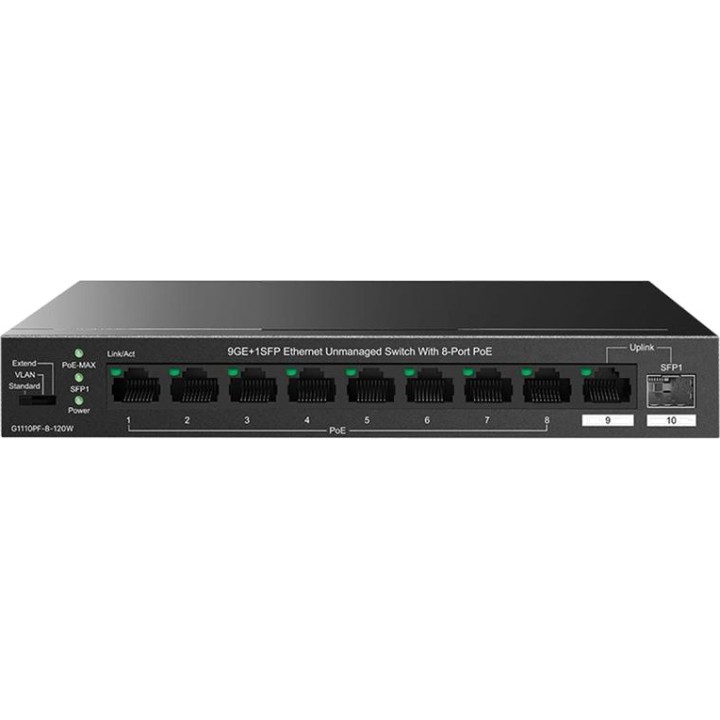

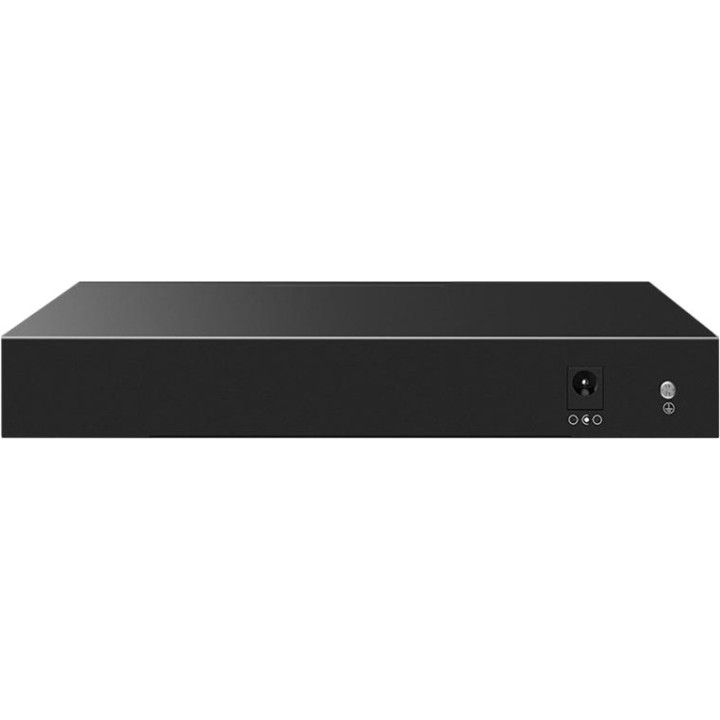

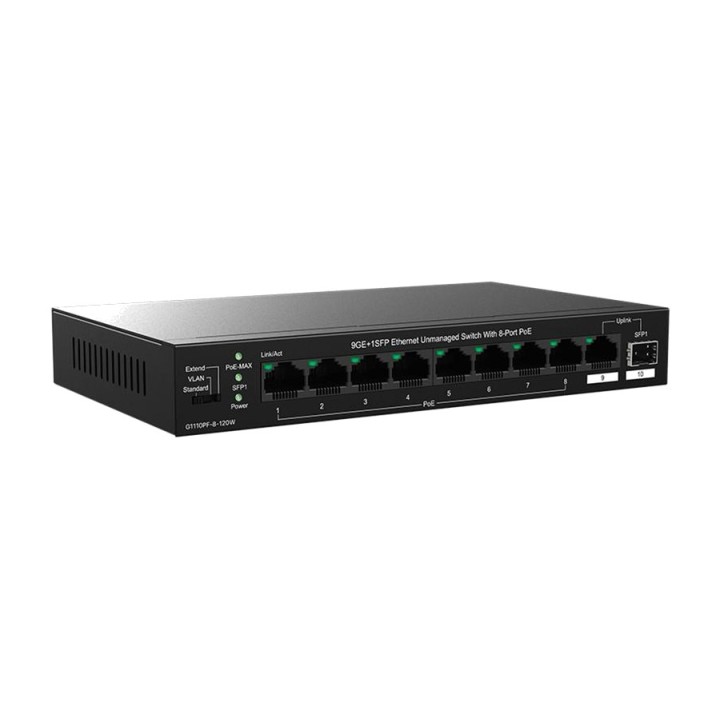

IP-COM 8-port unmanaged Gigabit PoE switch with uplinks G1110PF 120W MGS0000026289

Features of the 8-Port Gigabit PoE Switch + SFP
This 8-port Gigabit PoE switch is designed to deliver high performance, efficient power supply and flexible deployment in professional environments such as IP video surveillance, business networks, offices, retail premises or educational facilities. With PoE power of up to 110 W, selectable operating modes and an SFP uplink, it is a robust and versatile solution for modern networks.
Gigabit performance and non-blocking switching
The switch ensures stable, line-rate data transmission, even with multiple devices connected simultaneously. Its high switching capacity prevents bottlenecks and ensures smooth operation on demanding networks.

8 10/100/1000 Mbps Base-T Ethernet ports with PoE
1 10/100/1000 Mbps Base-T Ethernet port for data only
1 100/1000 Mbps Base-X SFP port for uplink
Switching capacity: 20 Gbps
Forwarding rate: 14,9 Mpps

Powerful and efficient PoE power supply
Compatible with IEEE 802.3af/at standards, this switch can directly power IP cameras, access points or VoIP phones, reducing cabling and simplifying installation. Its high PoE budget makes it ideal for higher-power devices.

Maximum PoE power per port : 30 W
Total PoE available : 110 W
Total switch power consumption : 120 W
8 Gigabit PoE ports for HD cameras or APs

Operating modes tailored to each scenario
It features a physical mode selection button that lets you adapt the switch’s behaviour to the network’s needs, improving security, range or traffic segmentation.

Standard mode: all ports communicate with each other
VLAN mode: ports 1 to 8 are isolated from each other, with access to port 9 and SFP1
Extend mode: up to 250 m at 10 Mbps on ports 1 to 8

Robust design and advanced protection
Built with a metal housing and surge protection, this switch is designed to operate reliably even in electrically demanding environments, such as outdoor installations or areas with frequent storms.

6 kV lightning protection on ports and power supply
Strong and durable metal housing
High operational stability

Flexible installation and visual monitoring
Its compact design allows desktop or wall mounting, making it easy to adapt to different spaces. In addition, the LED indicators make it easy to monitor network status and PoE power.

Desktop or wall mounting
LED indicators for power, link/activity and PoE status
PoE interface via pins 1, 2+, 3, 6-

Other technical specifications

MAC address table: 16K with automatic learning
IEEE 802.3x flow control, full duplex and half duplex with backpressure
Power supply: 100-240 V AC, 50/60 Hz
Operating temperature: 0 °C to 45 °C
Storage temperature: -40 °C to 70 °C
Operating humidity: 10% to 90% non-condensing
Certifications: FCC, CE, RoHS
Volume (m ³): 0.0090
