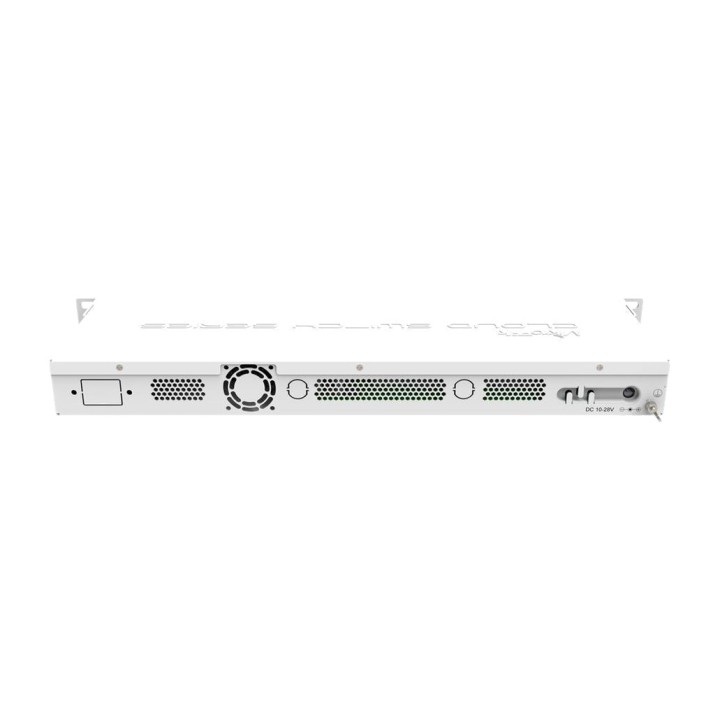

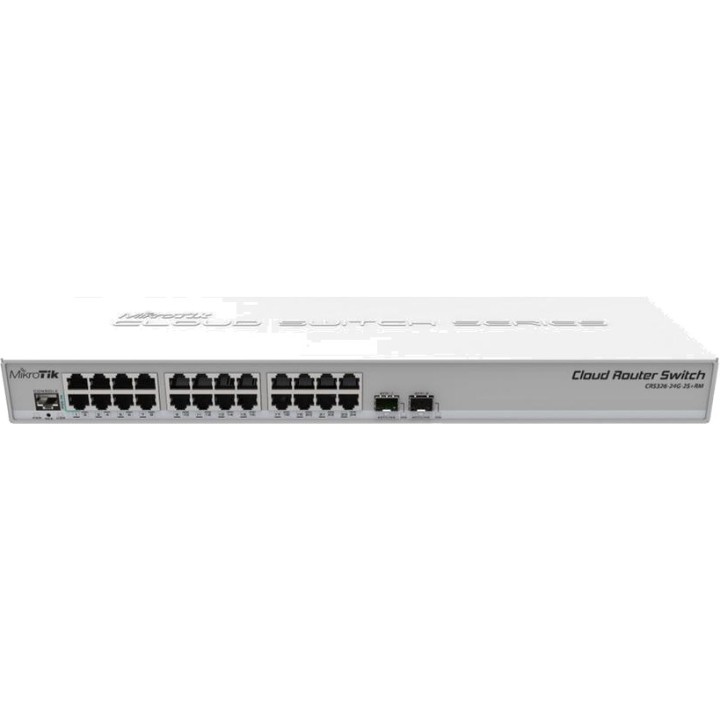

MIKROTIK 24-port Gigabit managed switch with 2 SFP+ for rack CRS326-24G-2S+RM MGS0000024456

24-port Gigabit Ethernet switch with two SFP+ ports and wire-speed connectivity with several new switching features.

It has a dual-boot function that lets you choose the operating system you prefer to use, RouterOS or SwOS. If you prefer a simplified operating system just for the switch, with more switch-specific features
switch, use SwOS. If you are used to Winbox and would like to use routing and other Layer 3 features on some ports of your CRS, boot and use RouterOS. You can select the desired operating system
from RouterOS, from SwOS, or from the RouterBOOT loader configuration.

It provides all the basic functionality for a managed switch, and more: it lets you manage port-to-port forwarding, apply MAC filtering, configure VLANs, mirror traffic, apply bandwidth limits, and
even modify some MAC and IP header fields. The SFP cage supports 1.25 Gb SFP and 10 Gb SFP+ modules.

specs
DETAILS
Product code CRS326-24G-2S+RM
32bit ARM architecture
CPU 98DX3236
Number of cores of CPU 1
Nominal CPU frequency 800 MHz
Switch chip model 98DX3236
Dimensions 443 x 144 x 44 mm
Router license OS 5
RouterOS / SwitchOS operating system
Size of RAM 512 MB
Storage capacity 16 MB
Storage type Flash
MTBF Approximately 200,000 hours at 25 C
Tested ambient temperature -40 C to 60 C
Feeding
DETAILS
Number of DC inputs 2 (DC jack, PoE-IN)
Input voltage of the connector CC 10-30 V
Maximum power consumption 24 W
Cooling type Passive
PoE in Passive PoE
PoE input voltage 10-30 V
Ethernet
DETAILS
Ethernet ports 10/100/1000 24
Fibre
DETAILS
Ports SFP+ 2
Peripherals
DETAILS
Serial console port RJ45
Certification and approvals
DETAILS
CE, EAC, ROHS certification
IP IP20
Volume (m ³): 0.0090
