IP-COM Unmanaged 8-port Gigabit PoE switch and 2 SFP G1110P 150W MGS0000024080

Features of the IP-COM G1110P-8-150W
The IP-COM G1110P-8-150W is an unmanaged 8GE+2SFP Ethernet switch with 8 PoE ports, designed for professional networks that need to transmit data and power compatible devices from a single unit. With 8 Gigabit PoE ports, 2 SFP ports, total PoE power of up to 130 W and a 1U rack-mount form factor, it is a suitable solution for video surveillance, wireless networks, hotels, educational institutions, parks, and small or medium-sized businesses.
8 Gigabit PoE ports for data and power
This switch features 8 10/100/1000 Base-T Ethernet ports capable of transmitting data and supplying PoE power to compatible devices. Compliant with IEEE 802.3af/at standards, it automatically detects connected devices and provides stable power to IP cameras, HD PoE access points and other network equipment.

8 10/100/1000 Base-T Ethernet ports for data and power
PoE ports 1 to 8 compatible with IEEE 802.3af/at
Maximum power per PoE port E: 30 W
Maximum total PoE output power : 130 W
PoE pin assignment: pins 1, 2, 4, 5 positive and pins 3, 6, 7, 8 negative

2 SFP ports for flexible uplinks
The G1110P-8-150W includes 2 100/1000 Base-X SFP ports, designed for fibre uplinks or backbone connections in professional networks. This connectivity allows the switch to be integrated into larger installations, facilitating connections between communications cabinets, core switches or distribution networks.

2 100/1000 Base-X SFP ports
Compatible with Gigabit uplinks
Suitable for networks with fibre or backbone links
Greater flexibility in professional deployments

Gigabit performance with non-blocking forwarding
The switch offers a 20 Gbps backplane bandwidth, enabling non-blocking wire-speed forwarding on all ports. In duplex mode, each port can reach up to 2000 Mbps, providing smooth transmission for networks with cameras, access points and high-traffic equipment.

Switching capacity: 20 Gbps
Packet forwarding rate: 14,9 Mpps
Non-blocking wire-speed forwarding
Up to 2000 Mbps per port in duplex mode
Forwarding mode: store-and-forward

8K MAC address table and flow control
To maintain efficient communication between devices, the G1110P-8-150W features an 8K MAC address table with automatic learning. It also incorporates IEEE 802.3x full-duplex flow control and half-duplex backpressure flow control, helping to prevent congestion and improve network stability.

MAC address table: 8K
MAC address learning
Full-duplex flow control x IEEE 802.3x
Half-duplex backpressure flow control

3 operating modes via DIP switch
This model supports 3 operating modes, selectable via a hardware DIP switch. This feature lets you adapt the switch’s behaviour to different network scenarios, from standard installations to environments with high data volumes or port isolation requirements.

Standard mode: flow control is enabled on all ports to prevent congestion and ensure stable operation
Flow control disabled mode: disables flow control and imposes no limits on data traffic, suitable for scenarios involving bulk uploads and downloads
VLAN mode: ports 1 to 6 are isolated from each other but can communicate with ports 7, 8, SFP1 and SFP2

VLAN mode to improve network stability
VLAN mode helps reduce broadcast storms by isolating access ports from each other. This feature is especially useful in video surveillance installations or networks with multiple end devices, as it allows communication with uplink ports without permitting direct traffic between certain devices.

Isolation between ports 1 to 6
Communication with ports 7, 8, SFP1 and SFP2
Helps reduce broadcast storms
Easy configuration via DIP switch

Smart PoE power supply
The switch provides smart PoE power, automatically detecting compatible devices to deliver power and data safely. With a total PoE power budget of 130 W, it can power multiple devices from the same unit, reducing cabling and simplifying installation.

Automatic detection of PoE devices
Power and data transmission via Ethernet cable
Compatible with HD PoE IP cameras and access points
Total switch power consumption : 150 W

6 kV lightning protection
The G1110P-8-150W features 6 kV lightning protection on all ports and the power adapter. This protection helps ensure safer, more stable operation in installations exposed to surges or demanding electrical conditions.

Port lightning protection: 6 kV
Lightning protection on the power adapter
Enhanced protection against surges
Stable operation even in environments with thunderstorms

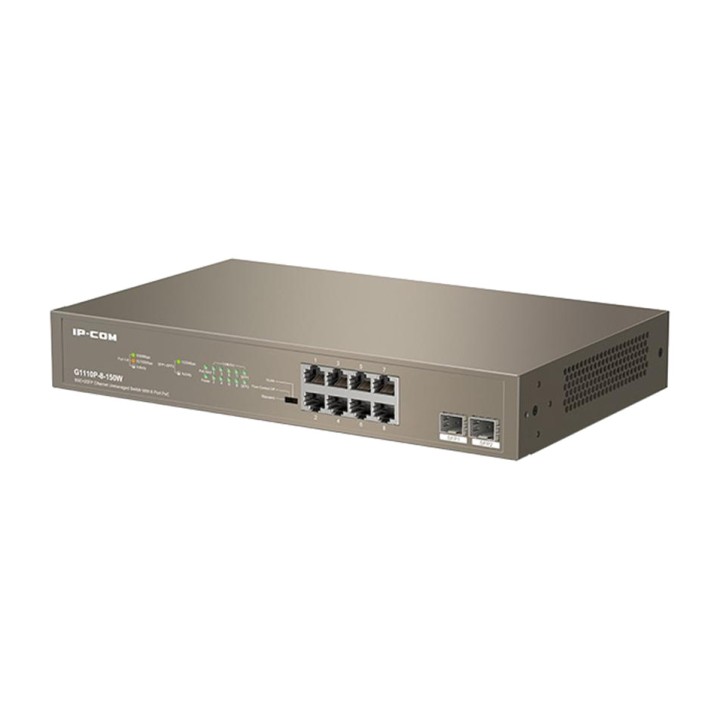

Professional rack-mount design
With a standard 1U height and dimensions of 294 x 179,6 x 44 mm, this switch is designed for rack installation. Its form factor allows for neat integration into communications cabinets, technical rooms or professional installations where clean cable routing is required.

Standard-height form factor 1U
Rack-mount compatible
Dimensions: 294 x 179.6 x 44 mm

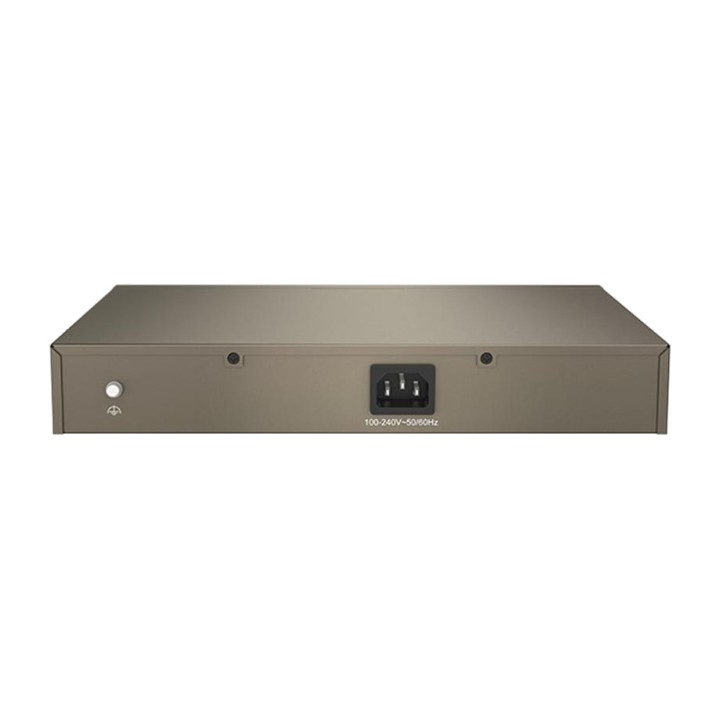

Input voltage: 100-240 V, 50/60 Hz

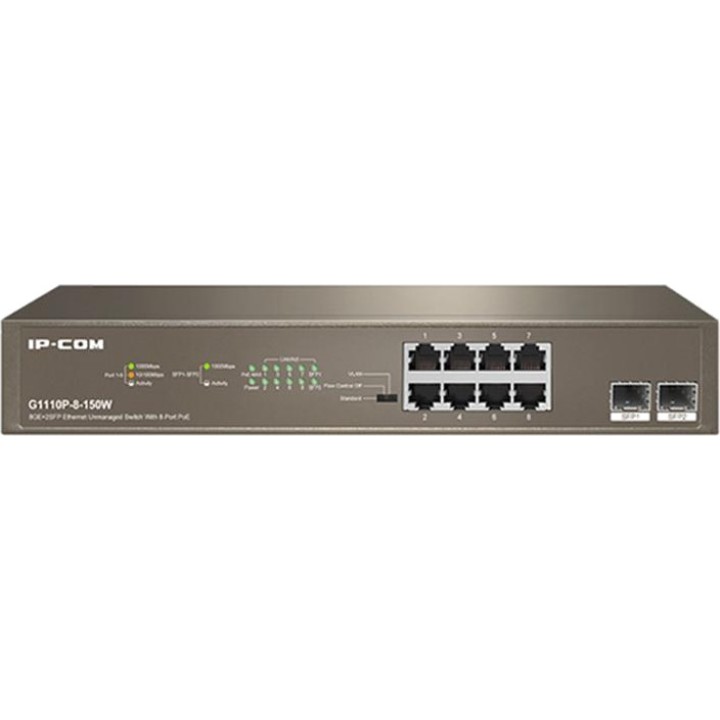

LED indicators for quick monitoring
The device includes LED indicators for visually checking the status of the ports, power supply and PoE usage. This information facilitates basic installation diagnostics and makes it possible to quickly identify the connection status of each port.

1 link/confirmation LED indicator for each port
1 PoE Max LED indicator for each device
1 power LED indicator for each device

Other technical specifications

MODEL: G1110P-8-150W
Product type: unmanaged 8GE+2SFP Ethernet switch with 8 PoE ports
Supported standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Interfaces: 8 10/100/1000 Base-T Ethernet ports for data/power
SFP interfaces: 2 100/1000 Base-X SFP ports
Switching capacity: 20 Gbps
Packet forwarding rate: 14,9 Mpps
MAC address table: 8K
Forwarding mode: store-and-forward
PoE ports: 1 to 8, compatible with IEEE 802.3af/at
Maximum power per PoE port E: 30 W
Maximum total PoE output power : 130 W
Total power consumption : 150 W
Lightning protection: 6 kV
Operating temperature: 0 °C to 45 °C
Storage temperature: -40 °C to 70 °C
Operating humidity: 10% - 90% RH, non-condensing
Storage humidity: 5% - 90% RH, non-condensing
Certifications: CCC, FCC, CE, RoHS
Volume (m ³): 0.0090
