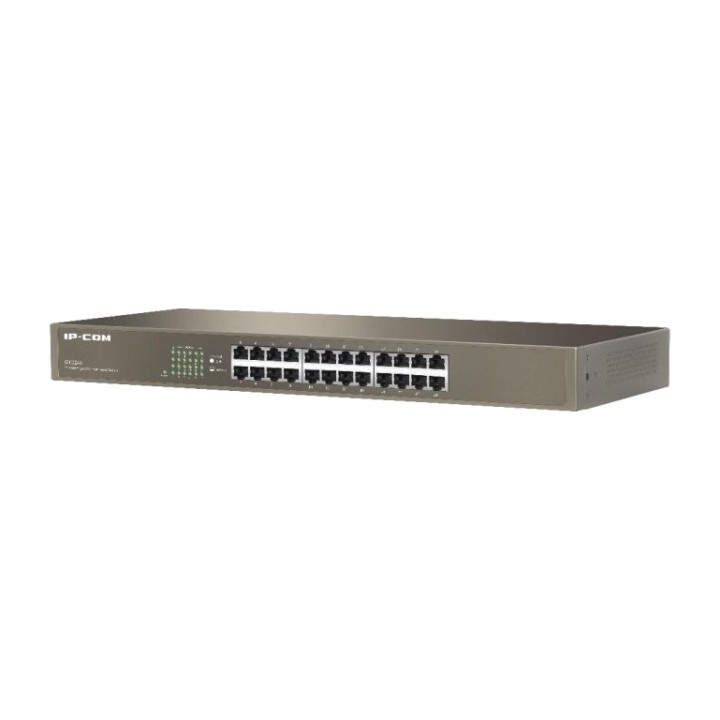

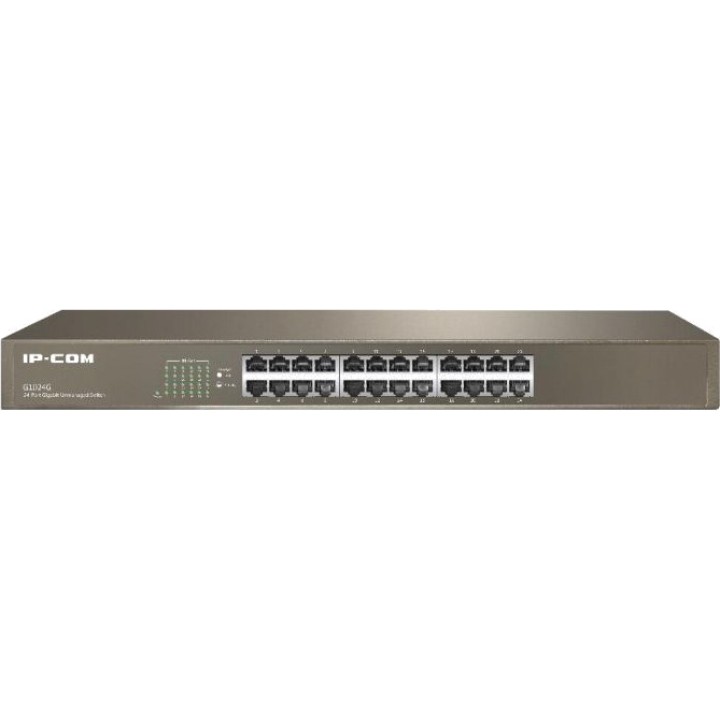

IP-COM 24-port unmanaged Gigabit rack switch G1024G L2 MGS0000022921

Features of IP-COM Networks G1024G
The IP-COM Networks G1024G is an unmanaged Layer 2 Gigabit switch designed to expand wired networks in offices, shops, classrooms, small businesses or professional installations that need stable, straightforward connectivity. With 24 RJ-45 Gigabit Ethernet ports, rack mounting and a switching capacity of 48 Gbit/s, it offers a reliable solution for connecting multiple devices without complex configurations.
24 Gigabit ports to expand the network
This switch features 24 RJ-45 Gigabit Ethernet 10/100/1000 Mbps ports, ideal for connecting computers, servers, network printers, access points or other wired devices. Its compatibility with Fast Ethernet and Gigabit speeds makes it easy to integrate into existing networks.

24 RJ-45 Gigabit Ethernet 10/100/1000 Mbps ports
24 copper Gigabit Ethernet ports
Compatible with 10BASE-T, 100BASE-TX, 100BASE-T and technologies 1000BASE-T
Compatible with Cat5 cable

Unmanaged operation and easy setup
As an unmanaged switch, the IP-COM G1024G is designed for quick and straightforward installation. It requires no advanced configuration, so simply connect the devices to expand the network immediately and reliably.

Switch type: Unmanaged
Switch cover: L2
Easy plug-and-play installation
Not stackable

High performance for Gigabit traffic
The G1024G offers a switching capacity of 48 Gbit/s and a forwarding rate of 35,7 Mpps, allowing it to handle network traffic smoothly even with several devices operating simultaneously. In addition, its 8.000-entry MAC address table contributes to efficient management of connected equipment.

Switching capacity: 48 Gbit/s
Forwarding rate: 35,7 Mpps
MAC address table: 8.000 entries
Full Duplex support

Network standards compatibility
This model complies with the main Ethernet standards, ensuring correct integration with a wide variety of network devices. It also includes flow control support to improve data transmission stability.

Network standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u , IEEE 802.3x
Flow control support
Auto MDI / MDI-X
10G support: No

Professional rack-mount design
The IP-COM G1024G features a professional rack-mount design, making it easy to install in communications cabinets or technical environments. Its metal housing provides strength and durability for continuous use in network installations.

Rack mounting: Yes
Casing material: metal
Product colour: Bronze
Dimensions: 440 x 178 x 44 mm

LED indicators and integrated power supply
Its activity, link, power and status LED indicators make it possible to quickly check the operation of the switch and connected ports. It also includes a power supply and operates with a universal AC input, making it easy to use in different environments.

LED indicators: activity, link, power and status
Power supply included
Input voltage AC: 100 - 240 V
AC input frequency: 50 - 60 Hz
Energy consumption : 13 W

Stable operation in professional environments
The switch is designed to operate reliably within typical temperature and humidity ranges, making it a suitable choice for network installations in offices, shops or indoor technical rooms.

Operating temperature: 0 °C to 40 °C
Storage temperature: -40 °C to 70 °C
Relative humidity for operation : 10% - 90%
Relative humidity during storage : 5% - 90%

Other specifications

Model: IP-COM Networks G1024G
MAKER: IP-COM
Part Number: G1024G
Ean: 6932392831181
Basic RJ-45 Ethernet switching port types: Gigabit Ethernet 10/100/1000
Number of basic RJ-45 Ethernet switching ports : 24
Power over Ethernet PoE: no
User manual included: Yes
Volume (m ³): 0.0055
