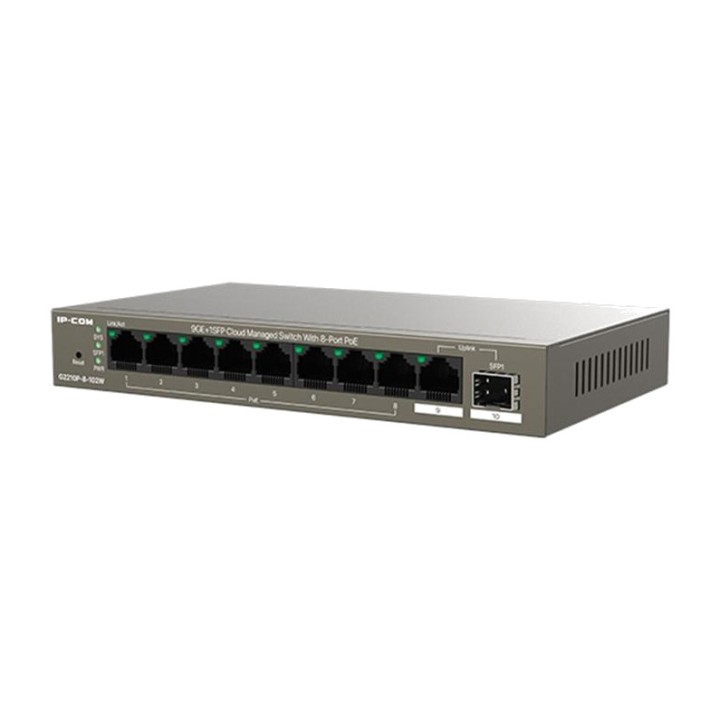

IP-COM 8-port Gigabit cloud-managed PoE switch with SFP uplink G2210P 102W MGS0000022414

Features of the IP-COM G2210P-8-102W
The IP-COM G2210P-8-102W is a cloud-managed PoE switch designed for professional networks that need to connect and power devices such as IP cameras, access points or network equipment using a single Ethernet cable. With 8 Gigabit PoE ports, an additional Ethernet data port and a Gigabit SFP port, it offers a compact, efficient and easy-to-manage solution for video surveillance installations, offices, retail premises or small business infrastructures.
8 Gigabit PoE ports and flexible uplinks
This switch features 8 10/100/1000 Base-T Ethernet ports with PoE and data, designed to power compatible devices directly through the network cable. It also has 1 Gigabit Ethernet data port and 1 1000 Base-X SFP port, allowing it to adapt to different connection scenarios and uplinks.

8 10/100/1000 Base-T Ethernet ports with PoE and data
1 100/1000 Base-T Ethernet data port
1 1000 Base-X SFP port
Dual uplink ports for greater flexibility

PoE power of up to 92 W
The G2210P-8-102W provides a total PoE power budget of 92 W, enough to power several compatible devices without the need for separate power adapters. Each PoE port can supply up to 30 W, complying with the IEEE802.3af and IEEE802.3at standards.

Maximum PoE output per port : 30 W
Total PoE power of the switch : 92 W
Compatible with IEEE802.3af
Compatible with IEEE802.3at
Supports PoE port power on and off

Cloud management with ProFi Cloud
The switch can be managed through the IP-COM ProFi Cloud web interface and the ProFi app, making remote network management easier. The platform allows devices to be added using a QR code, generates a visual network topology and lets you check the operating status of the equipment included in the project.

Management via the IP-COM ProFi Cloud web interface
Management via the ProFi app
Adding devices via QR code
Network topology visible from the cloud platform
Configuration delivery from the ProFi platform

Remote PoE reboot
One of its most practical features is remote PoE power reboot. The ProFi app lets you reboot power to the ports, a particularly useful feature in installations with IP cameras or devices that may require remote recovery.

Remote reboot of PoE ports
PoE management from the ProFi app
Dynamic display of PoE consumption
Display of remaining PoE power

Gigabit performance with 20 Gbps switching capacity
The switch offers a switching capacity of 20 Gbps and a packet forwarding rate of 14,9 Mpps, enabling a stable data flow between connected devices. Its store-and-forward mode helps improve network traffic efficiency and reliability.

Switching capacity: 20 Gbps
Packet forwarding rate: 14,9 Mpps
Forwarding mode: store and forward
MAC address table: 16K
MAC address learning

VLAN functions and network control
The IP-COM G2210P-8-102W includes management features designed to improve network organisation and security. It supports IEEE 802.1q VLAN, VLAN transparent transmission, QVLAN and DHCP client, making it easier to segment and manage different network environments.

Compatible with IEEE 802.1q VLAN
VLAN transparent transmission
QVLAN support
DHCP client
Network extension up to 250 m

Security, loop protection and traffic control
This model integrates security and maintenance features that help keep the network under control. It includes MAC address, port and VLAN whitelist binding, port isolation, STP loop protection and tools for monitoring traffic.

MAC address, port and VLAN whitelist binding
Port isolation
STP loop protection on each port
Traffic statistics
Port storm control
Port ingress and egress rate limits
Per-port flow control

Port mirroring and diagnostic tools
For maintenance and analysis tasks, the switch supports N:1 port mirroring, as well as connectivity tests such as Ping and Tracert. It also enables log reports, fault detection and remote maintenance.

Port mirroring N:1
Ping tests
Tracert tests
Log reports
Fault detection
Remote maintenance: reboot, backup and update

Easy updating and configuration
The device supports updates via HTTP and allows configurations to be imported and exported. These features make it easier to set up, maintain and restore settings in installations with multiple devices.

Update via HTTP
Configuration import
Configuration export
Web-based management and maintenance

Compact design for professional installations
With dimensions of 177.5 mm x 104 mm x 26 mm, this switch has a compact form factor that makes it easy to install in confined spaces. Its design is intended for environments requiring an efficient, manageable PoE solution with a small footprint.

Dimensions: 177.5 mm x 104 mm x 26 mm
Input voltage: 100 - 240 VAC, 50/60 Hz
Switching buffer: N/A
Port lightning protection: 6 kV
Power supply lightning protection: 6 kV

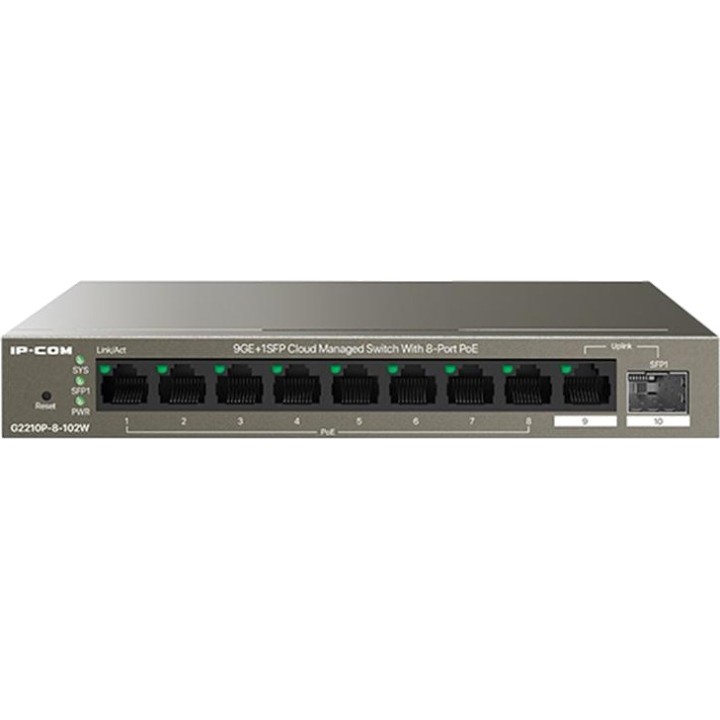

LED indicators for visual monitoring
The switch has LED indicators that make it easy to check the status of the ports and the device. This facilitates basic monitoring during installation and routine maintenance.

One Link/Act LED indicator for each port
One PWR LED indicator for each device
One SYS LED indicator for each device

Supported network standards
The G2210P-8-102W complies with various Ethernet, PoE and VLAN standards, making it easy to integrate into existing networks and with compatible devices from different manufacturers.

IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3z
IEEE 802.3af
IEEE 802.3at
IEEE 802.1Q

Environmental conditions and certifications
The switch is designed to operate under typical indoor installation conditions, with temperature and humidity ranges suitable for professional environments. It also has international conformity certifications.

Operating temperature : 0°C - 45°C
Storage temperature : -40°C - 70°C
Operating humidity: 10% - 90% RH, non-condensing
Storage humidity: 5% - 90% RH, non-condensing
Certifications: CCC, FCC, CE, RoHS

Other specifications

MODEL: G2210P-8-102W
Product type: 9GE + 1SFP cloud-managed switch with 8 PoE ports
IEEE 802.3x full-duplex flow control
Half-duplex backpressure flow control
APV management support
Volume (m ³): 0.0050
