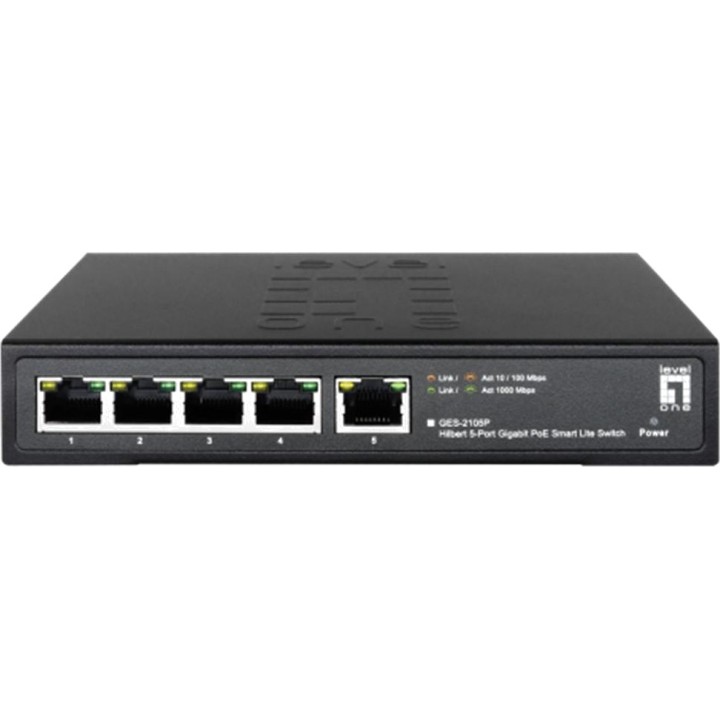

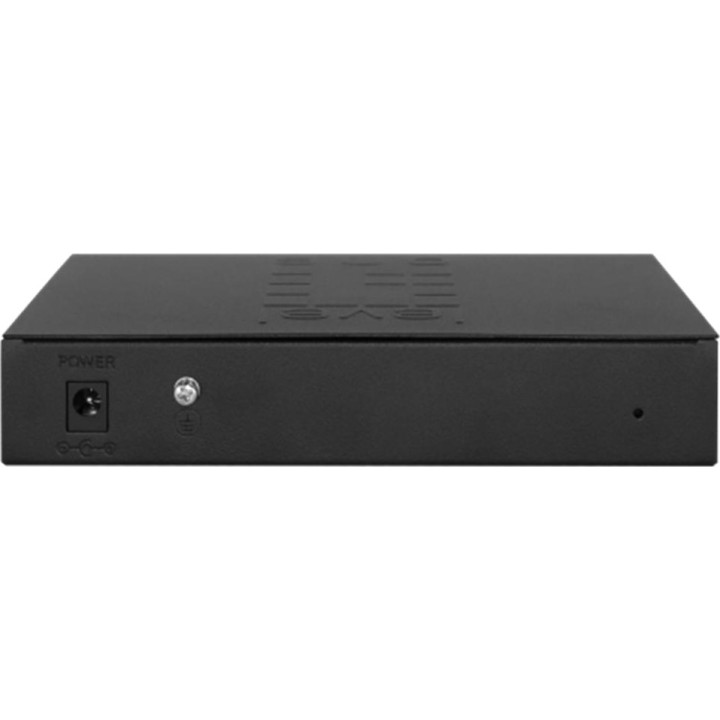

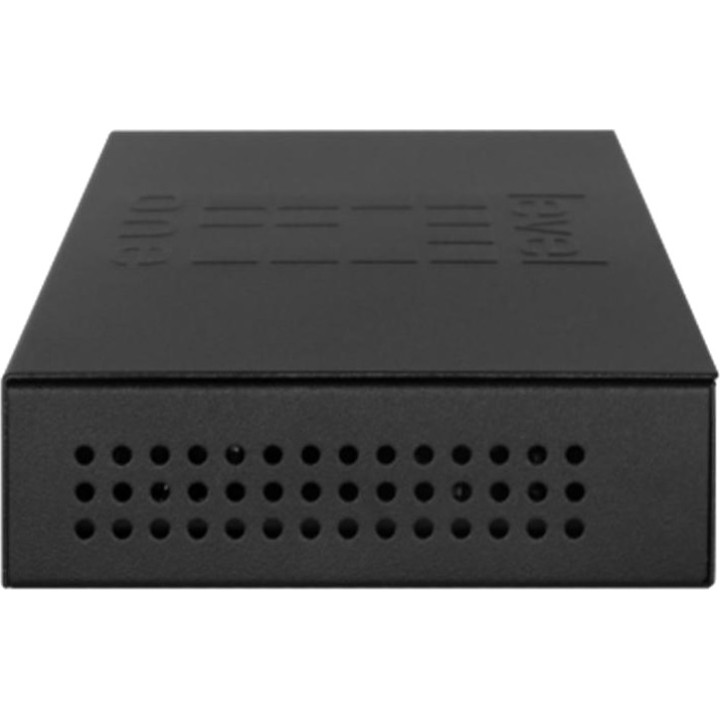

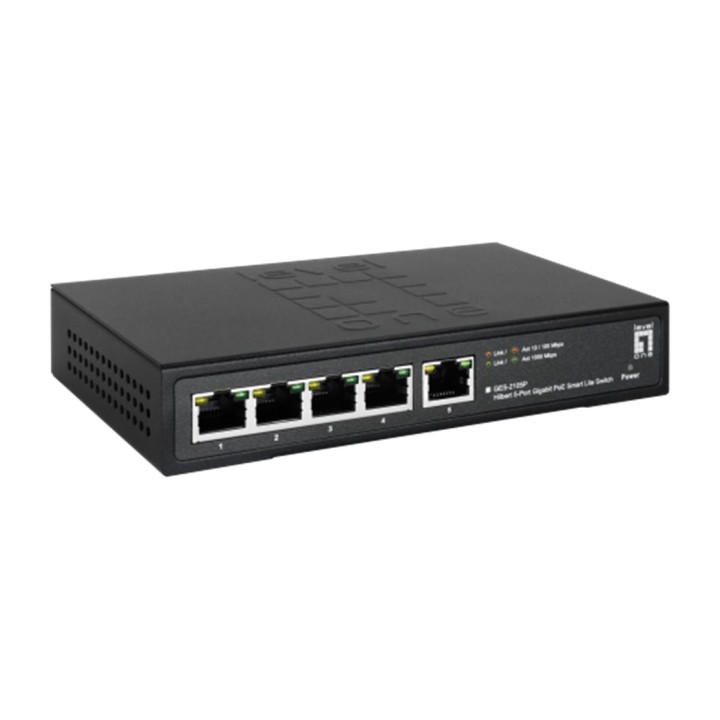

LEVELONE 5-port Gigabit PoE managed switch GES-2105P 60W MGS0000022378

GES-2105P Hilbert 5-port Smart Lite Gigabit PoE switch, 802.3at/af PoE, 4 PoE outputs, PoE power budget of 60 W
Model number GES-2105P
Code 52090703101
4 Gigabit Ethernet PoE-Plus ports compatible with PoE Watchdog
Total PoE power budget: 60 W, up to 30 W per port
Compatible with IEEE 802.3af/at PoE to simplify deployment and installation
1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto MDI/MDIX
Supports address auto-learning and auto-aging MAC 2K
9K jumbo frames to increase data transfer speeds
IP multicast filtering via IGMP Snooping V1/V2
802.1Q tag-based VLAN enables network segmentation for improved performance and security
IEEE 802.1p QoS with 4 priority queues
Supports unknown unicast/broadcast/multicast storm control
Minimize the carbon footprint with advanced energy efficiency technology (IEEE 802.3az)
4KV surge protection, 6KV contact/air ESD protection 8KV
Smart web-based management
Supports the LevelOne IP Locator for easier IP management.

The LevelOne GES-2105P Hilbert Gigabit PoE Smart Lite is a next-generation Ethernet switch that offers enhanced PoE functionality and usability for cost-effective business services
and transports Ethernet services over copper connections. The GES-2105P offers 5 RJ45 ports (10M/100M/1G), 4 of which are PoE+ (802.3at/af compatible and up to 60W in total). It
can be combined with LevelOne’s latest IP locator; the software is the easiest-to-use switch discovery tool and can search all switches in the Hilbert series,
instantly find the forgotten IP address and other information. Compatible with major Windows and Mac operating systems.

The LevelOne GES-2105P provides high hardware performance and environmental flexibility for businesses. The GES-2105P is ideal for delivering simple management, an optimal user experience and a lower
total cost of ownership.
general
black
EAN 4015867229194
Model number GES-2105P
Characteristic
Switching functions L2
IGMP Snooping
Link aggregation (supports static link aggregation)
Port mirroring
Cable test

VLAN
Supports up to 32 VLANs (of 4K VLAN ID)
MTU/Port /VLAN 802.1Q

Quality of Service (QoS)
Supports port/802.1p/DSCP-based priority
Supports 4 priority queues
Rate limit
Storm Control
Management Web-based graphical user interface (GUI)
Supports the LevelOne IP Locator for easier IP management.
Miscellaneous
Gigabit Ethernet data rate
Total PoE power budget 60,00
PoE compliant Yes
Simultaneous ports Total 5,00
Fanless Yes
Manageable Yes
Series HILBERT Series
Commercial grade
Non-disclosure
Integrated system SoC
Others
Approval and Compliance CE
UNITED KINGDOM
FCC Part 15, Subpart B Class B
RoHS
Operating humidity 10% RH ~ 90% RH
Operating temperature 0°C ~ 45°C
Storage humidity 5% RH ~ 95% RH
Storage temperature -40°C ~ 70°C
PACKAGE CONTENT GES-2105P
Power adapter with power cord
Quick installation guide
Declaration of Conformity
performance
Switching Capacity 10 Gbps
Physical Specifications
Dimensions (W x D x H) 160 x 95 x 29 mm
Product weight (kg) 0.4 kg
System specifications
Acoustic noise (dB) 0 dB (A)
Backplane (Gbps) 10
Flash memory size 2 MB
Packet forwarding rate 7.44 Mpps
Heat dissipation 23.88 (Btu/H)
Power, link/activity indicators
Jumbo frame (KB) 9 K
Address Table MAC 2 K
Mounting Desktop mounting, wall mounting
MTBF 43,800 hours
1.5 Mbit packet buffer
Pin assignment and polarity 1/2 (+), 3/6 (-)
Port configuration 4 × 10/100/1000 Mbps PoE+ copper downlink ports, 1 × 10/100/1000 Mbps RJ-45 copper uplink port
Power consumption 65 W (full load/PoE enabled)
Power supply 54 VCC, 1,2 A 64,8 W
Standards IEEE 802.3 10-BASE-T (Ethernet)
IEEE 802.3u 100-BASE-TX (Fast Ethernet)
IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
IEEE 802.3x flow control (full-duplex flow control)
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az: Energy Efficient Ethernet
Volume (m ³): 0.0004
