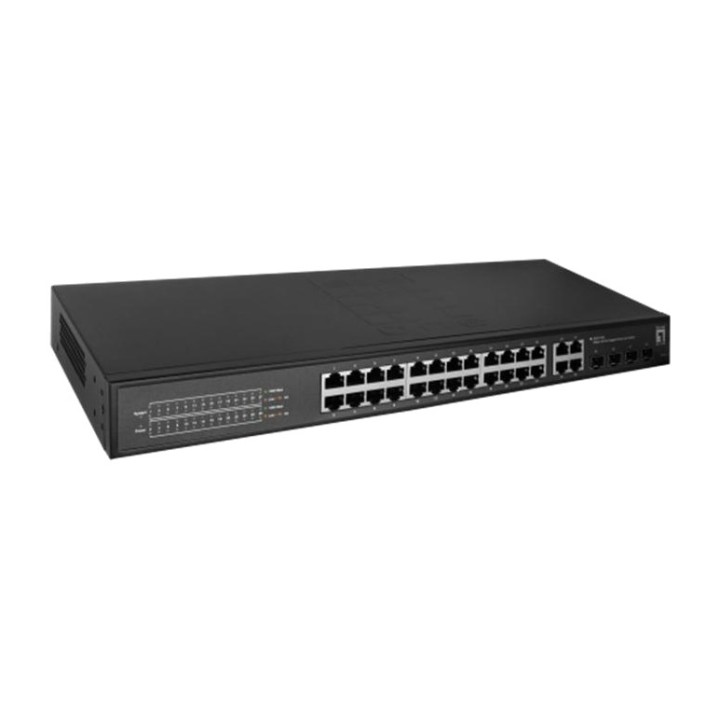

LEVELONE 24-port Gigabit managed switch with 4 combo SFP ports GES-2128 MGS0000022359

GES-2128 Hilbert 28-port Smart Lite Gigabit Switch, 24 x Gigabit RJ45, 4 x Gigabit combo SFP/RJ45
Model number GES-2128
SKU 52091703101
24 Gigabit Ethernet ports and 4 Gigabit combo ports SFP/RJ45
Supports auto-learning and automatic aging of MAC addresses of 8K
9K jumbo frames to increase data transfer speeds
IP multicast filtering via IGMP Snooping V1/V2
802.1Q tag-based VLAN enables network segmentation for improved performance and security
IEEE 802.1p QoS with 4 priority queues
Supports unknown unicast/broadcast/multicast storm control
Minimize your carbon footprint with advanced energy-efficient technology (IEEE 802.3az)
4KV surge protection, 6KV contact/air ESD protection 8KV
Smart web-based management
Supports the LevelOne IP Locator for easier IP management.
The LevelOne Hilbert GES-2128 Smart Lite Gigabit switch is a next-generation Ethernet switch offering powerful, enhanced functionality and usability, providing businesses with cost-effective
and transports Ethernet services over fiber or copper connections. GES-2128 offers 24 RJ45 ports (10M/100M/1G) and 4 GbE RJ45/SFP combo ports. It can be used with the latest IP Locator from
LevelOne; the software is the easiest-to-use switch discovery tool, allowing you to search all switches in the Hilbert series and instantly find a forgotten IP address and other
information. Compatible with major Windows and Mac operating systems.

The LevelOne GES-2128 provides high hardware performance and environmental flexibility for businesses. GES-2128 is ideal for delivering simple management, an optimal user experience and a lower total cost
of ownership.
general
black
EAN 4015867229286
Model number GES-2128
Characteristic
Switching functions L2
IGMP Snooping
Link aggregation (supports static link aggregation)
Port mirroring
Cable test

VLAN
Supports up to 32 VLANs (of 4K VLAN IDs)
MTU/Port /VLAN 802.1Q

Quality of Service (QoS)
Port/802.1p/DSCP-based priority support
Supports 4 priority queues
Rate limit
Storm Control
Management Web-based graphical user interface (GUI)
Supports the LevelOne IP Locator for easier IP management.
Miscellaneous
Gigabit Ethernet data rate
PoE compatible No
Concurrent ports Total 28,00
Fanless Yes
Manageable Yes
Series HILBERT Series
Commercial grade
Non-disclosure
Integrated system SoC
Others
Approval and Compliance CE
UNITED KINGDOM
FCC Part 15, Subpart B Class B
RoHS
Operating humidity 10% RH ~ 90% RH
Operating temperature 0°C ~ 45°C
Storage humidity 5% RH ~ 95% RH
Storage temperature -40°C ~ 70°C
PACKAGE CONTENT GES-2128
power cord
Rack mounting kit of 19"
Quick installation guide
Declaration of Conformity
performance
Switching Capacity 56 Gbps
Physical Specifications
Dimensions (W x D x H) 440 x 190 x 44.5 mm
Product weight (kg) 1.95 kg
System specifications
Acoustic noise (dB) 0 dB (A)
Backplane (Gbps) 56
Flash memory size 2 MB
Packet forwarding rate 41.664 Mpps
Heat dissipation 68.24 (Btu/H)
Indicators Power, System, Link/Act
Jumbo frame (KB) 9 K
Address Table MAC 8K
Mounting 19" rack mounting, desktop mounting
MTBF 43,800 hours
Packet buffer 4.1 Mbits
Port configuration 24 x 10/100/1000 Mbps RJ-45 copper ports, 4 Gigabit copper/SFP combo ports
Power consumption 20W
Power supply 100-240 VAC, 50-60 Hz
Standards IEEE 802.3 10-BASE-T (Ethernet)
IEEE 802.3u 100-BASE-TX (Fast Ethernet)
IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
IEEE 802.3z 1000BASE-X (Gigabit Ethernet)
IEEE 802.3x flow control (full-duplex flow control)
IEEE 802.3az: Energy Efficient Ethernet
Volume (m ³): 0.0038
