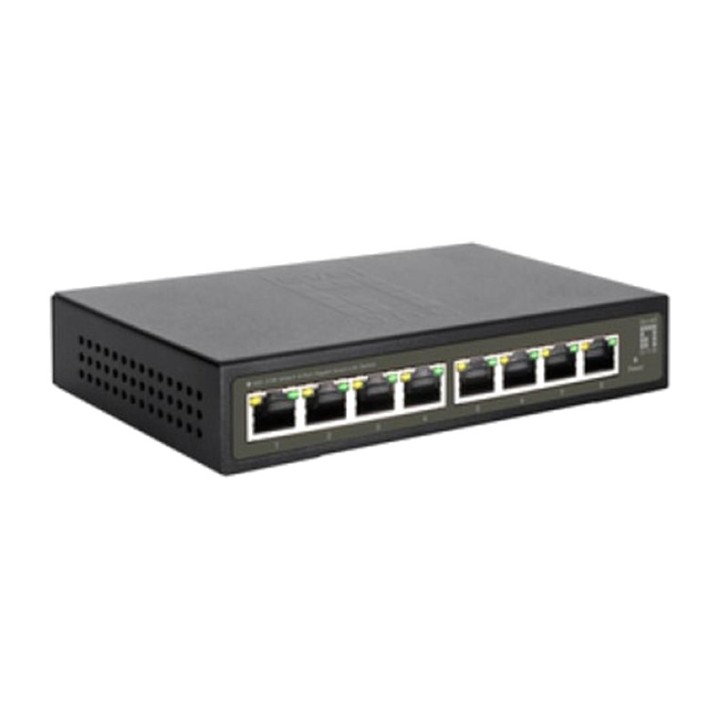

LEVELONE 8-port Gigabit managed switch GES-2108 MGS0000022343

GES-2108 8-Port Gigabit Hilbert Smart Lite Switch
Model number GES-2108
SKU 52091203101
8 Gigabit Ethernet ports
1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto MDI/MDIX
Supports address auto-learning and auto-aging MAC 4K
9K jumbo frames to increase data transfer speeds
IP multicast filtering via IGMP Snooping V1/V2
802.1Q tag-based VLAN enables network segmentation for improved performance and security
IEEE 802.1p QoS with 4 priority queues
Supports unknown unicast/broadcast/multicast storm control
Minimize your carbon footprint with advanced energy-efficient technology (IEEE 802.3az)
4KV surge protection, 6KV contact/air ESD protection 8KV
Smart web-based management
Supports the LevelOne IP Locator for easier IP management.

The LevelOne Gigabit Smart Lite Hilbert GES-2108 switch is a next-generation Ethernet switch offering powerful, enhanced functionality and usability, providing businesses with cost-effective solutions
and transports Ethernet services over copper connections. The GES-2108 offers 8 (10M/100M/1G) RJ45 ports. It can be combined with LevelOne’s latest IP locator; the software is the easiest-to-use switch discovery tool for
discovering switches; it can search for all switches in the Hilbert series and instantly find a forgotten IP address and other information. Compatible with major
Windows and Mac operating systems.

The LevelOne GES-2108 provides high hardware performance and environmental flexibility for businesses. The GES-2108 is ideal for delivering simple management, an optimal user experience and lower costs
of ownership.
general
black
EAN 4015867229248
Model number GES-2108
Characteristic
Switching functions L2
IGMP Snooping
Link aggregation (supports static link aggregation)
Port mirroring
Cable test

VLAN
Supports up to 32 VLANs (of 4K VLAN IDs)
MTU/Port /VLAN 802.1Q

Quality of Service (QoS)
Port/802.1p/DSCP-based priority support
Supports 4 priority queues
Rate limit
Storm Control
Management Web-based graphical user interface (GUI)
Supports the LevelOne IP Locator for easier IP management.
Miscellaneous
Gigabit Ethernet data rate
PoE compatible No
Concurrent ports Total 8,00
Fanless Yes
Manageable Yes
Series HILBERT Series
Commercial grade
Non-disclosure
Integrated system SoC
Others
Approval and Compliance CE
UNITED KINGDOM
FCC Part 15, Subpart B Class B
RoHS
Operating humidity 10% RH ~ 90% RH
Operating temperature 0°C ~ 45°C
Storage humidity 5% RH ~ 95% RH
Storage temperature -40°C ~ 70°C
PACKAGE CONTENT GES-2108
Power adapter
Quick installation guide
Declaration of Conformity
performance
Switching Capacity 16 Gbps
Physical Specifications
Dimensions (W x D x H) 160 x 95 x 29 mm
Product weight (kg) 0.35 kg
System specifications
Acoustic noise (dB) 0 dB (A)
Backplane (Gbps) 16
Flash memory size 2 MB
Packet Forwarding Rate 11.904 Mpps
Heat dissipation 20.4 (Btu/H)
Power, link/activity indicators
Jumbo frame (KB) 9 K
Address Table MAC 4K
Mounting Desktop mounting
MTBF 43,800 hours
1.5 Mbit packet buffer
Port configuration 8 x 10/100/1000 Mbps RJ-45 copper ports
Power consumption 6W
Power supply 12 VCC, 1 A.
Standards IEEE 802.3 10-BASE-T (Ethernet)
IEEE 802.3u 100-BASE-TX (Fast Ethernet)
IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
IEEE 802.3x flow control (full-duplex flow control)
IEEE 802.3az: Energy Efficient Ethernet
Volume (m ³): 0.0023
