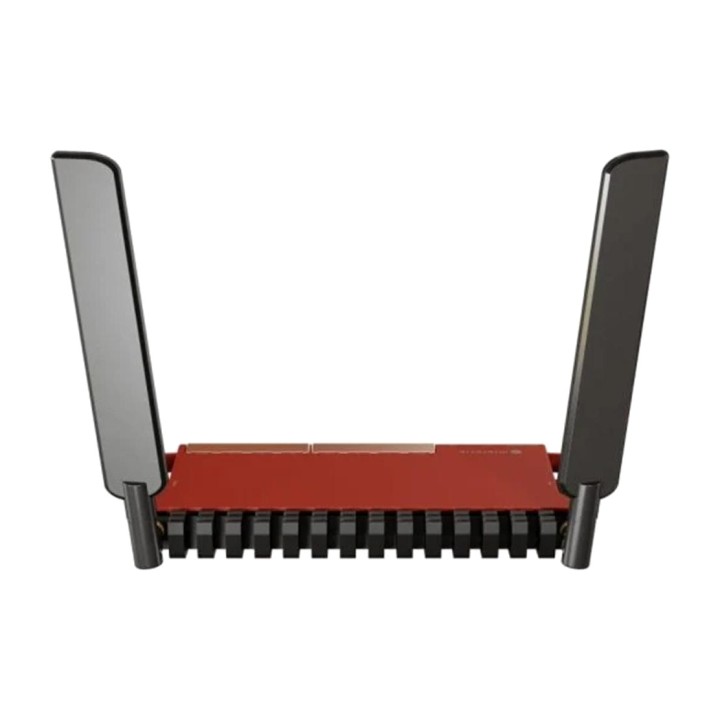

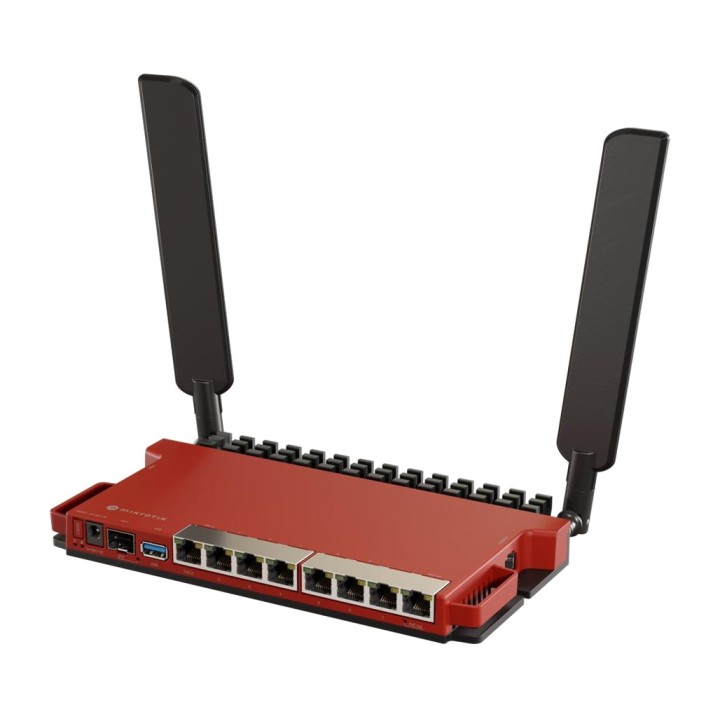

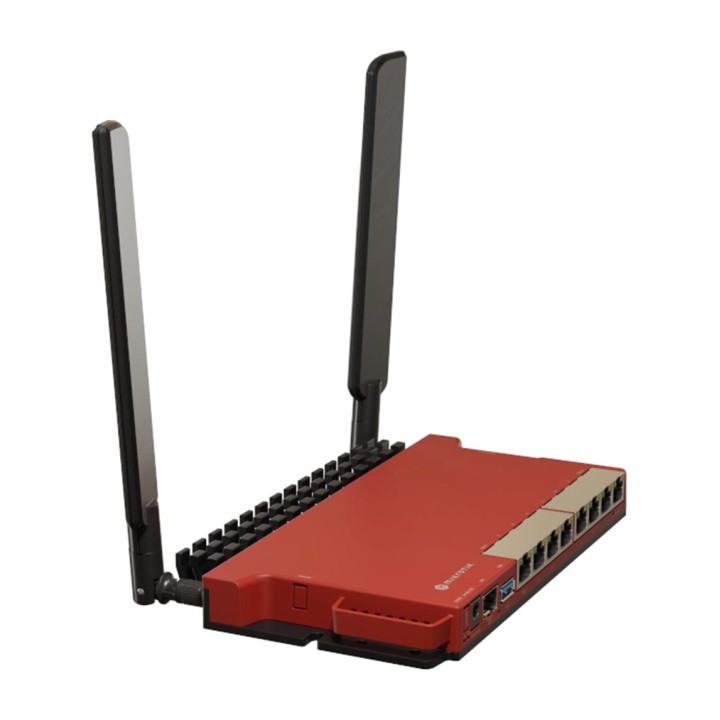

MIKROTIK WiFi 6 router with 8 Gigabit ports and SFP L009UIGS-2HAXD-IN AX600 MGS0000022138

L009UiGS-2HaxD-IN

The L009 line is the replacement for the renowned RB2011 series, retaining the red color combination aesthetic but with the form factor of the 5009 range and an attractive price.

There are three main reasons to choose the L009: better performance, more features, and some interesting quality-of-life improvements. The L009 features a powerful dual-core ARM CPU. It offers a
significant improvement when it comes to routing and filtering, complex firewall rules, IPsec hardware encryption, and various advanced RouterOS features. The ARM CPU architecture provides
significant advantages over older MIPS-based devices, such as using all the latest Linux kernel features or implementing your own container projects. The combination
of a modern ARM CPU and a full-size USB port is perfect for running custom container projects. You could run a Pi-hole ad blocker on this router, for example. Or
you could
Use the USB to add an LTE modem of your choice. Imagination is the only real limit here.

The L009 is up to 4 times faster than the RB2011 in most cases and configurations, from simple fast-path routing to complex bridge filters.

All ports are now Gigabit Ethernet ports. There is PoE-in on the first port. You can use it instead of the DC jack to power the unit. And there is PoE-Out on the last port, to power
Others
devices. Another useful addition is an SFP socket that supports Gigabit and 2.5 Gigabit connectivity. We tested various MikroTik SFP modules and cables that support higher speeds; the 2.5G capability
It makes life much easier for system administrators, as it has a console port for quick, direct-access configuration.

At the heart of it all is a fast Marvell Peridot Switchchip that provides an impressive 2.5 Gigabit full-duplex connection to the CPU for all ports except Ether1. The first port has its own
Gigabit full-duplex line to the CPU. This means endless configurations without bottlenecks!

Wireless connectivity is now much more powerful. Generation 6, or the wireless ax standard, offers up to 90% more speed in the 2.4 GHz spectrum. Not to mention the overall signal stability
of the signal. It can handle more clients with better responsiveness.

The new enclosure is a spectacular innovation in its own right. It has the same form factor as the highly sought-after RB5009 devices you may have seen. It has several extremely
useful features. First, the enclosure acts as a huge heat sink, protecting your configurations from overheating. But here’s the fun part: with a simple set of accessories,
you can fit up to four of these routers in a single rack-mount space 1U.
specs
DETAILS
Product code L009UiGS-2HaxD-IN
64-bit ARM architecture
PROCESSOR IPQ-5018
Number of cores of CPU 2
CPU nominal frequency 800 MHz
Switch chip model 88E6190
Router license OS 5
RouterOS v7 operating system
Size of RAM 512 MB
Storage capacity 128 MB
NAND storage type
Tested ambient temperature -40C to 70C

Wireless capabilities
DETAILS
Maximum 2.4 GHz wireless data rate 574 Mbit/s
2.4 GHz wireless number of chains 2
2.4 GHz wireless standards 802.11b/g/n/ax
2.4 GHz antenna gain 4 dBi
2.4 GHz wireless chip model IPQ-5018
2.4 GHz wireless generation Wi-Fi 6
WiFi speed AX600

Ethernet
DETAILS
Ethernet ports 10/100/1000 8
Number of 1G Ethernet ports with Po output E 1

Fibre
DETAILS
SFP ports 1 (compatible with 2,5G)

Peripherals
DETAILS
Serial console port RJ45
Number of ports USB 1
USB power reset Yes
USB slot type USB 3.0 Type A
Maximum USB current (A) 1,5

Feeding
DETAILS
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input voltage 24-56 V
Maximum power consumption 45 W
Maximum power consumption without accessories 12 W
Cooling type Passive
PoE in 802.3af/at
PoE input voltage 24-56 V

PoE output
DETAILS
PoE output ports Ether8
PoE output passive PoE
Maximum output per output port (input 18-30 V) 1 A
Maximum output per output port (input 30-57 V) 450 mA
Maximum total output (A) 1,0 A

Certifications and approvals
DETAILS
CE, FCC, IC, EAC, ROHS certification
IP 20

Other
DETAILS
Mode button Yes

PARTS INCLUDED

Power adapter of 24V 1,5A
HGO indoor antenna kit
Mounting kit K-52
Volume (m ³): 0.0020
