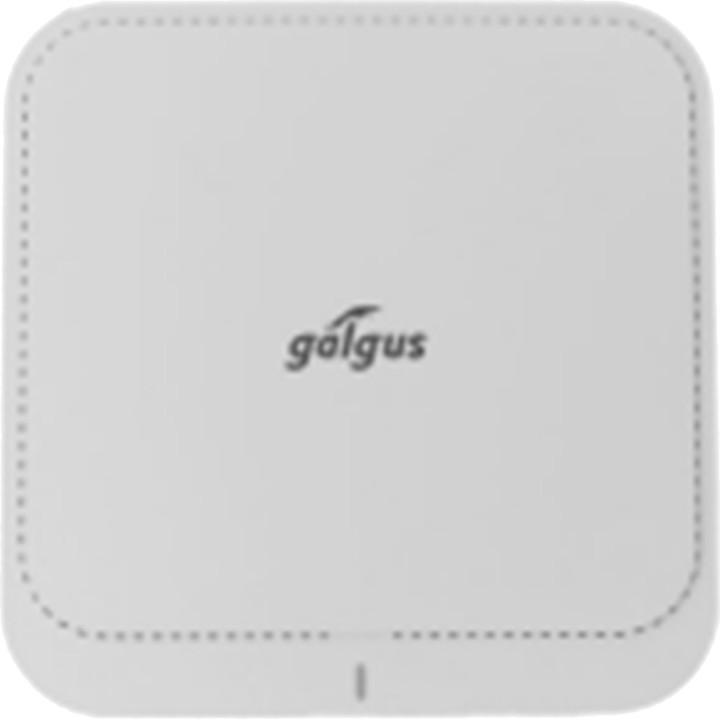

GALGUS Indoor Wi-Fi 6 access point G-AP-IX850 802.11AX 4X4 MGS0000014978

Wi-Fi features
IEEE 802.11a/b/g/n/ac/ax standard
Frequency bands
2.4 GHz (802.11 b/g/n/ax):
2.4 GHz ~ 2.484 GHz
5 GHz (802.1a/n/ac/ax):
5.150 GHz ~ 5.850 GHz
MIMO
4x4 MU-MIMO (2.4 GHz)
4x4 MU-MIMO (5 GHz)
Spatial streams
2.4 GHz: 4
5 GHz: 4
Channel width
20, 40, 80, 160 MHz
Modulation
DL/UL-OFDMA = BPSK,QPSK,
16-QAM, 64-QAM, 128QAM,
256QAM and 1024QAM, and
DSSS = DBPSK, DQPSK, CCK
Wi-Fi features
IEEE 802.11h (DFS)
Tx Beamforming
LDPC, STBC
MSS clamping
IEEE 802.11r/k/v
Power saving (Power save)
WISPr
IP/URL/MAC filtering
Capacity and performance
PHY Capacity
PHY capacity: 5950 Mbps
(1150 Mbps on 2.4 GHz and 4800 Mbps on 5 GHZ)
Multi SSID Up to 24 (12 on 2.4 GHz and 12 on 5 GHz)
Clients/AP Up to 512
Networking
IP
IPv4 & IPv6
DHCP Client/Server
Static IP / Dynamic IP
GRID
IEEE 802.1s
IEEE 802.1d
VLAN tagging (802.1Q)
Supports LACP, LLDP
VLAN
Dynamic VLANs
Port forwarding
VLAN-based segmentation
SSID-based VLAN tagging
Mesh
802.11s.
Up to 2 mesh hops
Dynamic re-routing
Robust against DFS events
VxLAN, IPsec routing protocols , GRE, L2TP
Advanced features (CHT®)
SECURITY
- WPA/WPA2/WPA3 Personal & Enterprise
- RADIUS support with dynamic VLANs
- Support for captive portal and social login
- IEEE 802.1x
- Supports ACLs
- LDAP integration
- Isolated SSIDs
- URL filters
- Firewall
- SSL / TLS / SSH
- Secure communication between APs
- WIDS & WIPS
- Location and tracking of hackers (Rogue AP
or Evil twin)
- Protects against DDoS attacks
Network optimization
- Distributed intelligence without the need for a central controller
- Smart Roaming 802.11r (seamless handoff)
- Automatic channel and bandwidth assignment
- Proactive load balancing (real-time resource distribution)
- Pre-balancing
- Traffic control
- Automatic power control
- Smart multicast
- Airtime fairness
- Robust and intelligent mesh
- Dynamic probe management for high-density scenarios
Certifications and regulatory information
WiFi Alliance
Connectivity
2.4 GHz & 5 GHz spectrum capabilities
WiFi certified 802.11a/b/g/n/ac/ax (WiFi 6 Release 2)
Passpoint® R2 access (Hotspot 2.0)
WMM® optimization
SECURITY
WPA/WPA2/WPA3 personal & enterprise
Protected Management Frames
Standards
CE Mark (EN 60950-1, EN 62479, EN300328, EN 300440, EN 301489)
RED directive 2014/53/EU
FCC
Environmental ROHS
Antenna
Internal omnidirectional
3dBi gain

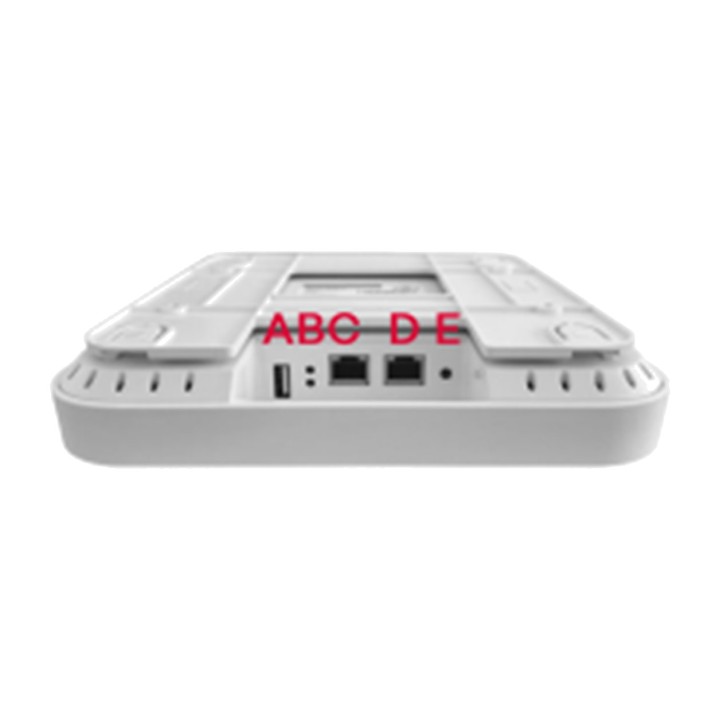

Interfaces
A. USB 3.0
B. LED indicators
C. RJ45 WAN port
10/100/1000/2500 Mbps
D. RJ45 LAN port
10/100/1000/2500 Mbps
E. Reset button
Bluetooth
PoE power supply: 48V IEEE 802.3at
Typical power consumption
48V Po E 30 W
Supports IEEE 802.3az
Dimensions 198 x 198 x 41 mm
Weight 750 g.
Temperature
Operation : -20°C - 55°C
(-4°F - 131°F)
STORAGE : -20°C -70°C
(-4°F - 158°F)
Humidity
Operation: 5% - 95% (non-condensing)
Storage: 5% - 95% (non-condensing)
Volume (m ³): 0.0048
