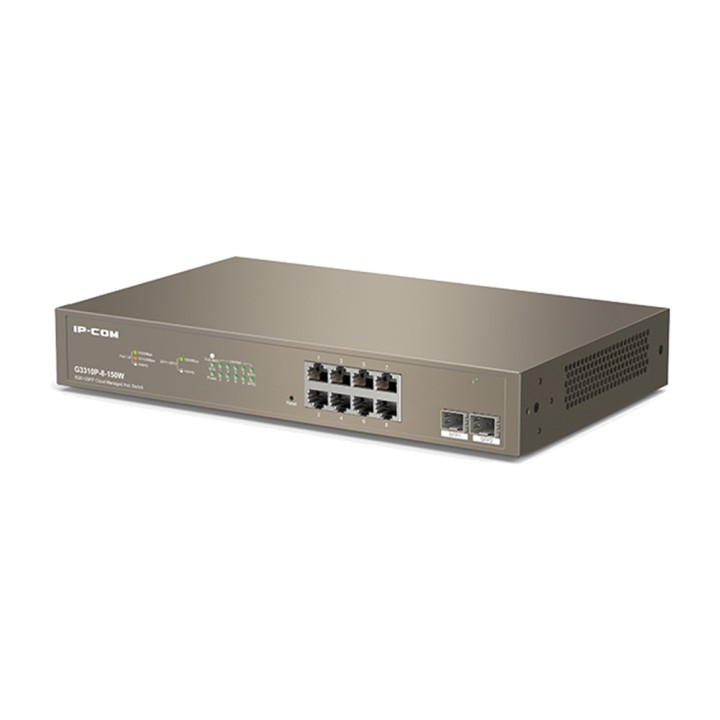

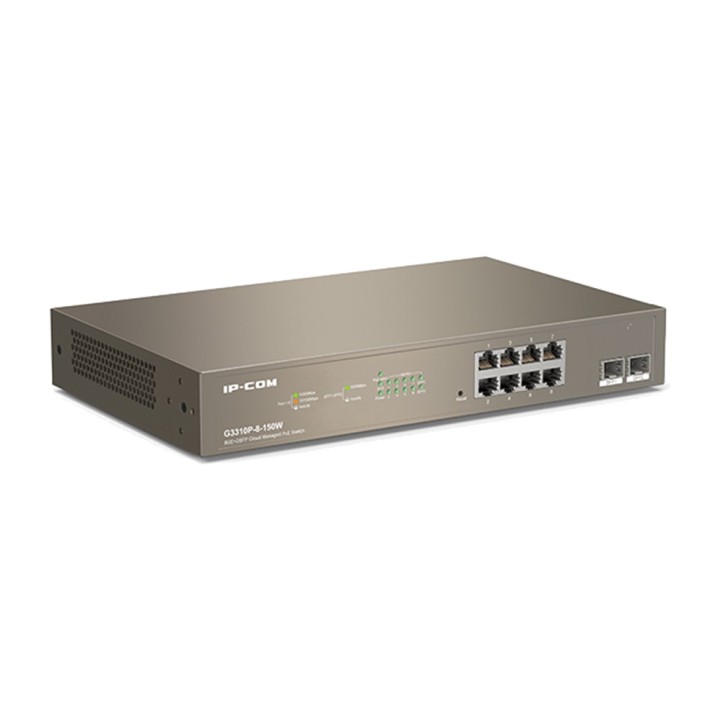

IP-COM 8-port Gigabit cloud-managed PoE switch and 2 SFP G3310P 150W MGS0000013918

Features of the IP-COM G3310P-8-150W
The IP-COM G3310P-8-150W is an 8GE+2SFP cloud-managed PoE switch designed for professional networks that need to connect, power and manage devices such as access points, IP cameras or network equipment from a centralised platform. With 8 Gigabit PoE ports, 2 SFP ports, total PoE power of up to 130 W and advanced features such as VLAN, link aggregation, QoS and IMS cloud management, it offers a complete solution for business installations, video surveillance and high-performance networks.
Gigabit connectivity with PoE ports and SFP links
This switch features 8 10/100/1000 Base-T Gigabit Ethernet ports for data transmission and PoE power, together with 2 100/1000 Base-X SFP ports for fibre links or more flexible uplinks. This combination enables more scalable network deployments, connecting end devices and backbone links from a single unit.

8 10/100/1000 Base-T Ethernet ports for data and power
2 100/1000 Base-X SFP ports
Compatible with Gigabit connections for professional networks
Designed for use with APs, IP cameras and other PoE devices

High-capacity PoE power supply
The G3310P-8-150W supports the IEEE 802.3af/at standards, allowing PoE devices to be powered directly through ports 1 to 8. With a maximum power of 30 W per port and total PoE output of 130 W, it enables clean, efficient installations and reduces the need for separate power supplies.

PoE ports 1 to 8 compatible with IEEE 802.3af/at
Maximum power per PoE port E: 30 W
Maximum total PoE output power : 130 W
Total switch power consumption: < ,150 W
PoE pin assignment: pins 1, 2, 4, 5 positive and pins 3, 6, 7, 8 negative

Intelligent PoE management
The switch offers advanced management of the PoE power supply, allowing ports to be configured, power priorities to be set and the status of connected devices to be monitored. This feature is particularly useful in security networks or installations with multiple IP cameras, where service continuity is essential.

Per-port PoE configuration
PoE power priority configuration
PoE overtemperature protection
Intelligent graphical management
PoE-powered device detection
Display of port status, power allocation and PoE device status

Stable performance and non-blocking forwarding
With its 20 Gbps switching capacity and a forwarding rate of 14,9 Mpps, the G3310P-8-150W is ready to handle Gigabit traffic reliably. Its store-and-forward mode contributes to reliable transmission, while non-blocking wire-speed forwarding allows all ports to be used efficiently.

Switching capacity: 20 Gbps
Packet forwarding rate: 14,9 Mpps
Non-blocking wire-speed forwarding
Forwarding mode: store-and-forward
MAC address table: 8K
MAC address learning

Advanced network features
This model includes professional management features to segment, optimise and protect the network. Support for IEEE 802.1Q VLAN, port aggregation, QoS and MAC address binding allows the switch to be adapted to networks requiring greater traffic control and prioritisation.

IEEE 802.1Q VLAN supported
MAC address binding
Static port aggregation
Dynamic port aggregation
QoS with FIFO, SP and WP
Full-duplex flow control IEEE 802.3x
Half-duplex backpressure flow control

RSTP support and port mirroring
The G3310P-8-150W supports IEEE 802.1w RSTP, helping improve network resilience to topology changes. In addition, the port mirroring function facilitates monitoring and diagnostics, allowing network traffic to be analyzed more accurately.

Compatible with IEEE 802.1w RSTP
Rapid Spanning Tree Protocol
Port mirroring N:1
Functions for network diagnostics and monitoring

IMS cloud management
IMS cloud management allows the switch to be managed remotely, configurations to be applied from the platform, and maintenance tasks to be performed without on-site intervention. This capability facilitates the control of distributed networks and reduces maintenance complexity in professional installations.

Configuration delivery from the IMS cloud platform
Log reports
Fault detection
Remote maintenance
Remote reboot
Remote backup
Remote update

Local display management
In addition to cloud management, this switch supports local visual management, allowing connected devices to be discovered and the network topology to be generated automatically. This feature is very useful for quickly identifying routers, switches, access points and IP cameras within the installation.

Discovery of routers, switches, APs and IP cameras
Automatic topology generation
Online and offline status detection
Remote reboot of IP cameras

Update, configuration and maintenance
The device provides tools for updating and managing configurations, facilitating device maintenance in business environments. Configuration import and export make it possible to replicate settings or keep backup copies of the switch configuration.

HTTP update supported
Configuration import
Configuration export
Remote maintenance functions from the cloud

Professional design and electrical protection
With dimensions of 294 x 179.6 x 44 mm, the G3310P-8-150W has a form factor suitable for professional installations. It also features 6 kV lightning protection on the ports, providing greater safety and reliability in environments at risk of overvoltage.

Dimensions: 294 x 179.6 x 44 mm
Port lightning protection: 6 kV

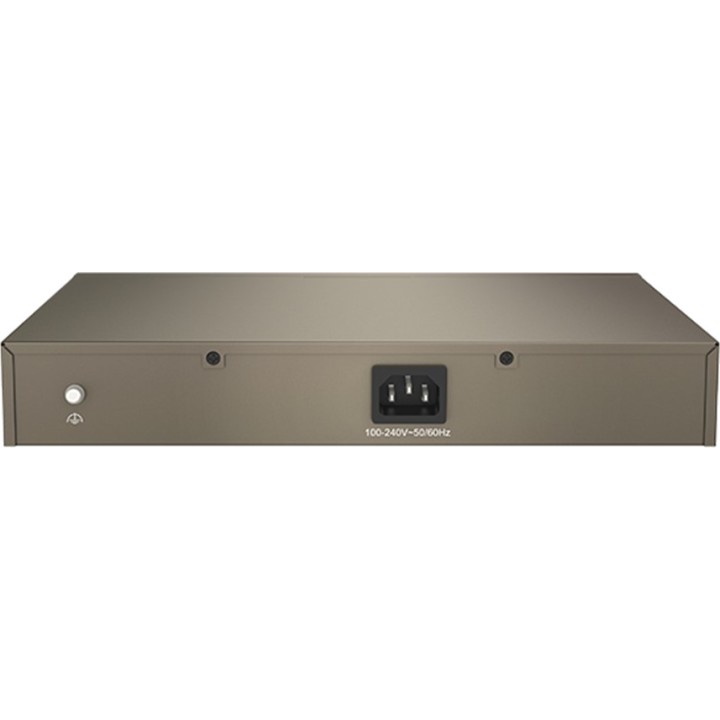

Input voltage: 100-240 V, 50/60 Hz

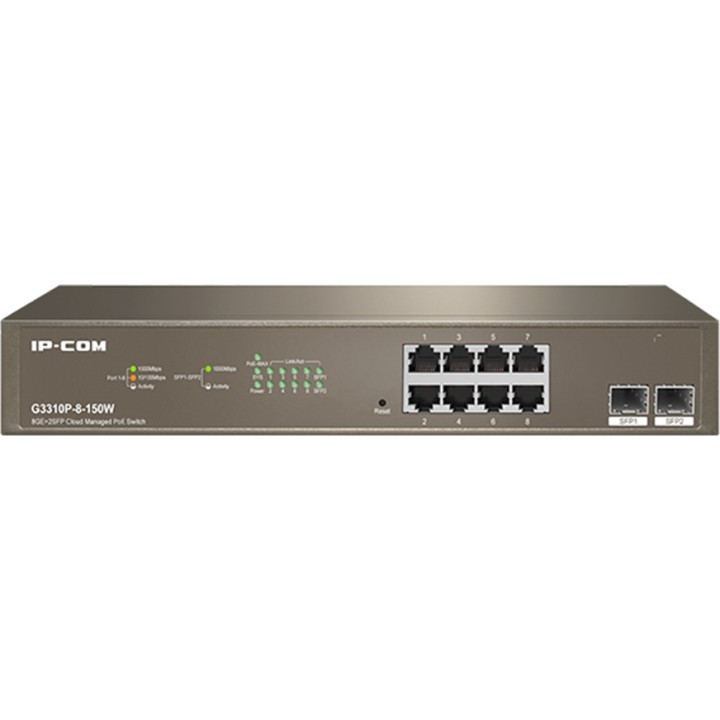

Link/Ack LED indicator for each port
PoE Max LED indicator for the device
Power LED indicator
SYS LED indicator

Other technical specifications

MODEL: G3310P-8-150W
Product type: cloud-managed PoE switch 8GE+2SFP
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.3af, IEEE 802.3at
Interfaces: 8 10/100/1000 Base-T Ethernet ports and 2 100/1000 Base-X SFP ports
MAC address table: 8K
Switching capacity: 20 Gbps
Forwarding rate: 14.9 Mpps
Operating temperature : 0 °C - 45 °C
Storage temperature : -40 °C - 70 °C
Operating humidity: 10% - 90% RH, non-condensing
Storage humidity: 5% - 90% RH, non-condensing
Volume (m ³): 0.0099
