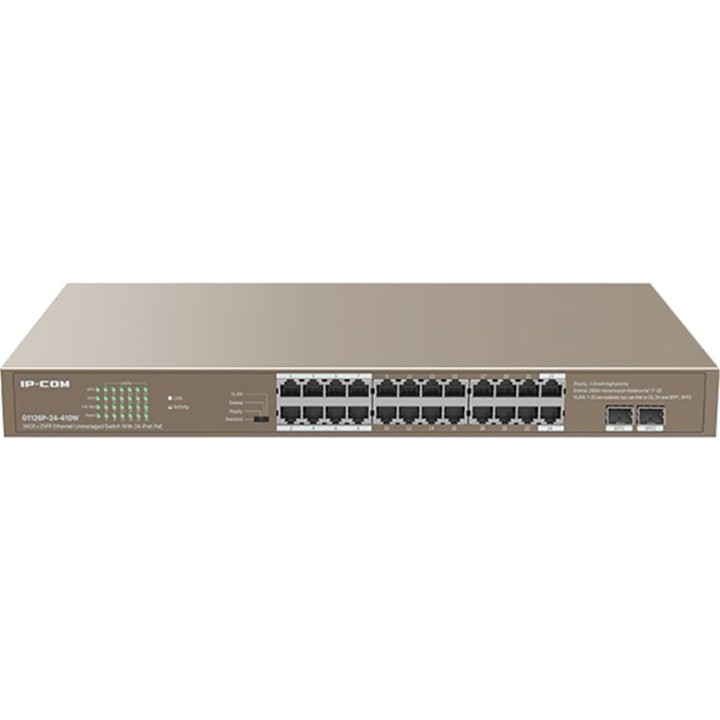

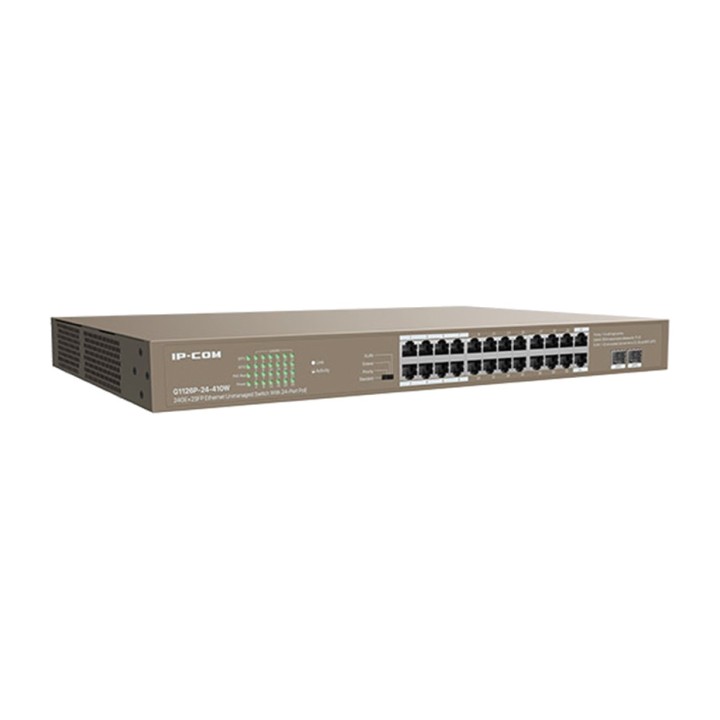

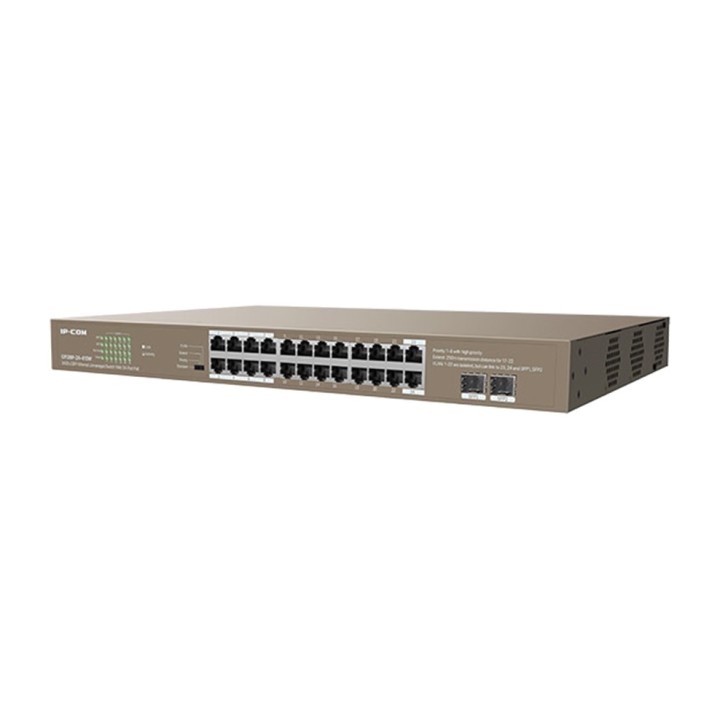

IP-COM 24-port unmanaged Gigabit PoE switch and 2 SFP G1126P 410W MGS0000013914

Features of the IP-COM G1126P-24-410W
The IP-COM G1126P-24-410W is a 24-port unmanaged 24GE+2SFP PoE Ethernet switch, designed for professional installations that need to connect and power a large number of network devices from a single unit. With 24 Gigabit PoE ports, 2 Gigabit SFP slots, a total PoE power budget of up to 370 W and a rack-mount format, it is suitable for video surveillance networks, offices, educational institutions, retail outlets, and small or medium-sized businesses.
24 Gigabit PoE ports for data and power
This switch features 24 100/1000 Mbps Base-T RJ45 ports that can transmit data and supply PoE power to compatible devices over the same network cable. This makes it easier to install IP cameras, access points, IP phones and other PoE devices, reducing the need for separate power supplies.

24 100/1000 Mbps Base-T RJ45 ports for data and power
PoE ports 1 to 24, compatible with IEEE 802.3af/at
Maximum power per PoE port E: 30 W
Total PoE power : 370 W
Maximum power consumption of the entire device : 410 W

2 Gigabit SFP slots for uplinks
The G1126P-24-410W has 2 1000 Mbps Base-X SFP ports, designed for uplinks over fibre or backbone connections in professional networks. This connectivity allows the switch to be integrated into larger installations and facilitates connections between communications cabinets or network equipment.

2 1000 Mbps Base-X SFP slots
Compatible with Gigabit uplinks
Suitable for backbone connections or fibre links
Greater flexibility in professional network deployments

High performance with a switching capacity of 48 Gbps
With a backplane bandwidth of 48 Gbps and a packet forwarding rate of 35,7 Mpps, this switch is designed to handle traffic from multiple devices connected simultaneously. Its store-and-forward mode contributes to stable and reliable transmission in Gigabit networks.

Switching capacity: 48 Gbps
Packet forwarding rate: 35.7 Mpps
Forwarding mode: store-and-forward
Efficient forwarding on all ports
Shock absorber: 2M

8K MAC table and automatic learning
The switch integrates an 8K MAC address table with auto-learning, allowing it to automatically identify and manage devices connected to the network. This feature improves traffic efficiency and helps maintain organised communication in installations with numerous devices.

MAC address table: 8K
MAC address auto-learning
Full-duplex flow control supported by IEEE 802.3x
Half-duplex backpressure flow control

4 operating modes for different scenarios
The IP-COM G1126P-24-410W includes four operating modes that allow the switch behaviour to be adapted to the installation requirements. These modes facilitate the configuration of uplinks, traffic prioritisation, extended cabling distance and port isolation to improve network stability.

Standard Mode: the switch’s default mode. It operates as an unmanaged switch, and all ports can communicate with one another
Priority Mode: ports 23, 24, SFP1 and SFP2 operate as uplink ports, while ports 1 to 8 act as high-priority ports
Extend Mode: the data rate of ports 17 to 22 is reduced to 10 Mbps, and the maximum transmission distance can reach 250 metres
VLAN Mode: ports 1 to 22 can communicate with ports 23, 24, SFP1 and SFP2, but not with one another

VLAN mode to reduce broadcast storms
VLAN mode allows access ports to be isolated to improve network stability. When enabled, ports 1 to 22 are isolated from one another but can still communicate with the uplink ports. This feature helps reduce broadcast storms and isolate DHCP broadcasts in installations with many connected devices.

Isolation between ports 1 to 22
Communication with ports 23, 24, SFP1 and SFP2
Helps reduce broadcast storms
Allows DHCP transmissions to be isolated

Compatible with Ethernet and PoE standards
This model complies with the main Ethernet and PoE standards, ensuring compatibility with a wide variety of network devices. Its support for IEEE 802.3af/at allows standard PoE equipment to be reliably powered through the RJ45 ports.

COMPATIBLE WITH IEEE 802.3
Compatible with IEEE 802.3u
Compatible with IEEE 802.3ab
Compatible with IEEE 802.3z
COMPATIBLE WITH IEEE 802.3x
Compatible with IEEE 802.3af/at

Electrical protection and stable operation
The G1126P-24-410W features 6 kV lightning protection, providing greater protection against surges in professional environments. It is also designed to operate within standard temperature and humidity ranges, supporting stable operation in communications cabinets and indoor installations.

Lightning protection: 6 kV
Operating temperature: 0 °C to 45 °C
Storage temperature: -40 °C to 70 °C
Operating humidity: 10% to 90% non-condensing
Storage humidity: 5% to 90% non-condensing

Rack-mount design
With dimensions of 440 x 284 x 44 mm, this switch is designed for rack mounting, making it easy to install in racks and communications cabinets. Its professional form factor helps keep network infrastructure organised, accessible and ready for environments with a large number of connections.

Rack mounting
Dimensions: 440 x 284 x 44 mm
Suitable format for communications cabinets
Input voltage: AC 100-240 V, 50/60 Hz

Other technical specifications

MODEL: G1126P-24-410W
Product type: 24-port unmanaged 24GE+2SFP Ethernet switch with PoE
Interfaces: 24 100/1000 Mbps Base-T RJ45 ports for data/power
SFP interfaces: 2 1000 Mbps Base-X SFP ports
Switching capacity: 48 Gbps
Packet forwarding rate: 35.7 Mpps
Shock absorber: 2M
MAC address table: 8K
PoE ports: 1-24 compatible with IEEE 802.3af/at
Maximum power per PoE port E: 30 W
Total PoE power : 370 W
Power consumption of the entire device : 410 W
Input voltage: AC 100-240 V, 50/60 Hz
Certifications: FCC, CE, RoHS
Volume (m ³): 0.0200
