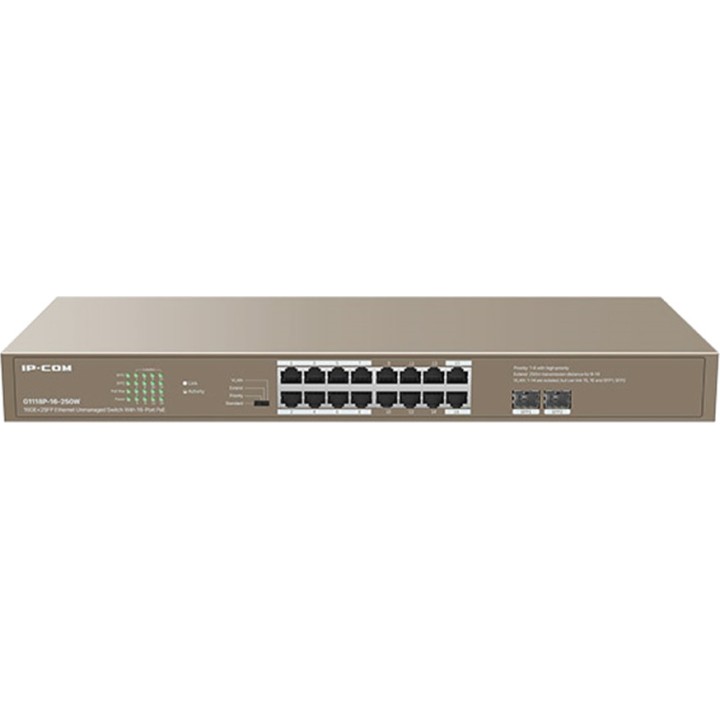

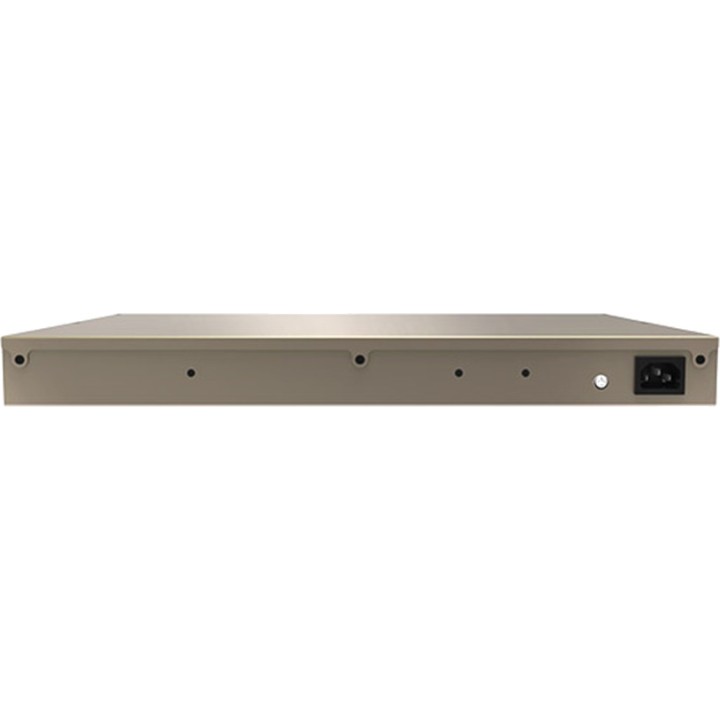

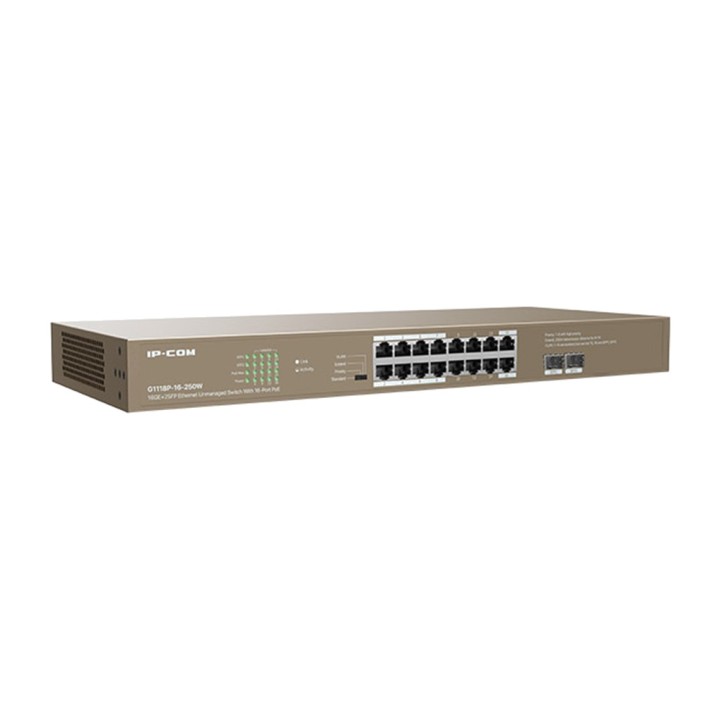

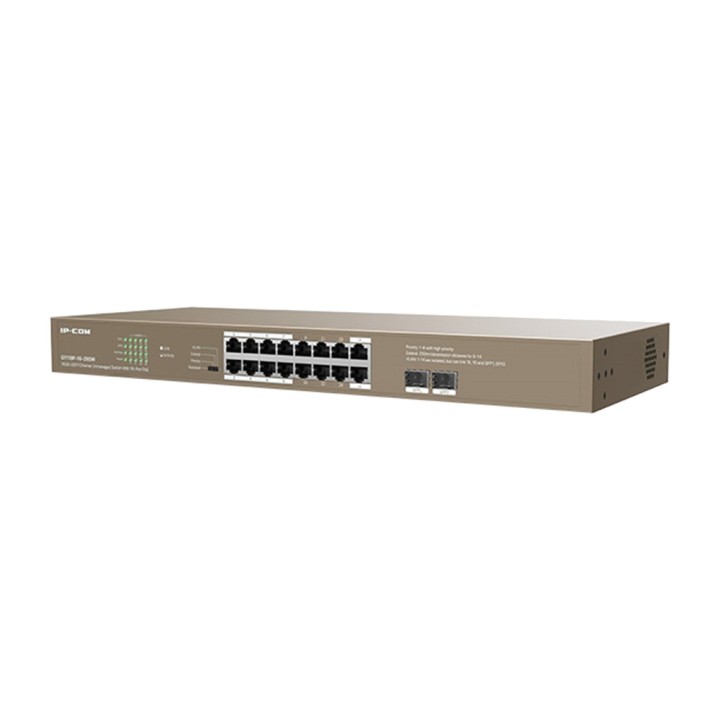

IP-COM Unmanaged 16-port Gigabit PoE switch and 2 SFP G1118P 250W MGS0000013910

Features of the IP-COM G1118P-16-250W
The IP-COM G1118P-16-250W is an unmanaged 16GE+2SFP Ethernet switch with 16 PoE ports, designed for professional installations that need to connect and power multiple network devices from a single unit. With 16 Gigabit PoE ports, 2 Gigabit SFP slots, total PoE power of up to 230 W and rack-mount capability, it is a suitable solution for video surveillance networks, offices, retail stores, educational institutions, and small and medium-sized businesses.
16 Gigabit PoE ports for data and power
This switch features 16 100/1000 Mbps Base-T RJ45 ports capable of transmitting data and supplying PoE power to compatible devices. This makes it possible to connect IP cameras, access points, IP phones, and other PoE equipment, reducing the need for separate power supplies and simplifying installation cabling.

16 100/1000 Mbps Base-T RJ45 ports for data and power
PoE ports 1 to 16 compatible with IEEE 802.3af/at
Maximum power per PoE port E: 30 W
Total PoE power : 230 W
Maximum device power consumption : 250 W

2 Gigabit SFP slots for fibre links
The G1118P-16-250W includes 2 1000 Mbps Base-X SFP ports, designed for fibre uplinks or more flexible backbone connections. This feature allows the switch to be integrated into larger networks, facilitating long-distance connections or links between communications cabinets.

2 1000 Mbps Base-X SFP slots
Compatible with Gigabit uplinks
Greater flexibility for professional networks
Suitable for installations with multiple switches or fibre links

Gigabit performance with 36 Gbps switching capacity
With a backplane bandwidth of 36 Gbps and a packet forwarding rate of 26,8 Mpps, this switch delivers stable performance for networks with multiple devices connected simultaneously. Its store-and-forward mode helps ensure reliable transmission and reduce errors in network traffic.

Switching capacity: 36 Gbps
Packet forwarding rate: 26,8 Mpps
Forwarding mode: store-and-forward
Non-blocking wire-speed forwarding
Shock absorber: 2M

8K MAC table and automatic learning
The switch features an 8K MAC address table with auto-learning, enabling efficient management of devices connected to the network. This capability helps maintain stable, organised communication in environments with multiple devices.

MAC address table: 8K
MAC address auto-learning
Full-duplex flow control supported by IEEE 802.3x
Half-duplex backpressure flow control

4 operating modes for different scenarios
The IP-COM G1118P-16-250W has four operating modes that allow the switch’s behaviour to be adapted to the installation requirements. These modes make it easy to prioritise traffic, extend cabling distance or isolate ports to reduce broadcast storms.

Standard Mode: default mode; the switch operates as an unmanaged switch and all ports can communicate with each other
Priority Mode: ports 15, 16, SFP1 and SFP2 operate as uplinks, while ports 1 to 8 act as high-priority ports
Extender Mode: the speed of ports 9 to 14 is reduced to 10 Mbps and the maximum transmission distance can reach 250 metres
VLAN Mode: ports 1 to 14 communicate with ports 15, 16, SFP1 and SFP2, but not with each other, helping to reduce broadcast storms and isolate DHCP

Compatible with professional network standards
This model complies with the main Ethernet and PoE standards, ensuring compatibility with a wide range of network devices. Its support for IEEE 802.3af/at allows standard PoE equipment to be reliably powered via the Ethernet cable itself.

COMPATIBLE WITH IEEE 802.3
Compatible with IEEE 802.3u
Compatible with IEEE 802.3ab
Compatible with IEEE 802.3z
COMPATIBLE WITH IEEE 802.3x
Compatible with IEEE 802.3af/at

Electrical protection and stable operation
The G1118P-16-250W features 6 kV lightning protection, providing greater protection against surges in professional installations. It is also designed to operate within a temperature and humidity range suitable for indoor network environments.

Lightning protection: 6 kV
Operating temperature: 0 °C to 45 °C
Storage temperature: -40 °C to 70 °C
Operating humidity: 10% to 90% non-condensing
Storage humidity: 5% to 90% non-condensing

Rack-mount design
With dimensions of 440 x 178,8 x 44 mm, this switch is designed for rack mounting, making it easy to install in communications racks. Its design is suitable for environments that require professional organisation of cabling and network equipment.

Rack mounting
Dimensions: 440 x 178,8 x 44 mm
Suitable format for communications cabinets
Input voltage: AC 100-240 V, 50/60 Hz

Other technical specifications

MODEL: G1118P-16-250W
Product type: 16-port unmanaged 16GE+2SFP PoE Ethernet switch
Interfaces: 16 100/1000 Mbps Base-T RJ45 ports for data/power
SFP interfaces: 2 1000 Mbps Base-X SFP ports
Switching capacity: 36 Gbps
Packet forwarding rate: 26,8 Mpps
Shock absorber: 2M
MAC address table: 8K
PoE ports: 1-16, compatible with IEEE 802.3af/at
Maximum power per PoE port E: 30 W
Total PoE power : 230 W
Power consumption of the entire device : 250 W
Input voltage: AC 100-240 V, 50/60 Hz
Certifications: FCC, CE, RoHS
Volume (m ³): 0.0119
