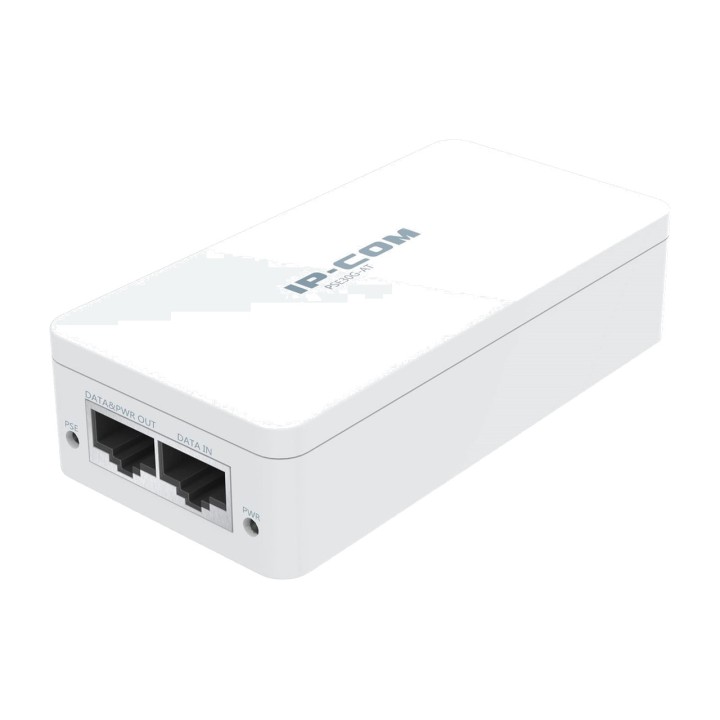

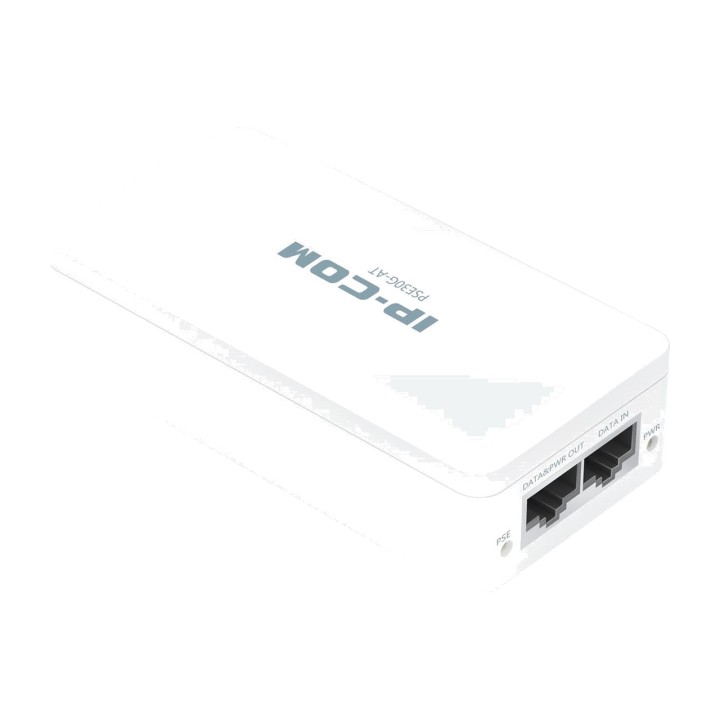

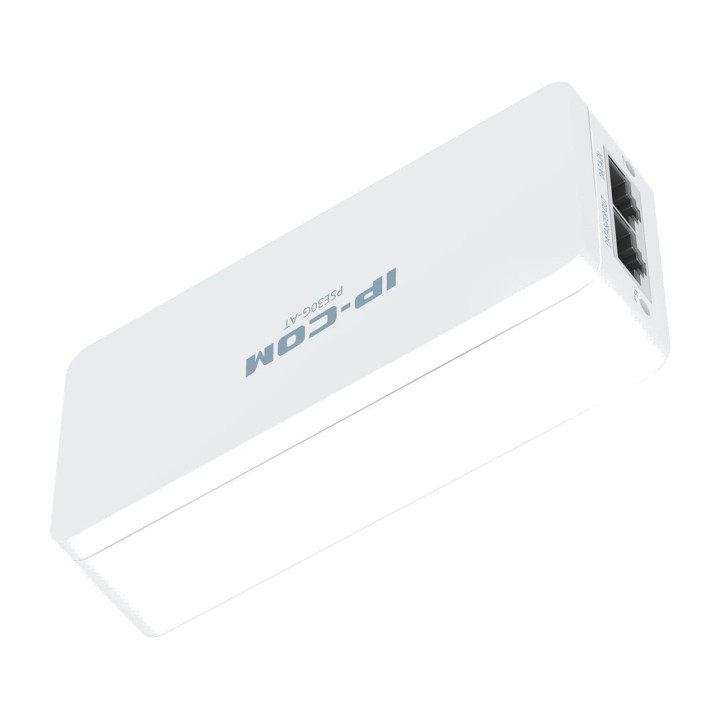

IP-COM Gigabit Power over Ethernet injector PSE30G-AT 30W 100M MGS0000010034

Features of the PoE Injector E PSE30G-AT
The PSE30G-AT PoE injector is designed to provide power and data over a single Ethernet cable, making it easier to install PoE-compatible network devices. Thanks to its plug-and-play operation, it requires no configuration and can power equipment such as wireless access points, Bluetooth devices, IP phones or equipment compatible with the IEEE802.3af/at standards.
PoE power of up to 30 W
The PSE30G-AT offers a maximum output power of 30,6 W, allowing compatible PD devices to be powered directly from the data and power output port. This feature simplifies installation, reduces the need for additional adapters and makes it easier to build tidier networks.

Output power : 30,6 W
Power consumption per port: up to 30 W
Compatible with IEEE802.3af powered devices
Compatible with IEEE802.3at powered devices
Output power can be combined automatically

Compatible with IEEE802.3af/at standards
This PoE injector complies with the IEEE802.3af and IEEE802.3at standards, automatically detecting compatible PD devices to supply the appropriate power. It is also compatible with Gigabit Ethernet standards, enabling stable data transmission on high-speed networks.

COMPATIBLE WITH IEEE802.3
Compatible with IEEE802.3u
Compatible with IEEE802.3ab
Compatible with IEEE802.3af
Compatible with IEEE802.3at
Supported protocols: CSMA/CD, TCP/IP

Two Gigabit ports RJ45
The device features 2 Gigabit RJ45 ports, one for data input and the other for combined data and PoE power output. Both ports support connection speeds of 10/100/1000 Mbps, offering a versatile solution for today's wired networks.

1 GE port
1 data and power output port compatible with PoE
2 Gigabit RJ45 ports
Supported speed: 10/100/1000 Mbps
PoE-compatible Data & Power Out port

Easy Plug and Play installation
The PSE30G-AT features an integrated design and is easy to install. Its plug-and-play operation allows it to be connected directly without any additional configuration, making it suitable for rapid network deployments and reducing installation time.

easy installation
Plug and Play operation
No configuration required
Gigabit Ethernet transmission rate for a wide range of applications
Transmission range: up to 100 m

Automatic overcurrent protection
To improve installation safety, the injector can automatically activate the short-circuit protection function. When it detects excessive current or a power interruption, it cuts off the power supply to help protect connected equipment and prevent network failures caused by installation errors or electrical incidents.

Automatic short-circuit protection
Power cut-off in the event of excessive current
Helps prevent damage to connected equipment
Reduces the risk of network failures caused by power interruptions

Applications in professional networks
This PoE injector is a practical solution for powering network devices that require power over Ethernet. It can be used in installations with wireless equipment, IP phones, Bluetooth devices or systems that require PoE power, helping to simplify cabling, facilitate management and reduce maintenance costs.

Suitable for compatible wireless network devices
Suitable for compatible Bluetooth devices
Suitable for PoE-compatible IP phones
Can be combined with Ethernet/power splitters
Makes network management and monitoring easier

Flame-retardant housing 94V0
The PSE30G-AT features a housing with a 94V0 flame-retardancy rating, designed to provide greater safety in network installations. Its compact format makes it easy to place in confined spaces alongside other communications equipment.

Housing flame-retardancy rating: 94V0
compact design
Dimensions: 131 mm x 60 mm x 33 mm

LED Indicators
The injector has LED indicators for visually checking the device and PoE power status. This makes basic monitoring easier during installation and routine maintenance.

PWR indicator
PoE indicator

Operating environmental conditions
The device is designed to operate under typical indoor installation conditions, with temperature and humidity ranges suitable for home or professional network environments.

Operating temperature : 0 °C ~ 40 °C
Storage temperature : -40 °C ~ 70 °C
Operating relative humidity: 10 % ~ 90 % non-condensing
Storage relative humidity: 5 % ~ 90 % non-condensing

Other specifications

MODEL: PSE30G-AT
Product type: Gigabit PoE injector
Output port compatible with data and PoE power
Compatible with IEEE802.3af/at PD devices
Maximum transmission range: 100 m
Integrated design for easy installation
Volume (m ³): 0.0019
