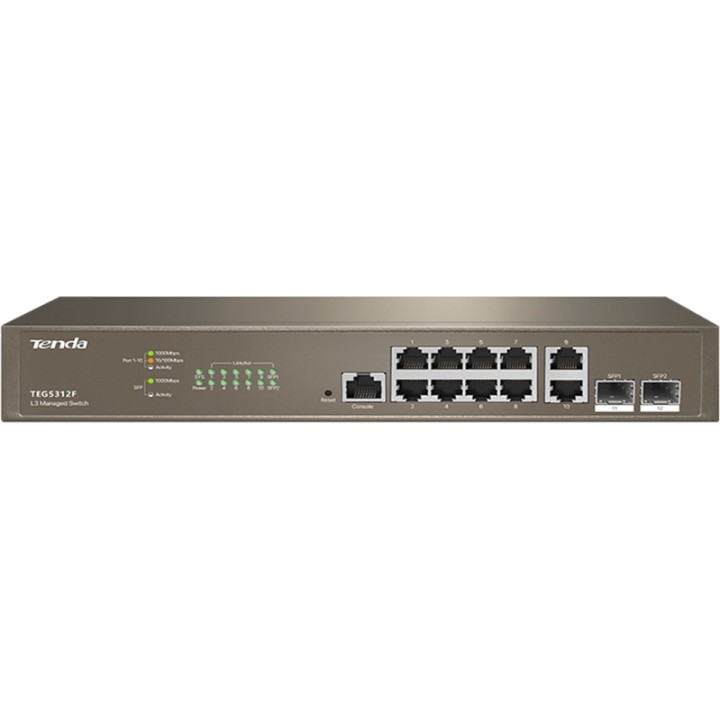

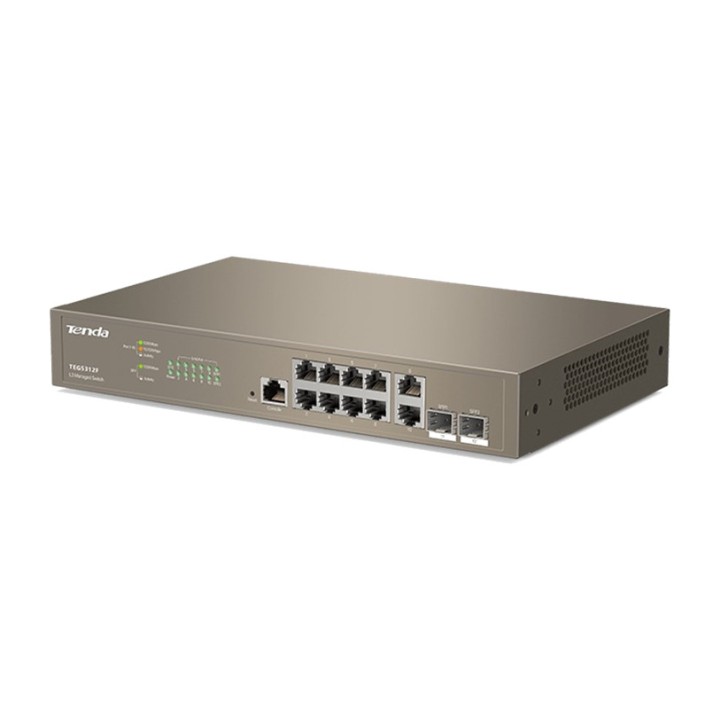

IP-COM Layer 3 managed switch with 10 Gigabit ports and 2 SFP G5312F MGS0000009696

Features of the Gigabit Managed Switch L3 10GE+2SFP
This Gigabit managed switch with L3 features is designed for professional networks that require greater control, segmentation and performance than a basic switch. With 10 Gigabit Ethernet ports, 2 SFP ports, VLAN support, IPv4 static routing, link aggregation, QoS, ACL and advanced management, it is a suitable solution for offices, small businesses, technical installations and environments requiring a stable, secure and flexible network.
Gigabit connectivity with RJ45 and SFP ports
The device features 10 10/100/1000 Base-T Ethernet ports for high-speed wired connections, along with 2 1000 Base-X SFP ports for fibre links or trunk connections. This combination allows local devices to be connected while also integrating the switch into distribution networks with greater flexibility.

10 10/100/1000 Base-T Ethernet ports
2 1000 Base-X SFP ports
Recommended transmission medium: CAT5 / 5e UTP cable or higher
Designed for Gigabit connections in professional networks

Stable performance for intensive traffic
With a switching capacity of 24 Gbps and a forwarding rate of 17,90 Mpps, this switch is ready to handle network traffic smoothly. Its store-and-forward mode, together with the 12 MB buffer, helps maintain stable transmission even in environments with several connected devices.

Switching capacity: 24 Gbps
Packet forwarding rate: 17,90 Mpps
Forwarding mode: store-and-forward
Buffer : 12 MB
MAC address table: 16K
Jumbo frame: 10K

L3 features for more flexible networks
This model includes Layer 3 features, enabling it to handle more advanced network scenarios. Support for VLAN-based routing and IPv4 static routes facilitates communication between network segments, improving traffic organization and control.

VLAN-based routing
Adding IPv4 static routes
Supports adding and deleting static ARP entries
Configuring the ARP aging time

Advanced VLAN and port modes
The switch supports IEEE 802.1Q VLANs and Layer 3 VLAN interfaces, allowing the network to be segmented to separate departments, services or device types. It also supports Access, Trunk and Hybrid port modes, providing flexibility for different network architectures.

IEEE 802.1Q VLAN
Layer 3 VLAN interfaces
Access port mode
Trunk Port Mode
Hybrid Port Mode

Advanced Network Security
To strengthen infrastructure protection, the device incorporates security features designed to control access and mitigate threats. These include an ARP receive limit, unknown MAC address discard, DoS attack defense, and authentication via 802.1x and Radius.

ARP Receive Limit
Unknown MAC Address Discard
DoS Attack Defense
Security Authentication 802.1x
Radius Security Authentication

DHCP Server, Relay and Snooping
The switch includes DHCP functions that simplify IP address management within the network. In addition to the DHCP server, it supports DHCP relay, DHCP snooping and Option 82 policy configuration, providing greater control over network allocation.

DHCP server
DHCP Relay
DHCP Snooping
Option Policy Configuration 82

Link Aggregation for Greater Availability
Port aggregation support allows links to be combined to increase available bandwidth or improve redundancy between network devices. The device supports both static aggregation and dynamic LACP aggregation.

Static port aggregation
Dynamic LACP Aggregation
IEEE 802.3ad Compatible

Spanning Tree Protocols
To prevent network loops and improve infrastructure stability, this switch supports various spanning tree protocols. Support for STP, RSTP and MSTP allows the network to adapt to more complex topologies while maintaining secure operation.

IEEE 802.1d STP, Spanning Tree Protocol
IEEE 802.1w RSTP, Rapid Spanning Tree Protocol
IEEE 802.1s MSTP, Multiple Spanning Tree Protocol
Edge Port Support
BPDU Statistics

Multicast and Traffic Control
Support for IGMP Snooping V1/V2/V3 improves multicast traffic management by preventing packets from being unnecessarily propagated throughout the network. This feature is particularly useful in environments with video services, internal streaming or multicast applications.

Inquiry IGMP V1 / V2 / V3
Quick-release port support
Improved multicast traffic management

QoS for service prioritization
Quality of Service (QoS) features allow certain types of traffic to be prioritized to improve the experience in latency-sensitive applications. The switch supports different scheduling algorithms and trust modes based on 802.1p and DSCP.

SP, Strict Priority
SWRR, Simple Weighted Round Robin
WRR, Weighted Round Robin
802.1p port trust mode
DSCP port trust mode
Up to 8 quality-of-service queues

ACL and port mirroring
The device allows access control lists to be applied to enhance security and control the traffic permitted on the network. In addition, N:1 port mirroring facilitates monitoring and diagnostics using traffic analysis tools.

MAC ACL support
IP ACL support
Port mirroring N:1

Professional management and maintenance
This switch offers multiple management options, making it easy to integrate into professional networks. It can be managed via WEB, Telnet and SNMP, and also includes diagnostic tools such as Ping, Tracert and connection detection.

Telnet support
SUPPORT SNMP V1/V2/V3
WEB administration and maintenance
Support for Ping, Tracert and connection detection
CPU monitoring
Memory monitoring
Local display management

Updating and configuration
To facilitate equipment maintenance, the switch supports updates via FTP, TFTP and HTTP. It also allows configurations to be imported and exported, a practical feature for backups or deployments involving several similar devices.

FTP update
TFTP update
HTTP update
Configuration import
Configuration export

Electrical protection and energy efficiency
The device features 6 kV lightning protection on both ports and power supply, as well as ESD protection against air and contact discharges. Its low power consumption and energy-efficiency support make it suitable for continuous operation.

Port lightning protection: 6 kV
Power lightning protection: 6 kV
Air-discharge ESD: 10 kV
Contact-discharge ESD: 8 kV
Power consumption at full load : 19 W
Power consumption at no load : 9 W
Energy efficiency: supported

Compact design and flexible installation
With dimensions of 294.0 x 179.6 x 44.0 mm, the switch has a compact form factor for desktop or wall installations. It requires no fans, helping ensure quieter operation in offices or small equipment rooms.

Dimensions: 294.0 mm x 179.6 mm x 44.0 mm
Desktop mounting: compatible
Wall mounting: compatible
Rack mounting: not compatible
Number of Fans: N/A

LED indicators and power supply
The integrated LED indicators allow you to quickly check the device's connection, activity and power status. The universal power input makes it easy to use with different electrical installations.

1 link/activity LED indicator
1 power LED indicator
1 SIS LED indicator

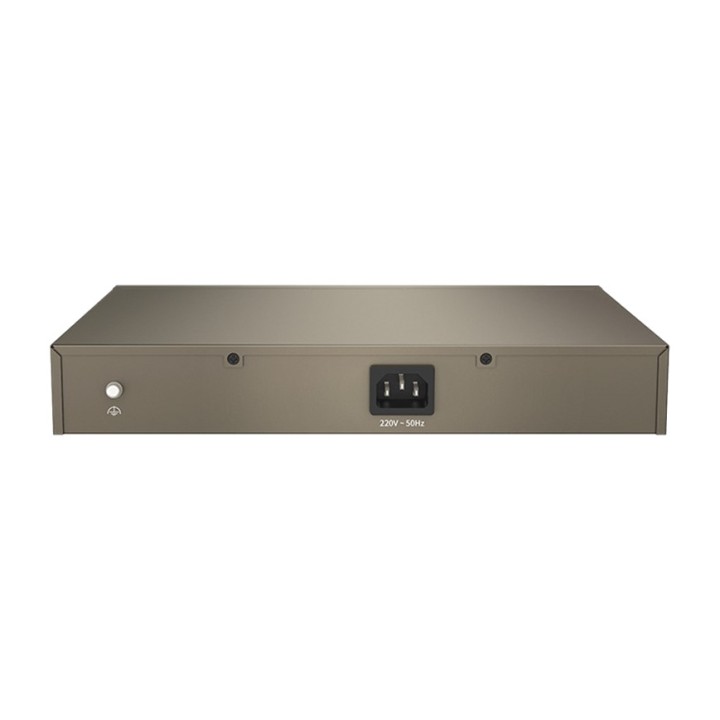

Input voltage: 100-240 V AC, 50/60 Hz

Other technical specifications

Network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
PoE power supply management: N/A
PoE budget: N/A
Operating temperature : 0 °C - 45 °C
Storage temperature : -40 °C - 70 °C
Certifications: FCC, CE, RoHS
Volume (m ³): 0.0103
