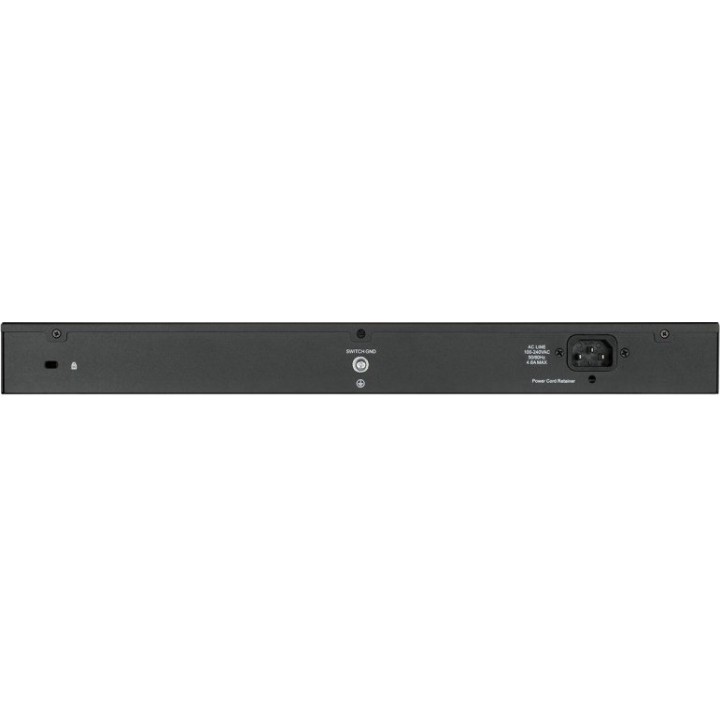

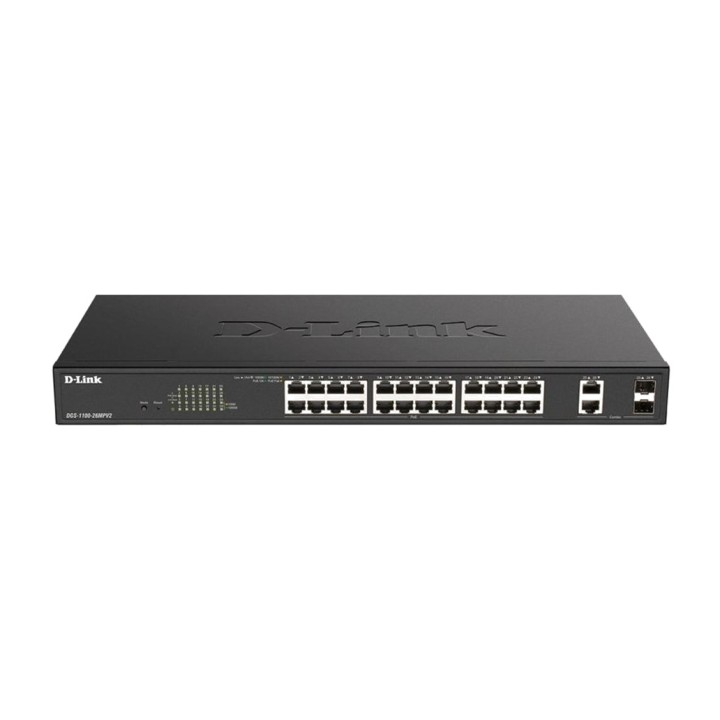

D-LINK 26-port PoE managed switch DGS-1100-26MPV2 DSP0000031206 images
Secure payment
Card, bank transfer and financing. SSL on every page.
Worldwide shipping
Stock available for shipping at competitive rates. Delivery times vary by region.
Personalized support
Call us at +34 948 088 505 or email us. We answer questions and help with your order.
D-LINK 26-port PoE managed switch DGS-1100-26MPV2 DSP0000031206
DeliveryEl plazo se calculará al elegir el transporteOrder within the next — to receive it approximately Tuesday 03 – Friday 06
Ships from Tudela
Cuándo es más probable que llegue
- Tuesday 0322%
- Wednesday 042%
- Thursday 0566%Más probable
- Friday 066%
- Más tarde4%
Calculado con 10067 entregas recientes
Fechas estimadas para España peninsular; se ajustarán con tu código postal y forma de entrega.
The date corresponds to the item with the longest delivery time
IVA intracomunitario
La exención intracomunitaria puede aplicarse a una entrega a otro Estado miembro si el NIF-IVA es válido y el destino cumple los requisitos. La comprobación por sí sola no determina el tratamiento fiscal.
Cómo se comprueba el IVA¿Eres profesional del sector?
Puedes solicitar una cuenta profesional e indicar los datos de tu actividad. La solicitud queda pendiente de revisión; puedes consultar su estado en tu cuenta.
Más información sobre cuentas profesionalesCanarias, Ceuta y Melilla sin IVA español
El tratamiento depende del destino de entrega y de la coherencia de la dirección. Pueden corresponder IGIC, IPSI, aranceles u otros cargos locales.
Más información sobre destinos e impuestosManaged
-SWITCH LAYER
L2
-OPTIMIZED FOR VIDEO SURVEILLANCE
Web interface optimized for surveillance
ONVIF support
Automatic surveillance VLAN
6 kV surge protection per port
-PORTS AND INTERFACES
Number of ports 10/100/1000BASE-TX: 24
Number of combo ports (RJ-45/SFP): 2
-CAPACITY AND PERFORMANCE
Switching capacity: 52 Gbps
Maximum forwarding rate: 38,69 Mpps
MAC table size: 16K entries
Packet buffer size: 1,5 Mbits
Flash Memory : 16 MB
MTBF: 269.291 hours
-Fueling
Power supply: Internal, universal 100 - 240 V AC, 50/60 Hz
Maximum power consumption: 370 W (with PoE enabled)
Heat dissipation: 1470,46 BTU/h
-PoE POWER SUPPLY
Number of PoE ports E+: 24
Total PoE budget: High (exact value not specified)
-VENTILATION
Number of Fans : 2
-DIMENSIONS AND WEIGHT
Dimensions: 440 x 285 x 44 mm
Weight: 3,81 kg
-ENVIRONMENTAL CONDITIONS
Operating temperature: -5 to 50 °C
Storage temperature: -40 to 70 °C
Operating humidity: 0% \~ 95% non-condensing
Storage humidity: 0% \~ 95% non-condensing
-CERTIFICATIONS
EMI/EMC: FCC, IC, CE, VCCI, RCM, BSMI
Safety: cUL, UL, GS, CB
-VLAN
Port-based VLAN
Tagged VLAN IEEE 802.1Q
Voice VLAN
Automatic surveillance VLAN
Management VLAN
Asymmetric VLAN
Supported VLAN groups: 128
Maximum VID: 4094
-L2 FUNCTIONS
Flow control IEEE 802.3x
HOL blocking prevention
Jumbo frames up to 9216 bytes
IGMP Snooping v1/v2/v3 (64 groups)
802.3ad link aggregation (13 groups, 8 ports/group)
SUPPORT G.8032 ERPS
Loop detection
LLDP
Port mirroring (One-to-One and Many-to-One)
Port statistics
Spanning Tree Protocol: 802.1D STP, 802.1w RSTP
-QOS
802.1p
4 queues per port
Queue handling: Strict, WRR
Per-port bandwidth control (min. ingress: 8 Kbps, egress: 64 Kbps)
-SECURITY
D-Link Safeguard
Traffic segmentation
Unicast/multicast/unknown storm control
DoS Attack Prevention
SSL support
-MANAGEMENT
Web-based GUI (IPv4/IPv 6)
Surveillance switching mode
D-Link Network Assistant
-GREEN TECHNOLOGY
Energy saving based on link status, LED/port shutdown, hibernation
IEEE 802.3az compatible
-MIB / RFC STANDARDS
Includes support for: RFC 768, 791, 792, 793, 826, 1213, 1493, 1907, 1215, 2233, 2665, 4363, 951, 1542, 2236, among others
Supported MIBs: MIB II, Bridge MIB, SNMPv2 MIB, 802.1p MIB, ZoneDefense MIB, private MIB
Volume (m ³): 0.0037
- Brand
- D-LINK
- Reference
- DSP0000031206
- EAN-13
- 790069467868
- Weight
- 5 kg
