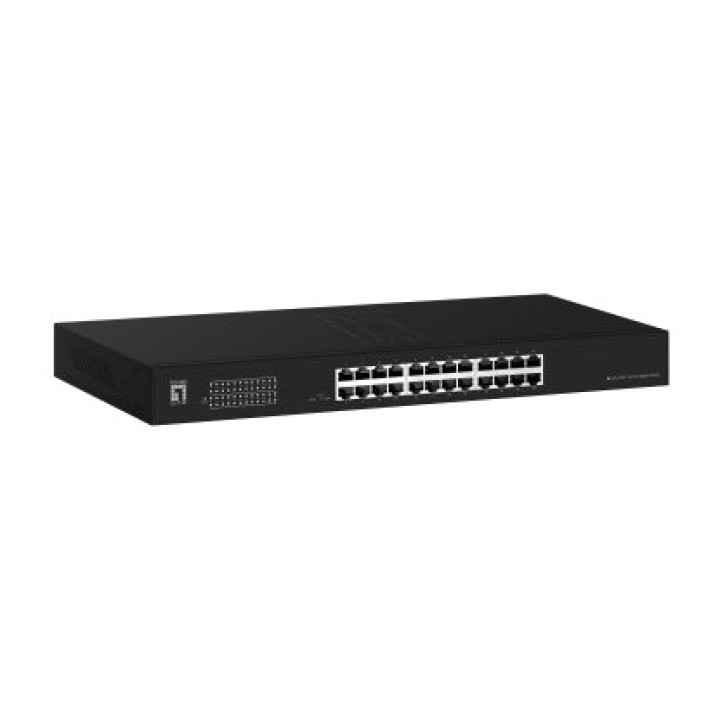

LEVELONE 24-port Gigabit unmanaged switch for 19-inch rack GEU-2431 DSP0000029093

Unmanaged network switch with 24 Gigabit ports

Level One GEU-2431

24 Gigabit Ethernet ports

10/100/1000 Mbps, full/half duplex, auto-negotiation, auto MDI/MDIX
9K jumbo frames to increase data transfer speeds
Supports automatic learning and automatic aging of MAC addresses from 8K
Supports 3 working modes to meet different applications

Gigabit speeds: Take your data to the next level

GEU-2431 is a 24-port Gigabit Ethernet switch that provides a seamless, high-performance, low-cost, easy-to-use upgrade to boost your network to 1000 Mbps. Increase your backbone speed to 48 Gbps and bring ultra-fast Gigabit connections to all your computers.

What happens when several users access multimedia applications at the same time? There is no need to worry, as GEU-2431 lets you move large files faster and more easily. Transfer your CGI, CAD, video or other large multimedia files across the network instantly and without delays.

Plug and Play, flexible and easy

GEU-2431 is plug-and-play, so no configuration is required. With automatic MDI/MDI-X cable detection on all ports, there is no need for crossover cables or uplink ports. Each port can be used as a general-purpose port or an uplink port, and any port can simply be connected to a server, hub, router or switch using a straight-through or crossover cable.

TECHNICAL DATA

Gigabit Ethernet data rate
PoE compatible No
Simultaneous ports Total 24
Fanless Yes
Manageable No
Commercial grade

Others
Approval and compliance CE / RoHS
Operating humidity 5% HR ~ 90% HR
Operating temperature -10 °C ~ 55 °C
Storage humidity 5% HR ~ 95% HR
Storage temperature -40 °C ~ 75 °C

PACKAGE CONTENT
· GEU-2431
· Power cable
· Rack mounting kit 19"
· Quick installation guide
· Declaration of conformity

general
COLOR BLACK
EAN 4015867228142
Model number GEU-2431

System specifications
Grade IP IP30
Backplane (Gbps) 48
DIP switch NOM (Normal Standard), VLAN (Port1-22 Isolation, Port23-24 Uplink), CENK (flow control mode)

Indicators
· Power
· Link/Activity/Speed

Jumbo frame (KB) 9 KB
Address Table MAC 8K
Mounting 19" rack mounting, desktop mounting
Packet buffer 40.32 Mpps
Power consumption 25W
Power supply 100-240 V AC, 50-60 Hz , 1 A
Power supply included Yes
Size of RAM 4.1 MB

STANDARD
· IEEE 802.3 10-BASE-T, Ethernet
· IEEE 802.3u 100-BASE-TX, Fast Ethernet
· IEEE 802.3ab 1000Base-T Gigabit Ethernet
· IEEE 802.3x flow control and backpressure

Physical Specifications
Dimensions (width x depth x height) 440 x 140 x 45 mm
Product weight (kg) 1.6
Volume (m ³): 0.0099
