FRITZ WiFi 7 router for fibre optic and DSL with Zigbee BOX 5690 PRO 2,5GBE DSP0000027255

FRITZ! BOX 5690 PRO WIFI 7 ROUTER 1X2.5GB WAN 4XGB L

NEW: FRITZ!Box 5690 Pro Edition International
The premium FRITZ!Box for fibre optic with Wi-Fi 7 and Zigbee

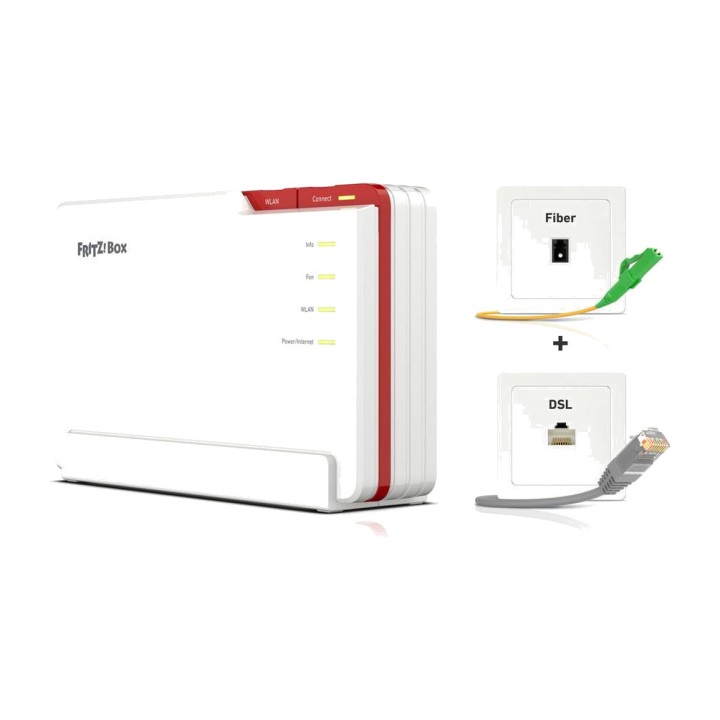

The FRITZ!Box 5690 Pro incorporates new communication standards. This high-end model can be connected to both a fibre-optic Internet connection (GPON and AON) and a DSL connection.
With Wi-Fi 7 integrated in the new 6 GHz frequency band, the FRITZ!Box 5690 Pro impresses with improved latency, speed and capacity, delivering maximum performance on the home network. The
integration of the Zigbee communication standard enables the use of many smart home applications related to energy efficiency, heating and lighting. Gigabit LAN ports, a 2.5 Gigabit LAN/WAN port
2.5 Gigabit, IP telephony, VPN, guest Wi-Fi access, firewall and USB 3.1 for storage media complete its features. The FRITZ!Box 5690 Pro represents the next level for
demanding broadband applications and is ready for real-time applications such as virtual reality, streaming, online gaming and cloud services.

The FRITZ!Box 5690 Pro offers complete flexibility for fibre optics. This new high-end model supports the most common fibre-optic connections and includes two SFP modules in the package for
the GPON and AON standards; it also has a 2.5 Gbps WAN port for use with an existing fibre-optic modem.

The FRITZ!Box 5690 Pro offers Wi-Fi 7 with Multi-Gigabit speeds over a fibre-optic connection. The 6 GHz band provides channel widths of up to 320 MHz, enabling very high data throughput
on the Wi-Fi network. Combined with low latency, this enables fast wireless communication, even for future real-time applications. Current applications benefit
from faster connections, even over long distances and with many mobile devices connected simultaneously. Connections are now even more robust thanks to the mechanisms integrated into
Wi-Fi 7, as areas with potential interference can be detected and excluded from communication. This provides even more stable conditions for wireless communication.

Across the three frequency bands of 2.4 GHz, 5 GHz and the new 6 GHz band, the FRITZ!Box 5690 Pro can transmit data at speeds of up to approximately 18.5 Gbps. The FRITZ!Box 5690 Pro
makes full use of the advantages of Wi-Fi 7 in the 5 and 6 GHz bands.

The FRITZ!Box 5690 Pro makes it easy to integrate Zigbee and DECT ULE LED bulbs from various manufacturers into the FRITZ!Box smart home and control them via the FRITZ!App. The smart plugs
FRITZ!DECT 200 and 210 are controlled via the FRITZ!Box. Integration of Matter, the new IP-based smart home standard, is in preparation. This means that smart home apps from other manufacturers can
control FRITZ! smart products centrally from their apps.

FRITZ!Box 5690 Pro overview

Connection/network
Powerful router with Wi-Fi 7 for fibre-optic and DSL connections
Supports GPON fibre-optic standards up to 2.5 Gbps, as well as AON up to 1 Gbps
Supports DSL with supervectoring 35b up to 300 Mbps
Connection to the fibre-optic modem

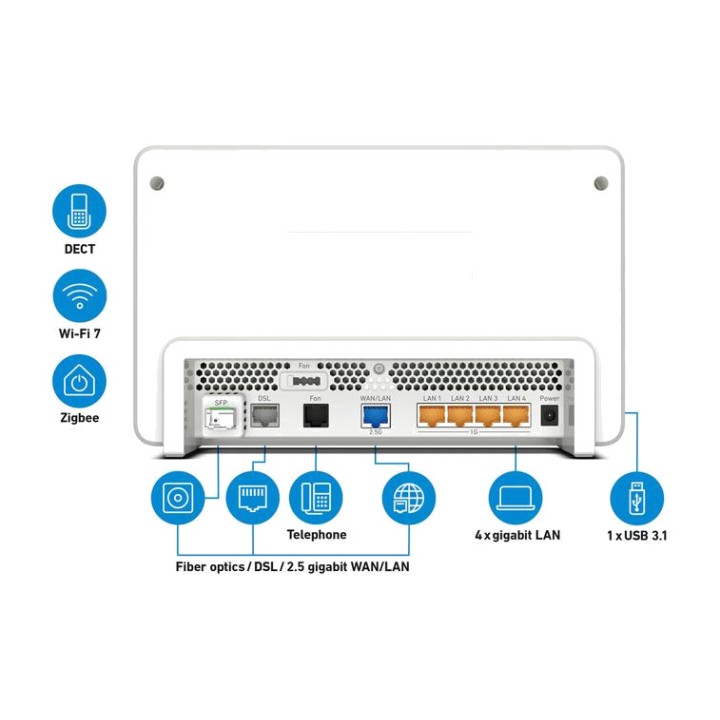

1 2.5 Gigabit WAN/-LAN port and 4 Gigabit LAN ports
Ideal for streaming video and television over the Internet
Easy setup via the web interface using a PC, smartphone or tablet
Comprehensive parental controls
MyFRITZ!: secure access to the FRITZ!Box from anywhere
Secure remote access over the Internet with VPN (IPSec and WireGuard)
Security assistant with diagnostic tool and automatic updates

WI-FI
Wi-Fi 7 / Wi-Fi 6E / Wi-Fi 6
6 GHz up to 11.5 Gbps
5 GHz up to 5.7 Gbps
2.4 GHz up to 1.2 Gbps
Wi-Fi access point 4x4
Wi-Fi Mesh: easily combine several FRITZ! products to create an intelligent Wi-Fi system that extends the local network
Compatible with Wi-Fi standards: IEEE 802.11a/g/n/ac/ax/be
Wi-Fi encryption with WPA3/WPA2
WPS (Wi-Fi Protected Setup)
You can switch the Wi-Fi network on or off using the switch, connected phones or the timer function
Guest Wi-Fi access: maximum security for your friends and visitors

Smart home/multimedia
Smart home functions for energy, heating and lighting, among others (Zigbee/DECT ULE)
Integrates LED bulbs and other devices via Zigbee
The FRITZ!App Smart Home app will be the remote control for your FRITZ! smart home
1 USB port for printers and storage devices on the network (USB 3.1)
FRITZ!NAS: shared storage for all data on the local network
The media server distributes music, images or videos on the home network (DLNA/UpnP AV)
Also compatible with online storage, Internet radio and podcasts

TELEPHONY
PBX for IP-based connections
Integrated DECT base station for up to 6 cordless phones
Port for an analogue phone, fax machine or answering machine
5 integrated answering machines with Voice-to-Mail
Local or online management of address book contacts (Google or Apple, among others)
Fax function with "Fax-to-mail"
Call list, call blocking, speed dial, call forwarding
Option to connect IP phones (LAN/Wi-Fi) according to the SIP standard
FRITZ!App Fon for iOS (Apple) and Android (Google)

PACKAGE CONTENT
FRITZ!Box 5690 Pro
4 m fibre-optic cable (LC/APC-LC/APC)
4 m DSL cable
1.5 m LAN cable
A power supply
1 FRITZ!SFP AON
1 FRITZ!SFP GPON
Quick guide in German, English, French, Italian, Dutch and, of course, Spanish
Service card (FRITZ! Notes)

Product information
Product name: FRITZ!Box 5690 Pro Edition International
AVM article number: 20003058
Ean: 4023125030581
FRITZ!Box weight: 1103 g
Dimensions (W x H x D): 268 x (75 with, 60 without stand) x 165 mm
Total product weight: 1489 g
Box dimensions (W x H x D): 370 x 99 x 212 mm
Volume (m ³): 0.0080
