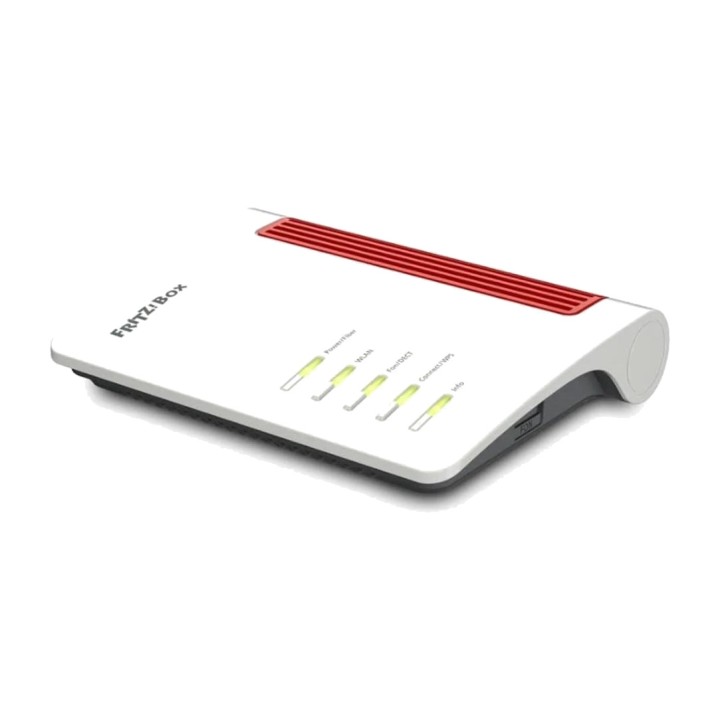

FRITZ WiFi 6 fibre optic router BOX 5530 FIBER DSP0000026099

FRITZ BOX 5530 FIBER EDITION WIFI ROUTER

The power of fiber optics with fast Wi-Fi 6
The FRITZ!Box 5530 Fiber offers the full functionality of the FRITZ!Box with a fiber-optic connection. Thanks to its interchangeable modules, the FRITZ!Box 5530 can be used very flexibly
on all common fiber-optic connections; no ONT or additional modem is required.
To distribute the wireless signal securely at Gigabit speed, the FRITZ!Box 5530 is equipped with Wi-Fi 6. One 2.5 Gigabit LAN connection and two Gigabit LAN connections complete this device
high-speed.

Works with any connection, thanks to the interchangeable fiber-optic transceiver
AON, GPON, XGS-PON are the most widely used connection types in the fiber-optic market. The FRITZ!Box 5530 offers a modular system for network access via fiber optics, which is
ready for the three most common connection types, AON, GPON and XGS-PON. The appropriate SFP modules are included in the package, depending on the product edition.

Innovative Wi-Fi 6 for a local network with many Wi-Fi devices
The Wi-Fi 6 standard takes into account the constantly increasing number of Wi-Fi devices. From smartphones, tablets, computers, 4K TVs and speakers to smart lamps,
more and more devices are being used simultaneously on the wireless network. By reducing latency, Wi-Fi 6 ensures fast and stable data flow. With a total bandwidth of 2 400 Mbps in the
5 GHz band and 600 Mbps in the 2.4 GHz band, it allows many applications to be used simultaneously. Wi-Fi 6 is only activated when data is being transferred, ensuring longer battery life for
mobile devices on the local network.
Powerful Wi-Fi Mesh base
As the base of the Wi-Fi Mesh network, the FRITZ!Box 5530 Fiber is ready to meet the highest demands of the local network. With Wi-Fi Mesh, distributed Wi-Fi nodes (for example, the FRITZ!Box and several
FRITZ!Repeaters) are combined into a single intelligent Mesh wireless network. The FRITZ!Box 5530 Fiber is the central unit of the FRITZ!Mesh network and actively controls all access points, so
that the Wi-Fi devices used on the local network are always connected to the access point with the best connection (Wi-Fi Mesh Steering).
Telephony options for every need
The integrated VoIP PBX has a connection for an analog telephone and a DECT base station for registering up to six cordless phones (for example, all FRITZ!Fon models). Via
Wi-Fi, IP phones and smartphones can also be used as extensions. With an integrated answering machine, local and online phone books, as well as numerous features
With comfort, no wish goes unfulfilled in telephony, even in a professional environment. The FRITZ!Box also controls smart home devices such as smart plugs via DECT
FRITZ!DECT 200 and 210.

FRITZ!Box 5530 Fiber overview

For the most common fibre-optic connections
Wi-Fi router for fibre-optic connections via FRITZ!SFP
Secure browsing with firewall enabled by default
Secure remote access to the local or company network via VPN

More performance, flexibility and the most stable connections with modern Wi-Fi 6.
Wi-Fi up to 3 Gbps: 5 GHz: 2 400 Mbps and 2.4 GHz: 600 Mbps
Thanks to multi-antenna technology (MIMO), you can enjoy an optimal connection to several wireless devices used simultaneously.
Wi-Fi security encryption according to the WPA3 standard, individual password enabled by default.
Guest access to the wireless network, maximum security for your guests thanks to OWE encryption
Easy and secure connection of new Wi-Fi devices to the local network at the touch of a button (WPS).

VoIP telephone system with a wide range of features for telephones (analogue, DECT and IP).
DECT base station for registering up to 6 cordless phones (for example, all FRITZ!Fon models) and home automation applications.
Five integrated answering machines with remote access and optional forwarding via email.
Manage multiple phone books; you can also integrate contact lists from an online provider, for example, Google or Apple.
Fax sending and receiving function.
Option to switch off DECT transmission in standby mode (DECT Eco).


User interface in the following languages: DE, EN, FR, IT, NL, ES, PL, where you can adjust all settings
With MyFRITZ!, you can securely access your FRITZ!Box and network storage device from anywhere in the world
Parental controls with various filters, for example, to limit Internet access by time, block certain websites or file-sharing platforms
Apps such as FRITZ!App Fon, FRITZ!App WLAN or FRITZ!App Smart Home add even more convenience
Convenient and secure assignment of guest access (Wi-Fi and LAN)
New features available at all times through regular updates, with the option of always staying up to date using automatic updates
Energy saving by scheduling the wireless network to switch off and adjusting LAN network power ("Green Mode")

2.5 Gigabit LAN port (IEEE 802.3bz standard, NBase-T).
2 fast Gigabit LAN ports for computers, televisions and other network devices.
1 analogue telephone connection.
Integrated SFP slot with FRITZ!SFP module inserted

Note: this FRITZ!Box has no USB port

Overview of the two editions of FRITZ!Box 5530 Fiber

AVM FRITZ!Box 5530 Fiber International Edition
Product information
AVM article number: 20003003
Ean: 4023125030031
FRITZ!Box weight: 513 g
Dimensions (W x D x H): 150 X 208 X 37 mm
Total product weight: 718 g
Box dimensions (W x D x H): 183 X 260 X 68 mm
Manufacturer's warranty: 5 years

PACKAGE CONTENT
FRITZ!Box 5530 Fiber International Edition
FRITZ!SFP AON and FRITZ!SFP GPON
A power supply
1.5 m LAN cable
Quick installation guide

AVM FRITZ!Box 5530 Fiber XGS-PON Edition
PRODUCT INFORMATION
AVM article number: 20002959
Ean: 4023125029592
FRITZ!Box weight: 510 g
Dimensions (W x D x H): 150 X 208 X 37 mm
Total product weight: 690 g
Box dimensions (W x D x H): 183 X 260 X 68 mm
Manufacturer's warranty: 5 years

PACKAGE CONTENT
FRITZ!Box 5530 Fiber XGS-PON Edition
FRITZ!SFP XGS-PON
A power supply
1.5 m LAN cable
Quick installation guide

Wireless LAN features
Wi-Fi band: Dual band (2.4 GHz / 5 GHz)
Wi-Fi standard: Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max.): 3000 Mbit/s
WLAN data transfer rate (first band): 600 Mbit/s
WLAN data transfer rate (second band): 2400 Mbit/s

Connection
Ethernet LAN interface type: 2.5 Gigabit Ethernet
Media server: Yes

Ports and Interfaces
Number of ports RJ-11: 1

Management features
Web-based administration: Yes
WPS push-button security: Yes
Intelligent Mesh technology: Yes
MU-MIMO technology: No
MIMO: Yes

SECURITY
Supported security algorithms: WPA3
Firewall: Yes
Guest access: Yes

Protocols
DHCP, client: Yes
DHCP, server: Yes
Universal Plug and Play (UPnP): Yes

Design
Product type: desktop router
Product colour: White
Wall mounting: Yes
Indicator light: Yes
LED indicators: Power, WLAN, WPS

Package contents
Quick installation guide: Yes
Package contents: FRITZ!Box 5530 Fiber Edition International, FRITZ!SFP AON, FRITZ!SFP GPON, 1.5-metre LAN cable, power supply, quick guide in DE, FR, IT, EN, NL, ES

Antenna
Antenna design: Internal

WEIGHT AND DIMENSIONS
Width: 208 mm
Depth: 150 mm
HEIGHT: 37MM
Weight: 513 g

Packaging
Package width: 260 mm
Package depth: 68 mm
Package height: 183 mm
Package weight: 718 g
Volume (m ³): 0.0034
