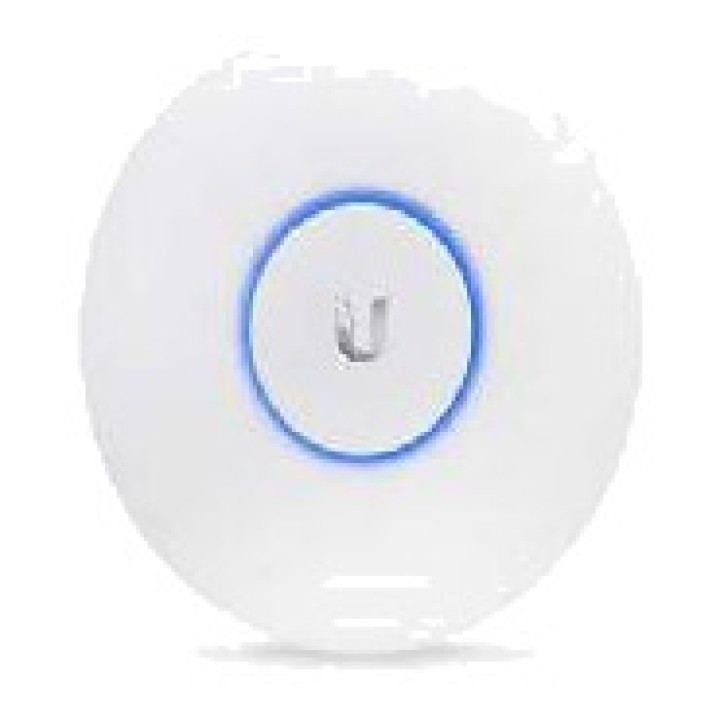

UBIQUITI High-density Wi-Fi 5 access point UNIFI AC-HD WAVE-2-MU-MIMO UAP-AC-HD

802.11AC Wave 2 MU-MIMO (Multi-User, Multiple Input, Multiple Output)

The 802.11AC Wave 1 SU-MIMO technology implemented in the previous generation
made it possible to communicate with a single client at a time. The
802.11AC Wave 2 MU-MIMO (Multi-User, Multiple Input, Multiple
Output) technology enables communication with multiple clients simultaneously, which
translates into a significant increase in bandwidth and in the
general experience. Under the same circumstances with MU-MIMO, the
Wave 2 devices provide an improvement of up to 75% compared with a
Wave 1 device. This improvement makes it possible to increase performance and/or
support more clients with the same performance.


Hardware Features

Use the new UniFi AC HD APs in high-density environments where
maximum wireless performance is required. The UniFi AC HD AP features
simultaneous dual-band, 4x4 MU-MIMO and compatibility with the PoE standard
802.3at.

easy assembly

Its elegant design blends easily into any environment (accessories
included) and is compatible with the existing mounting accessories for
the UAP-AC-PRO. The dual Gigabit Ethernet port supports port aggregation
(LACP).

UniFi System

UniFi is a scalable WiFi solution for businesses, easy to deploy and
manage. The access point has an elegant design and can be easily mounted
on a ceiling tile or on the wall using the included mounting
hardware. It is powered via the included Ethernet adapter,
which allows power and data to be supplied through a single cable.

The UniFi WiFi system includes powerful control software. The software is
installed on any PC on the network and is easily accessible through
any web browser. Using the Unifi control software, the business Wi-Fi network
can be configured and managed without any
special training. Advanced features such as real-time device status monitoring,
automatic detection of Unifi devices,
uploading the equipment location map and security options
are seamlessly integrated.
Save time and money.

Unlike enterprise Wi-Fi systems that require hardware
additional, UniFi offers client/server mode at no cost
and without the need for additional hardware.
Intuitive Software

Install, configure, and manage all your UniFi Access Points through the
intuitive and easy-to-use UniFi user interface.

The 802.11AC Wave 1 SU-MIMO technology implemented in the previous generation
made it possible to communicate with a single client at a time. The
802.11AC Wave 2 MU-MIMO (Multi-User, Multiple Input, Multiple
Output) technology enables communication with multiple clients simultaneously, which
which translates into a significant increase in bandwidth and in the
general experience. Under the same circumstances with MU-MIMO, the
Wave 2 devices provide an improvement of up to 75% compared with a
Wave 1 device. This improvement makes it possible to increase performance and/or
support more clients with the same performance.

Characteristic

•Dimensions 220 x 220 x 48.1 mm (8.66 x 8.66 x 1.89")
•Weight 700g (830 with mounting kit)
•Interface (2) 10/100/1000 Ethernet ports (LACP compatible)
•Reset buttons
•Power system Passive Power over Ethernet (48V), 802.3at. Supported voltage
range 44 ~ 57VDC
•Wi-Fi standards 802.11 a / b / g / n / ac / ac-wave2
•Max. power consumption 17W
•BSSID up to four per radio
Antennas 2@2.4GHz (3dBi), 2@5GHz (5dBi)
•Wireless security WEP, WPA-PSK, WPA-TKIP,
•WPA2 AES, 802.11i
•Certifications CE, FCC, IC
•Wall / ceiling mounting (included)
•Operating temperature -10 to 70 C
•Operating humidity 5 - 95% non-condensing
•Advanced traffic control
•802.1Q VLAN
•Advanced QoS per user
•Guest traffic isolation
•Simultaneous clients +500
Volume (m ³): 0.0081
