UBIQUITI Outdoor directional radio antenna POWERBEAM-AC 5GHZ 27DBI 500MM PBE-5AC-500

Ubiquiti Networks UBIQUITI PBE-5AC-500 PowerBeam 5AC, 500mm

Using airMAX ac technology, the PowerBeam supports up to 450 Mbps real throughput
TCP/IP. It has an antenna that provides 27 dBi of gain and operates in the range
of 5150 5875 MHz. It features an Atheros MIPS
74KC at 720 MHz and 128MB of RAM, as well as 8 MB of storage.
It also has a Gigabit Ethernet port 10/100/1000.

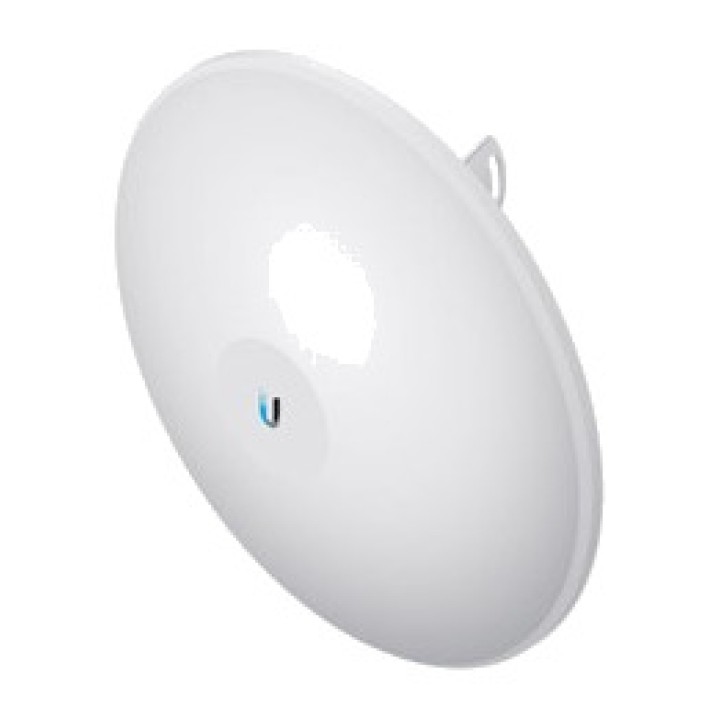

The dish-type reflector is 500 mm and, unlike the PowerBeam M5-400 and
M2-400, includes a protective radome to shield the radio from the elements.
Improved Noise Immunity

The PowerBeam ac directs RF energy into a more precise beamwidth.
By directing the energy in one direction, the PowerBeam ac blocks or spatially filters
noise, thereby improving immunity. This
feature is especially important in an area filled with other
RF signals at similar or identical frequencies.
Full-frame design

Ubiquiti's InnerFeed technology integrates the radio interface into the
antenna, so no cables are needed. This improves performance, since
eliminates cable losses.

Provides higher performance due to a faster processor and its
innovative mechanical design at a low cost, the PowerBeam ac is
extremely versatile and cost-effective to deploy.
airMAX ac Technology Included

Unlike the standard Wi-Fi protocol, the Time Division Multiple Access protocol
(TDMA) from Ubiquiti
allows each client to send and receive data using a scheme of
pre-assigned time slots scheduled by a controller
software.

These time slots will eliminate hidden-node collisions and
maximize efficiency. This means it will provide better
latency and scalability performance compared with any other
outdoor system in its class.

The kit includes everything needed for easy installation.

Characteristic

CPUs

Atheros MIPS 74KC 560 MHz

RAM MEMORY

128 MB DDR2

Storage Memory

8 MB

Ethernet

One Gigabit Ethernet port 10/100/1000 Mbit/s

Operating frequency

5150 - 5875 MHz

Antenna gain

27 dBi

Rx Sensitivity

-96 dBm

LEDs

Power LED, LAN LED, 4 WLAN LEDs

ENERGY

24V, 0.5A GigE PoE

Dimensions and

WEIGHT

520x520x308 mm. 2.35 Kg. (Radome Excluded)

525x525x315 mm. 3.15 Kg. (Radome Included)

Maximum Power Consumption

8.5 W

Operating temperature

-40 °C a 70 °C

OPERATING SYSTEM

air OS 7
Volume (m ³): 0.0762
