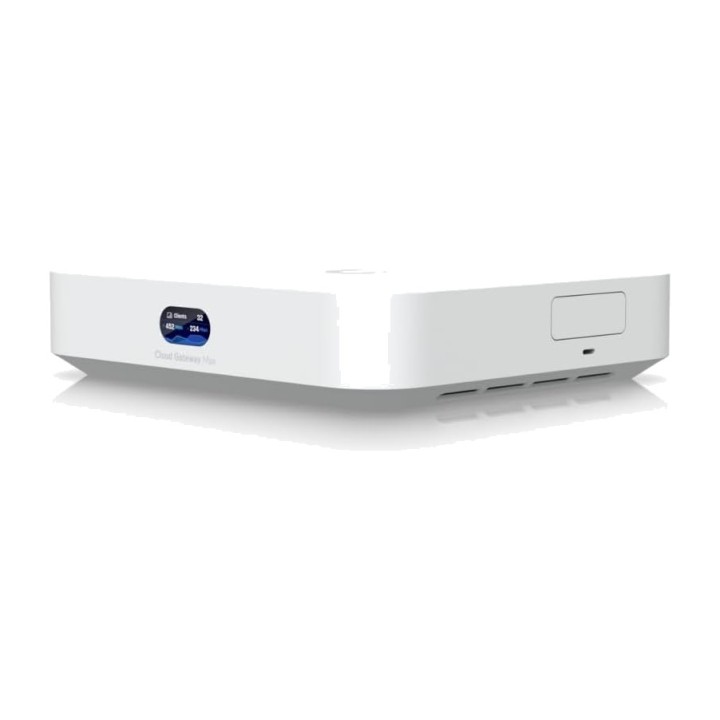

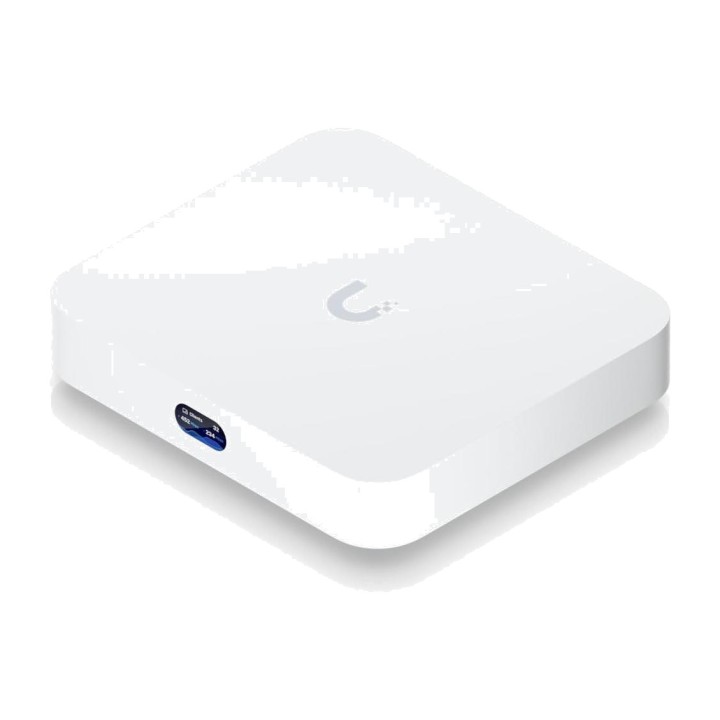

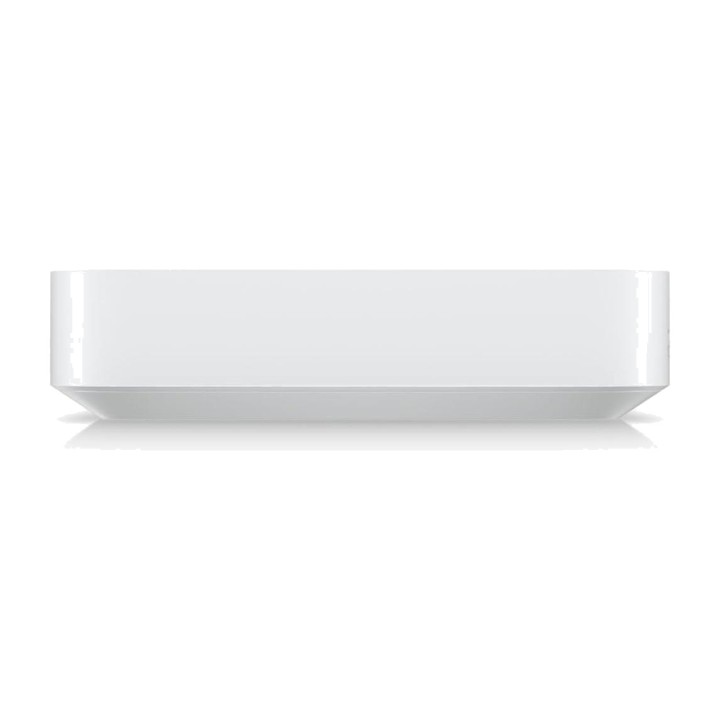

UBIQUITI Desktop network gateway UNIFI CLOUD-GATEWAY ULTRA MGS0000028693

-DIMENSIONS AND WEIGHT
141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
Weight: 520 g (1.1 lb)
Format: Compact desktop
-CONSTRUCTION AND DESIGN
Chassis material: Polycarbonate

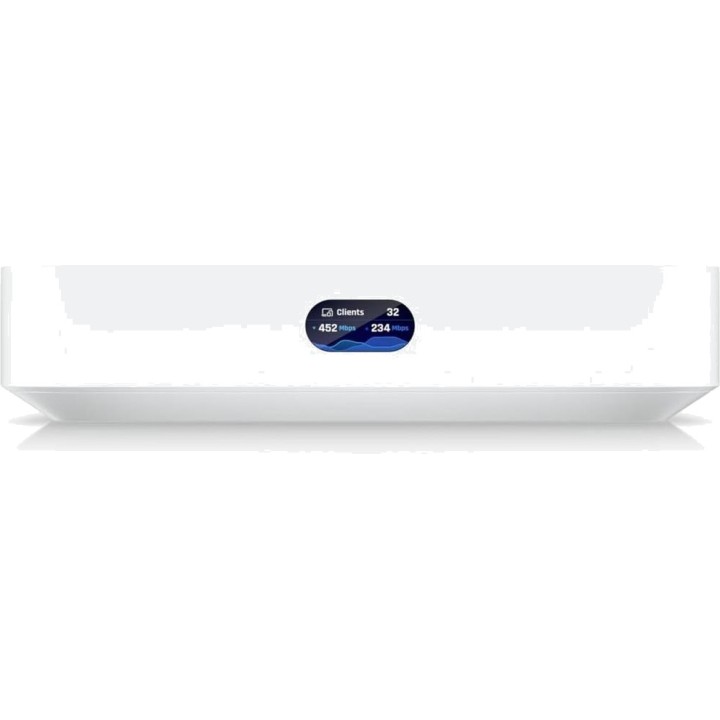

Display: Status display of 0.96”
-Fueling
Maximum consumption: 6.2W
Power method: USB Type C (5V DC/3A)
Power supply: USB Type-C adapter included
Supported voltage range : 100–240V AC
-PROCESSOR AND MEMORY
Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
MEMORY RAM: 3 GB
Internal storage : 16 GB
-CONNECTIVITY AND PORTS
Default WAN ports:
(1) 2.5 Gb E RJ45

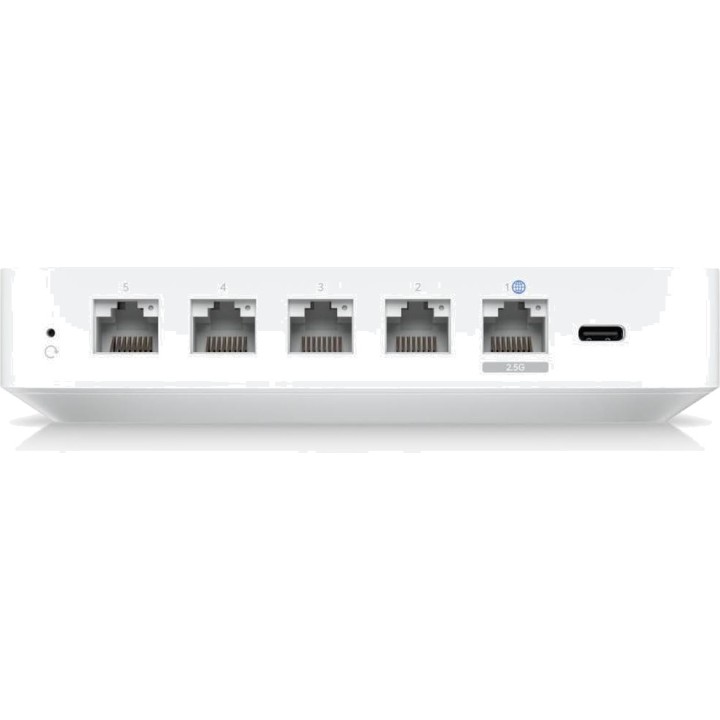

Port layout:
4 1 Gb ports E RJ45 (1G/100M/10M)
1 2.5 Gb port E RJ45 (2.5G/1G/100M/10M)
Maximum number of ports WAN: 4
-PERFORMANCE
Managed UniFi devices: 30+
Simultaneously connected users: 300+
IDS/IPS throughput: 1 Gbps
MAC address table: up to 2,000 entries
-FIREWALL AND SECURITY
Stateful firewall
Layer 7 firewall with application awareness
Traffic identification and DPI
Zone-based firewall with advanced filtering by region, domain, and application
Content filtering
Intrusion prevention and detection (IPS/IDS)
Ad blocking
Over 55,000 IDS/IPS signatures with CyberSecure
Traffic segmentation by VLAN/subnet
-VPN AND REMOTE CONNECTIVITY
Site-to-Site VPN: Site Magic, IPsec, OpenVPN
VPN Server: One-Click VPN, Teleport, WireGuard, Open VPN, L2TP
VPN Client: WireGuard, OpenVPN
-ADVANCED FEATURES
Multi-WAN load balancing
OSPF dynamic routing
Advanced QoS
Multicast DNS (mDNS)
Advanced NAT (SNAT, DNAT, masquerading, NAT Pooling , NAT 1:1)
Integrated RADIUS server
Support for RADIUS over TLS (RadSec)
UniFi LTE backup for failover
Internet quality and outage reports
Policy-based WAN and VPN routing
Customizable DHCP server
IPv6 ISP compatibility
IGMP Proxy
-COMPATIBILITY WITH UNIFI APPLICATIONS
Compatible with UniFi Network
-MANAGEMENT AND MONITORING
Management via Ethernet and Bluetooth
LED indicators: Ethernet
Physical factory reset button
-ENVIRONMENTAL CONDITIONS
Operating temperature: -10 to 40 °C
Operating humidity: 5 to 95% non-condensing
-COMPLIANCE AND CERTIFICATIONS
NDAA compliant
Certifications: CE, FCC, IC, Anatel, SRRC
-APPLICATION REQUIREMENTS
UniFi mobile app compatible with:
iOS™: version 10.12.0 or later
Android™: version 10.11.2 or later
Volume (m ³): 0.0023
