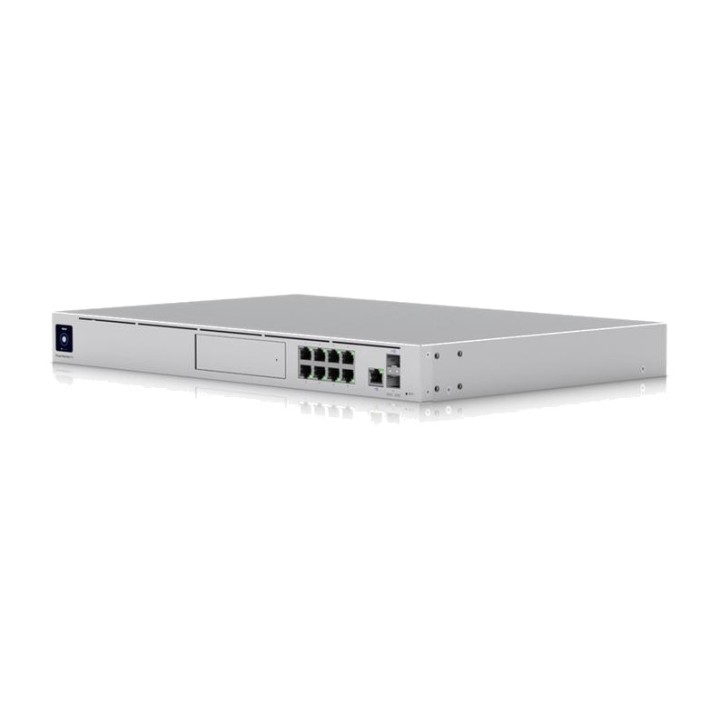

UBIQUITI 11-port rack security gateway UNIFI DREAM-MACHINE PRO MGS0000028688

-DIMENSIONS AND WEIGHT
442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Weight: 3.9 kg (8.6 lb)
Format: Rack (1U)
-CONSTRUCTION AND DESIGN
Chassis material: CNC aluminum and SGCC steel
Bracket material: SGCC steel
Display: Touchscreen LCM of 1.3"
-Fueling
Maximum consumption: 33W
Power supply method:
1 universal AC input (100–240V, 50/60 Hz)
1 USP-RPS DC input
Power supply: Internal AC/DC of 50W
Supported voltage range : 100–240V AC
Redundancy: Backup power supply with DC power and Shadow mode (VRRP)
-PROCESSOR AND MEMORY
Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz
MEMORY RAM: 4 GB
Internal storage : 16 GB
-CONNECTIVITY AND PORTS
Default WAN ports:
(1) 10G SFP+
(1) 1 Gb E RJ45

Port layout:
9 1 Gb ports E RJ45 (1G/100M/10M)
2 ports 10G SFP+ (10G/1G)
Maximum number of ports WAN: 8
-PERFORMANCE
Managed UniFi devices: 100+
Managed cameras: up to 24 HD, 14 2K, 8 4K
Simultaneously connected users: 1.000+
IDS/IPS throughput: 3.5 Gbps
MAC address table: up to 4,000 entries
-VIDEO STORAGE (NVR)
Hard drive bay : 1 x 3.5" HDD NVR
-FIREWALL AND SECURITY
Stateful firewall
Layer 7 firewall with application awareness
Traffic identification and DPI
Zone-based firewall with advanced filtering by region, domain, and application
Content filtering
Intrusion prevention and detection (IPS/IDS)
Ad blocking
Over 55,000 IDS/IPS signatures with CyberSecure
Traffic segmentation by VLAN/subnet
-VPN AND REMOTE CONNECTIVITY
Site-to-Site VPN: Site Magic, IPsec, OpenVPN
VPN Server: One-Click VPN, Teleport, WireGuard, Open VPN, L2TP
VPN Client: WireGuard, OpenVPN
-ADVANCED FEATURES
Multi-WAN load balancing
High availability with Shadow Mode (VRRP)
OSPF and BGP dynamic routing
Advanced QoS
Multicast DNS (mDNS)
Advanced NAT (SNAT, DNAT, masquerading, NAT Pooling , NAT 1:1)
Integrated RADIUS server
Support for RADIUS over TLS (RadSec)
UniFi LTE backup for failover
Internet quality and outage reports
Policy-based WAN and VPN routing
Customizable DHCP server
IPv6 ISP compatibility
IGMP Proxy
-COMPATIBILITY WITH UNIFI APPLICATIONS
Compatible with UniFi Network, Protect, Access, Talk and Connect
-MANAGEMENT AND MONITORING
Management via Ethernet and Bluetooth
LED indicators: Ethernet, SFP+, RPS, PSU, HDD
Physical factory reset button
-ENVIRONMENTAL CONDITIONS
Operating temperature: -10 to 40 °C
Operating humidity: 5 to 95% non-condensing
ESD/EMP protection: Air ±15kV, Contact ±8kV
-COMPLIANCE AND CERTIFICATIONS
NDAA compliant
Certifications: CE, FCC, IC, Anatel, SRRC
Volume (m ³): 0.0056
