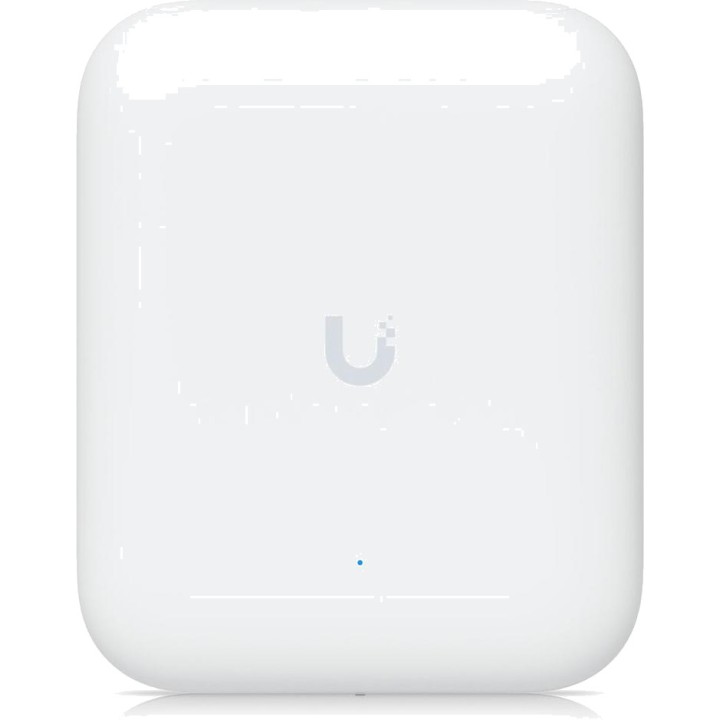

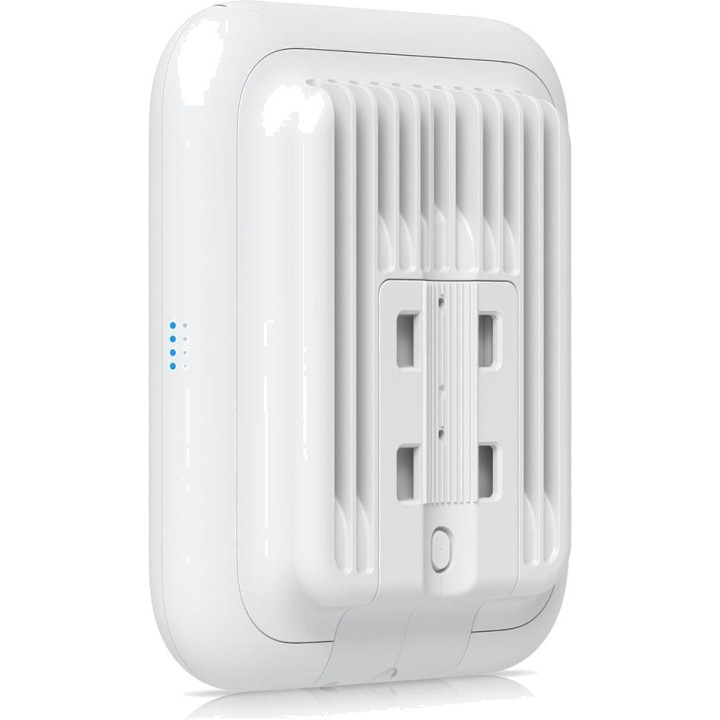

UBIQUITI Outdoor Wi-Fi 7 access point UNIFI U7-OUTDOOR MGS0000022683

Technical specifications
MECHANIC
Dimensions 170 x 208 x 54,5 mm (6,7 x 8,2 x 2,1")
Weight 1,2 kg (2,6 pounds)
Enclosure material UV-stabilized polycarbonate, aluminum alloy
Mounting material Polycarbonate, SGCC steel
Pole mount diameter 2560 mm (12,36") at the outer diameter of the tube
Wind survival capacity 74,6 N at 200 km/h (16,8 lbf at 125 mph)
Waterproofing IPX6
Hardware

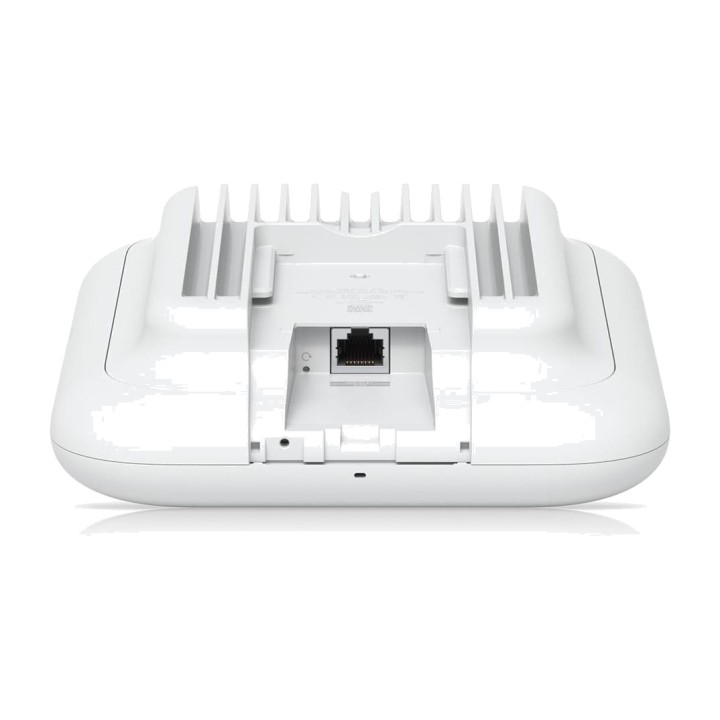

Network interface (1) 1/2.5 GbE RJ45 port
Ethernet management interface
Power method PoE+
Power supply UniFi PoE Switch
Supported voltage range 42,557 V CC
Max. power consumption 19W
Max. TX power
2,4 GHz
5GHz
6GHz
23dBm
26 dBm

MIMO
2,4 GHz
5GHz
6GHz
2x2
2x2

Throughput rate
2,4 GHz
5GHz
6GHz
688Mbps
4324Mbps

Antenna gain
2,4 GHz
5GHz
6GHz
Internal directional: 8 dBi / External omni: 3 dBi
Internal directional: 12,5 dBi / External omni: 4 dBi

Antenna beamwidth
2,4 GHz
5GHz
6GHz
90
45

Antennas (1) Internal directional antenna
(2) External omnidirectional antennas
(2) RP-SMA connectors for external antenna
LEDs (1) Power: white/blue
(4) Mesh signal: blue
Factory reset button
Mounting Wall, ceiling, pole (included)
Operating ambient temperature -30 to 60 C (-22 to 140 F)
Operating ambient humidity 5 to 95% non-condensing
Certifications CE, FCC, IC
SOFTWARE
WiFi standards 802.11a/b/g/n/ac/ax/be
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS rate limiting per user
Guest traffic isolation Supported
Simultaneous clients 200+
Supported data rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11b 1, 2, 5,5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6) 7,3 Mbps to 2,4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7) 7,3 Mbps to 4,3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
Volume (m ³): 0.0064
